Lock Cylinder

Lock Cylinder

• Always follow the instructions in the Repair Information exactly when disconnecting and connecting the battery. Refer to battery in engine compartment => [ Battery, Disconnecting and Connecting ] Service and Repair or battery in luggage compartment => [ Battery, Disconnecting and Connecting ] Service and Repair.

• Steering lock may be destroyed.

• If steering lock is operated without lock cylinder, it locks and must be replaced.

• Steering lock must not be operated without lock cylinder.

Removing

- Disconnect the battery. Refer to battery in engine compartment => [ Battery, Disconnecting and Connecting ] Service and Repair or battery in luggage compartment => [ Battery, Disconnecting and Connecting ] Service and Repair.

- Remove the steering column trim.

• The Anti-Theft Immobilizer Reading Coil (D2) is attached to the lock cylinder and cannot be replaced separately.

• To improve clarity, the ignition key is not shown in the following illustrations.

• The hole can be located opposite 180° as shown in the illustration. This does not affect removing and installing.

- Insert ignition key into lock cylinder and turn into position "Drive".

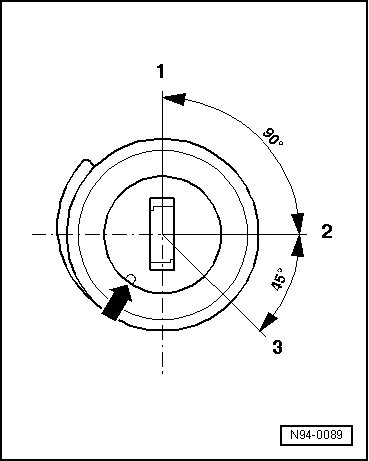

Lock cylinder key positions





1. Position Off

2. Position Run

3. Position Start

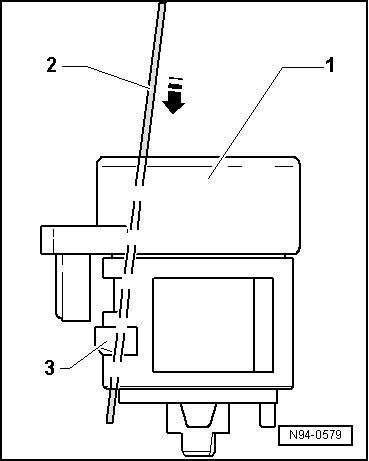

• For reasons of clarity, the following illustration depicts lock cylinder as removed and without ignition key.






- Insert steel wire (1.2 mm diameter) into hole next to ignition key - arrow -.

- Release the lever - 3 - on the lock cylinder - 1 - with steel wire - 2 - - arrow -.

- Remove the lock cylinder - 1 - from the steering lock housing.

- Disconnect the connector - arrow - from the anti-theft immobilizer reader coil (D2).






Installing






• To improve clarity, the ignition key is not shown in the following illustration.

- Insert ignition key into lock cylinder - 1 - and turn it to the "Drive" position.

- Unlock the lever - 3 - with steel wire - 2 - - arrow -.

- Insert the lock cylinder - 1 - into the steering lock housing.

• The Anti-Theft Immobilizer Reading Coil connection must be inserted into the guide on the steering lock housing.

- Remove the steel wire - 2 - from the lock cylinder - 1 - and then make sure the lock cylinder fit securely in the steering lock housing.

- Connect the connector to the anti-theft immobilizer reading coil.

Further installation is done in reverse order of removal.
