Map Light Bulb: Service and Repair

Reading Lamp Bulbs, With Sunroof

• Lamp replacement is performed in the same way at both map/reading lights.

• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( trim removal wedge (3409) , screwdriver) will be positioned using commercially available adhesive tape.

Removing

- Remove the front interior lamp. Refer to => [ Front Interior Lamp (W1), Without Sunroof ] Front Interior Lamp (W1), Without Sunroof.

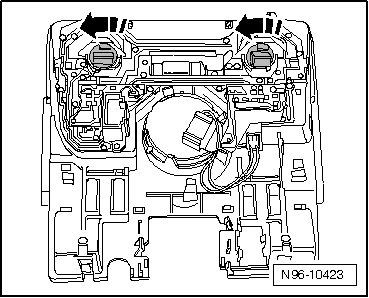

- Turn the bulb socket in - direction of arrow - and remove it.

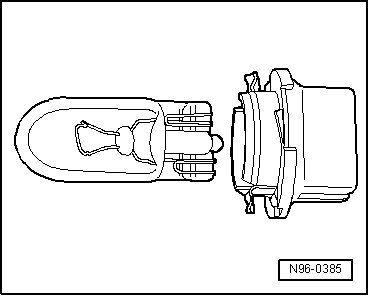

- Remove the bulb from the socket.






- Wedge-base bulb: 12V, 5W

Installing

Install in reverse order of removal.
