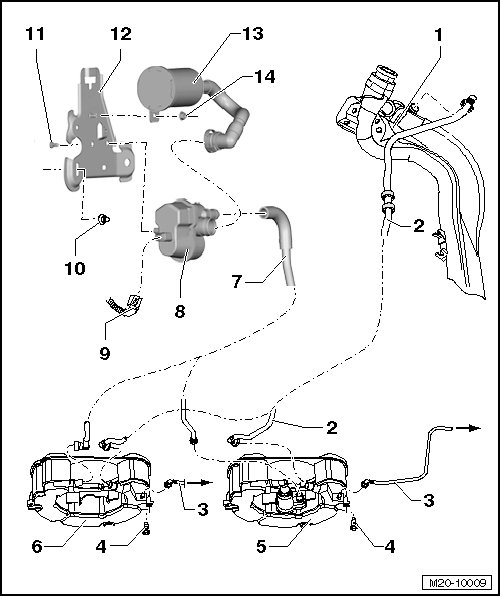

EVAP System Component Overview

EVAP System Component Overview






1 Fuel Tank

2 Vent Line

• Behind the right rear wheel housing liner.

• Push in the securing ring to disconnect.

3 Vent Line

• To the EVAP canister purge regulator valve 1 (N80) at the intake manifold.

• Push in the securing ring to disconnect.

4 Bolt

• 8 Nm

5 Evaporative Emission (EVAP) Canister

• For engine code CBUA.

• Installed location: Under the floor panel on the right rear side.

• Removing and installing, refer to => [ EVAP Canister ] Service and Repair.

6 EVAP Canister

• For engine code CBTA.

• Installed location: Under the floor panel on the right rear side.

• Removing and installing, refer to => [ EVAP Canister ] Service and Repair.

7 Connecting Line

• From the leak detection pump to the EVAP canister.

8 Leak Detection Pump (V144)

• Installed location: Under the right rear wheel housing liner.

• Removing and installing, refer to => [ Leak Detection Pump (V144) ] Service and Repair.

9 Connector

• Black, 4-pin

10 Nut

• 6 Nm

11 Bolt

• 3 Nm

12 Bracket

• For the leak detection pump

• Secured inside the right rear wheel housing.

13 Air Filter Housing

• For the leak detection pump.

14 Nut

• 2 Nm
