In Center Console

In Center Console

Special tools, testers and auxiliary items required

• Radio Removal Tool (T10057)

Removal


• Turn off the ignition and all electrical consumers.

• Remove the key.

- Remove any units connected to the multimedia system control module.

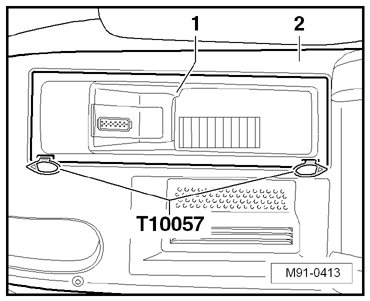

- Push the (T10057) into the slots on the left and right sides of the multimedia system control module - 1 - until they click into place.






- Pull the multimedia system control module - 1 - upward and out of the center console - 2 - using the (T10057).

- Unlock and disconnect the connector - A - - arrow -.






- Press the clips on the multimedia system control module and remove the (T10057) at the same time.

Installation

Install in reverse order of removal.
