Engine Lubrication

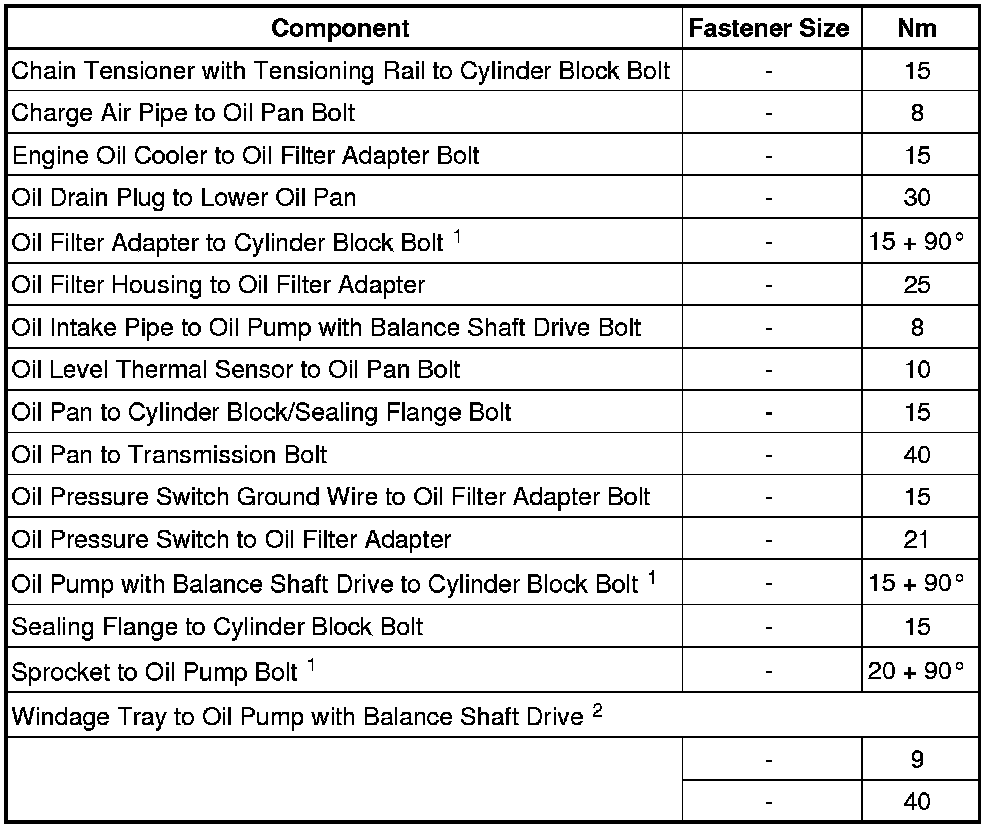

Fastener Tightening Specifications






• 1 Always replace

• 2 For bolt clarification, refer to - items 6 and 8 - in the => [ Oil Pump and Balance Shaft Drive ] Service and Repair
