Engine Assembly - Fastener Tightening Specifications

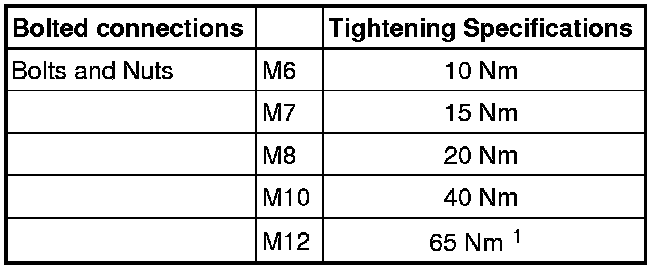

Fastener Tightening Specifications






• 1 M12 collar bolt tightening specification: 75 Nm

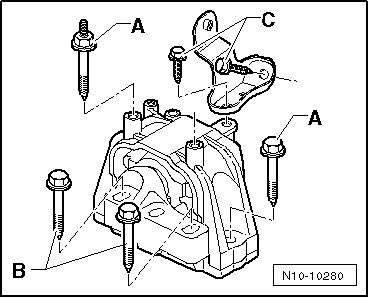

Engine Mount Bolt Tightening Specification





A = 40 Nm + an additional 90° (1/4) turn. (Note 1)

B = 60 Nm + an additional 90° (1/4) turn. (Note 1)

C = 20 Nm + an additional 90° (1/4) turn. (Note 1)

Transmission Mount Bolt Tightening Specification





1 = 40 Nm + an additional 90° (1/4) turn. (Note 1)

2 = 60 Nm + an additional 90° (1/4) turn. (Note 1)

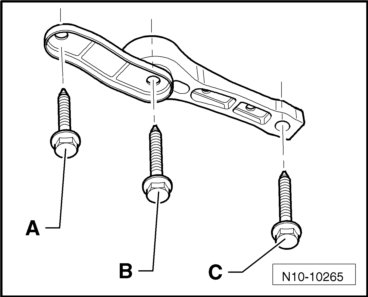

Pendulum Support Bolt Tightening Specification





A = 40 Nm + an additional 90° (1/4) turn. (Note 1)

B = 60 Nm + an additional 90° (1/4) turn. (Note 1)

C = 100 Nm + an additional 90° (1/4) turn. (Note 1)

• (Note 1) Always replace
