Engine Assembly - Fastener Tightening Specifications

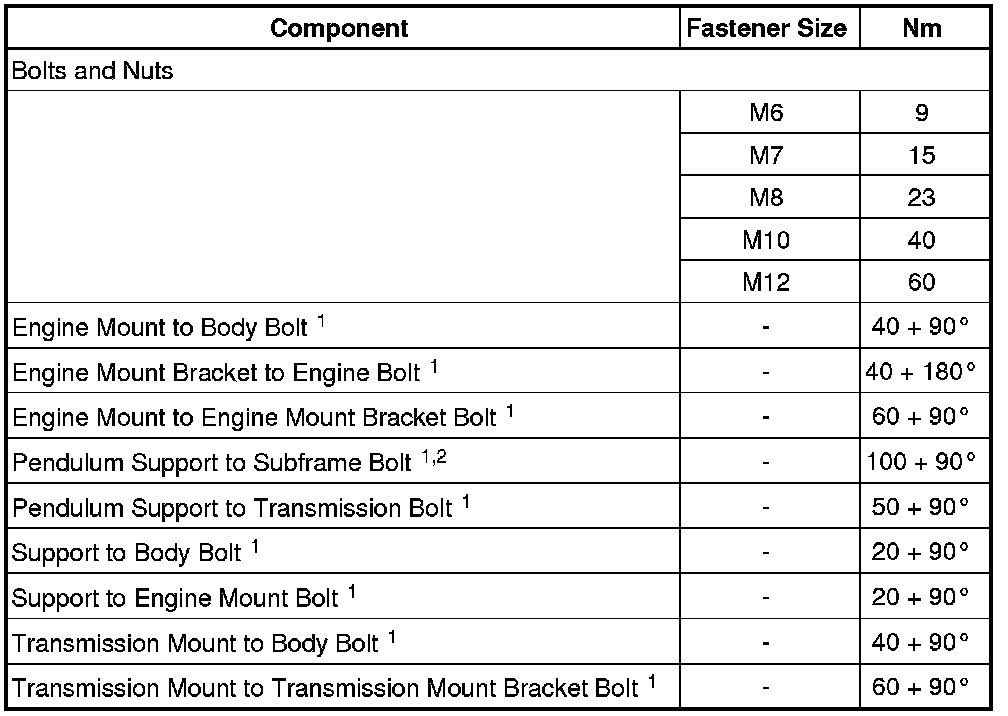

Fastener Tightening Specifications






• 1 Always replace

• 2 First, install the pendulum support bolt to the transmission and then the bolts to the subframe.
