Rear Lid Motor Control Module Components Assembly Overview

Rear Lid

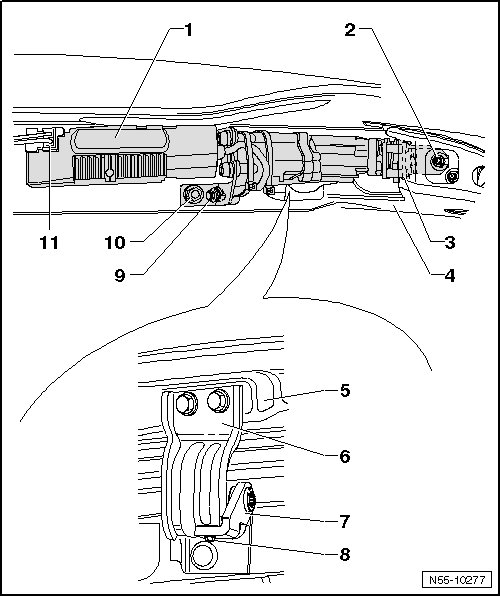

Rear Lid Motor Control Module Components Assembly Overview





1 Rear Lid Control Module Motor

2 Nut

• Tightening specification: 22 Nm

3 Seal

4 Roof Crossmember

5 Rear Lid

6 Hinge

7 Angle

• The movement of the motor is transferred to the hinge

8 Bolt

• Tightening specification: 7 Nm

9 Bolt

• Component of motor in rear lid control module

10 Bolt

• Tightening specification: 22 Nm

11 Connector
