Front Axle Camber, Adjusting

Front Axle Camber, Adjusting

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1332)

If values are outside tolerance, transverse inclination must be checked first and compensated if necessary => [ Vehicle Transverse Inclination Neutral Position ] Wheel Alignment, Preparing to Measure.

Only by moving the subframe is it possible to center the camber within specified range.

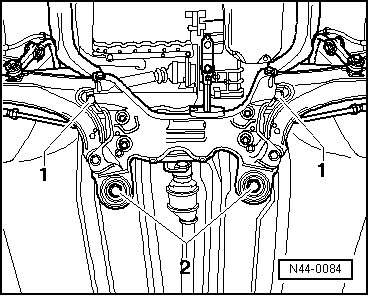

- Loosen bolts - 1 - and - 2 -.





- Slide subframe far enough until camber is equal on both sides.

- Check caster angle.

Caster angle may be changed by sliding subframe!

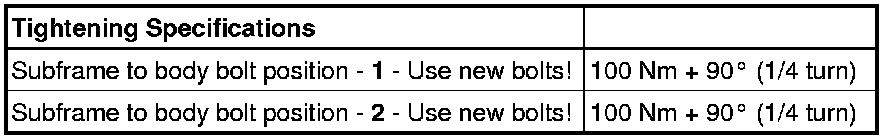

- Tighten subframe with new bolts.
