Front Subframe Mount: Service and Repair

Subframe Bonded Rubber Bushings

Special tools, testers and auxiliary items required

• Thrust plate (VW 402)

• Punch (VW 408 A)

• Vibration damper bracket (3256)

• Guide bearing inst. tool (3347)

It is only possible to remove and install bonded rubber bushings with subframe removed, removing subframe => [ Subframe ] Subframe.

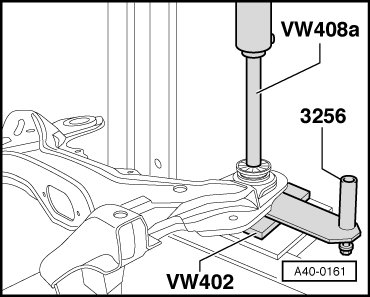

Pressing Out Bonded Rubber Bushing

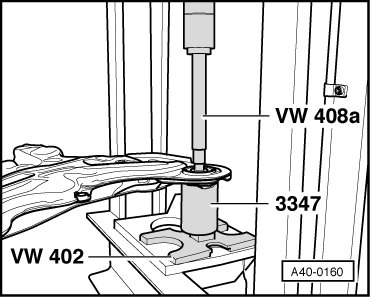

Pressing In Bonded Rubber Bushing





• To press in the bonded rubber bushings use, for example, sliding oil (G 294 421 A1)
