Cellular Telephone Operating Electronics Control Module

Telephone System

Cellular Telephone Operating Electronics Control Module (J412)

CAUTION!
Prior to working on the electrical system:

• Obtain the radio system anti-theft code.

• Switch off all electrical consumers.

• Switch off the ignition and remove the ignition key.

• Disconnect the battery.

The cellular telephone operating electronics control module is located under the center console in the area of the parking brake lever.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove center console.

- Disconnect electrical connector.

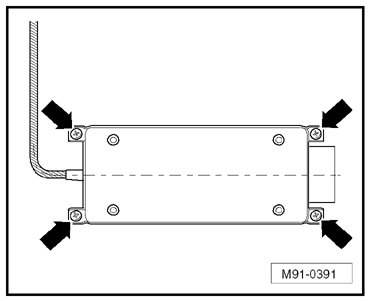

- Remove the screws - arrows - from the cellular telephone operating electronics control module.





- Remove the cellular telephone operating electronics control module with the wire connection.

Installing

Install in reverse order.

Tightening Specifications: 1.5 Nm.
