Body Control Systems: Locations

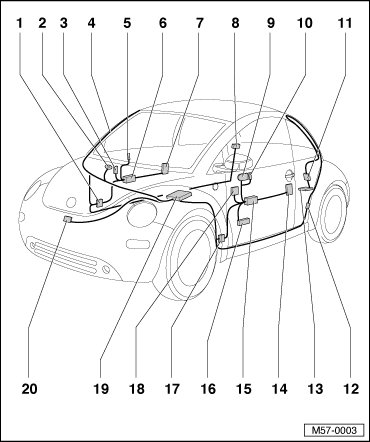

Central Locking System and Comfort System Assembly Overview
1 Coupling Station
• Component location: Lower A-pillar, covered by footwell trim.
- Remove lower A-pillar trim.
2 Alarm Signal Horn
• Component location: On right, behind plenum chamber sealing cover
• Removing:
- Remove plenum chamber sealing cover. Refer to => [ Plenum Chamber Cover ] Service and Repair
3 Right Front Window Regulator Switch
• Only for comfort system
4 Remote Control Antenna
• Under A-pillar trim
5 Front Passenger Interior Locking Button
6 Right Front Door Control Module
• Only for comfort system
• Integrated in window regulator motor
• Removing:
- Remove door trim.
- Remove window regulator motor.
7 Right Front Door Lock
• Door lock is secured to subframe
• Electrical central locking system is integrated in door lock module
• Removing:
- Remove door trim.
- Remove door lock. Refer to => [ Door Lock ] Front Door, convertible => [ Door Lock, Convertible ] Front Door.
8 Fuel Tank Lid Unlock Motor (V155)
• Component location: under C-pillar trim
• Removing, refer to => [ Tank Lid Release Motor ] Service and Repair
9 Exterior Mirror Adjustment Switch and Selector Switch
10 Driver Interior Locking Button
11 Rear Lid Remote Release Motor
• Bolted to carrier
• Micro switch for lock cylinder is also located on carrier
• Rear Lid Remote Release Motor (V151) can only be removed in conjunction with carrier
• Removing and installing, refer to => [ Rear Lid Remote Release Motor Carrier ] Rear Lid
12 Coupling Station
• Component location: In area of left-hand side of luggage compartment
• Not on Convertible
13 Hood Lock
• Bolted onto lid
• Removing:
- Remove rear lid trim.
- Remove lid lock, refer to => [ Rear Lid Lock, Convertible ] Rear Lid, convertible => [ Rear Lid Lock, Convertible ] Rear Lid.
14 Left Front Door Lock
• Door lock is secured to subframe
• Electrical central locking system is integrated in door lock module
• Removing:
- Remove door trim.
- Remove door lock, refer to=> [ Door Lock ] Front Door, convertible => [ Door Lock, Convertible ] Front Door.
15 Left Front Door Control Module
• Only for comfort system
• Integrated in window regulator motor
• Removing:
- Remove door trim.
- Remove window regulator motor.
16 Operating Unit
• With switch for fuel flap release/rear lid release
• Installed in door trim
• Removing:
- Remove door trim.
17 Coupling Station
• Component location: Lower A-pillar, covered by footwell trim.
- Remove lower A-pillar trim.
18 Window Regulator Switch
• Only for comfort system
19 Central Control Module
• Bolted on under instrument cluster with bracket at steering column
• To remove, trim under steering column must be removed beforehand.
20 Hood Lock
• Contact switch for ATWS
• Component location: in lock carrier
• Removing lid lock. Refer to => [ Hood Lock ] Hood
