Transmission Position Sensor/Switch: Service and Repair

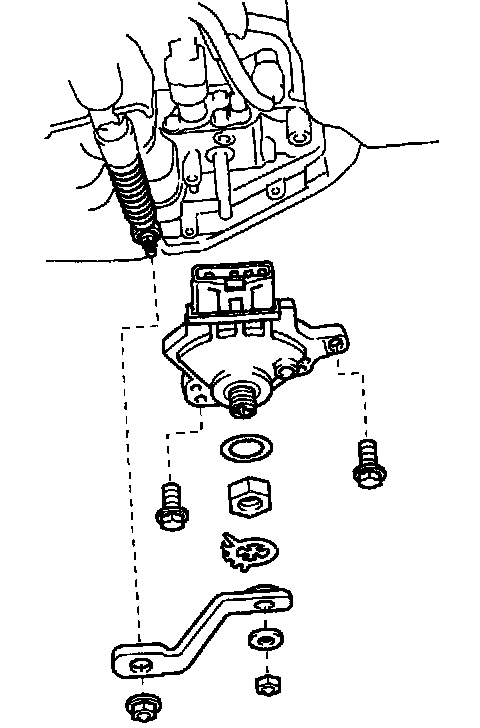

ON-VEHICLE REPAIR1. REMOVE CONTROL SHAFT LEVER
a. Remove the nut and control cable.
b. Remove the nut, washer and control shaft lever.
2. DISCONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR
3. REMOVE PARK/NEUTRAL POSITION SWITCH
a. Pry off the lock washer and remove the nut.
b. Remove the 2 bolts and park/neutral position switch.
4. INSTALL PARK/NEUTRAL POSITION SWITCH
a. Install the park/neutral position switch with 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
b. Install a new lock plate and the nut.
Torque: 6.9 Nm (70 kgf-cm, 61 inch lbs.)
c. Bend claws on the lock plate to fix the nut.
d. Adjust the park/neutral position switch.
5. CONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR
6. INSTALL CONTROL SHAFT LEVER
a. Install the control shaft lever, washer and nut.
Torque: 13 Nm (130 kgf-cm, 9 ft. lbs.)
b. Install the control cable and nut.
Torque: 15 Nm (150 kgf-cm, 11 ft. lbs.)
