Supra Liftback L6-2997cc 3.0L DOHC MFI Twin-Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Electronic Brake Control Module
Electronic Brake Control Module

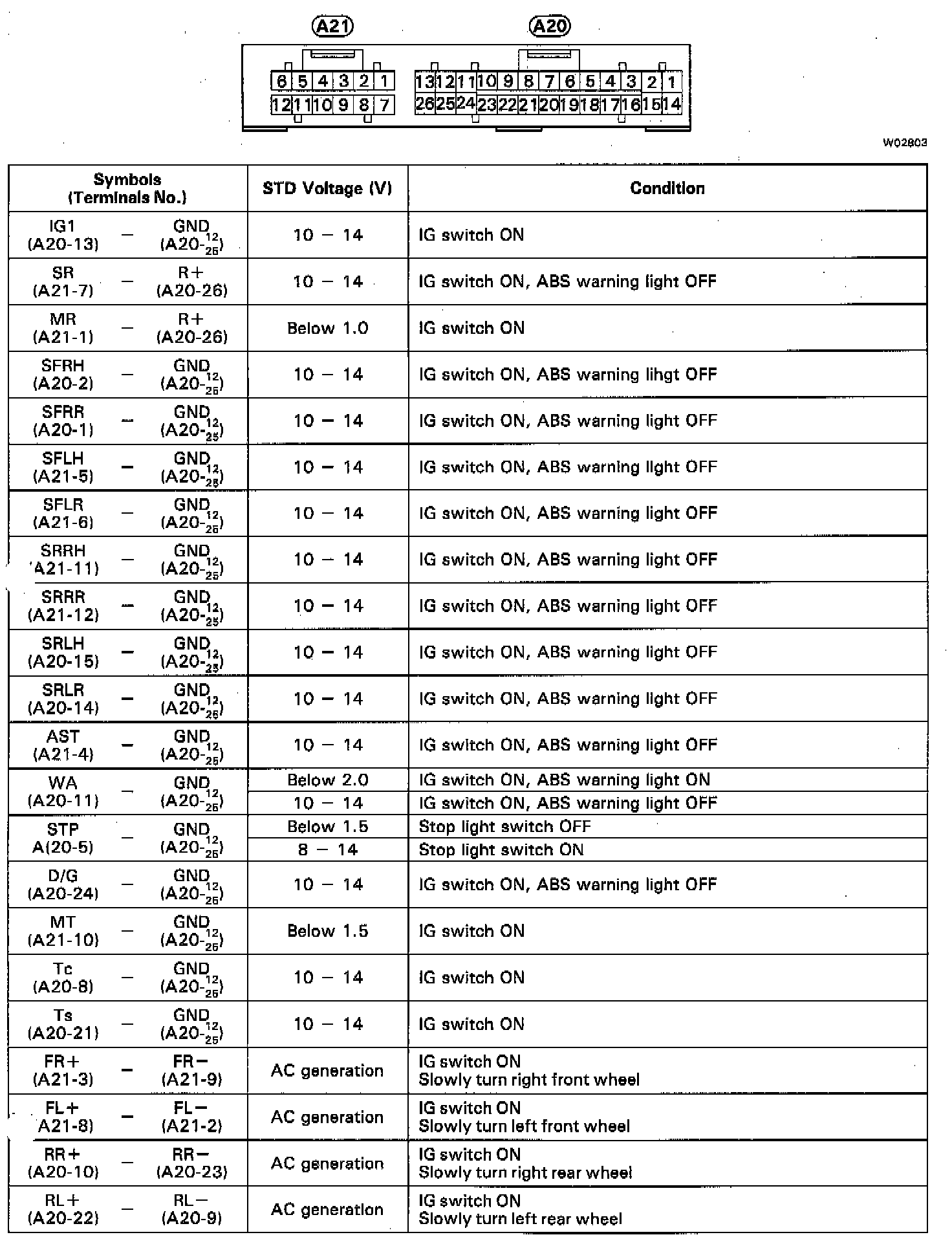

ECU Terminals & Standard Values (Part 1 Of 2):

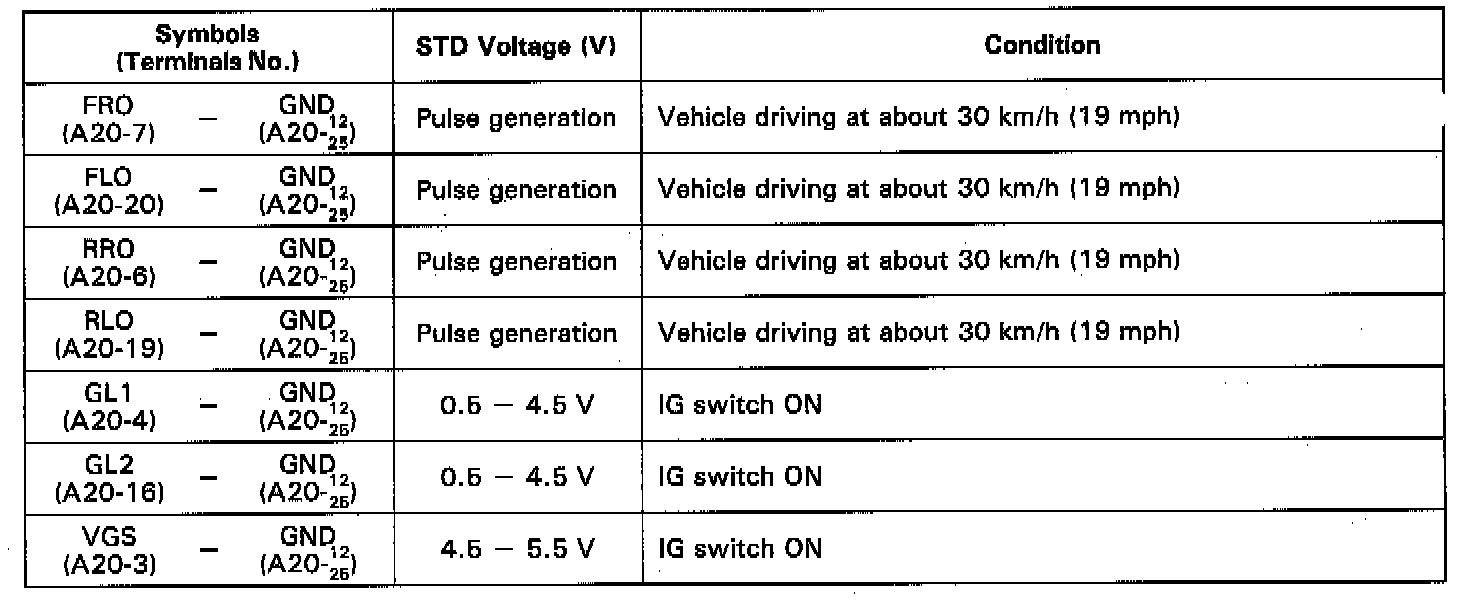

ECU Terminals & Standard Values (Part 2 Of 2):
