Throttle Position Sensor Inspection

Throttle Position Sensor





1. INSPECT THROTTLE POSITION SENSOR

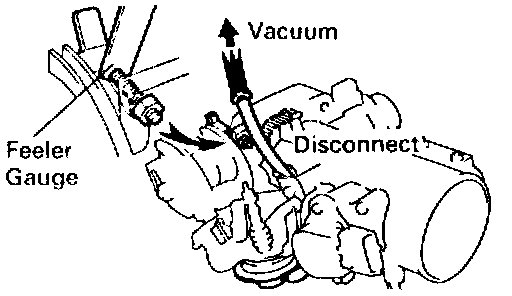

(a) Disconnect the throttle opener vacuum hose from the throttle body.
(b) Apply vacuum to the throttle opener.
(c) Insert a 0.54 mm (0.021 in.) or 0.70 mm (0.028 in.) feeler gauge between the throttle stop screw and stop lever.

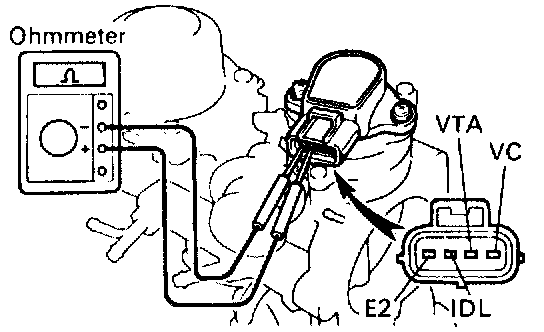

Ohmmeter Connection:

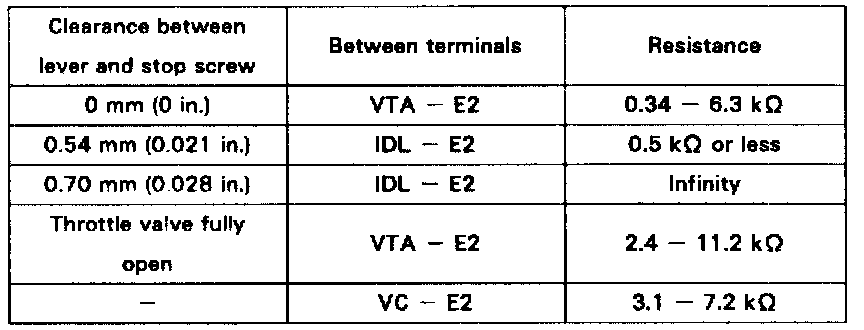

Reference:

(d) Using an ohmmeter, measure the resistance between each terminal.
2. IF NECESSARY, ADJUST THROTTLE POSITION SENSOR

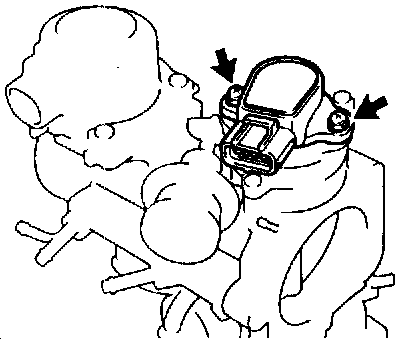

(a) Loosen the 2 set screws of the sensor.

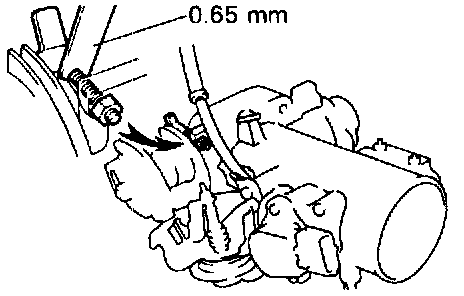

(b) Insert a 0.65 mm (0.026 in.) feeler gauge between the throttle stop screw and stop lever.

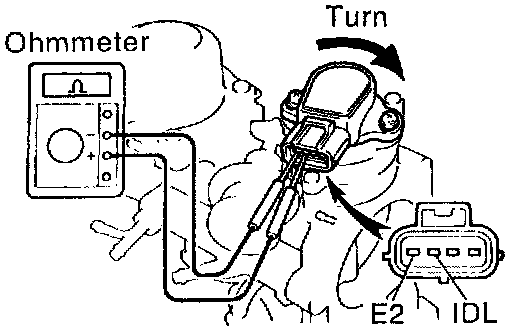

(c) Connect the tester probe of an ohmmeter to the terminals IDL and E2 of the sensor.




(d) Gradually turn the sensor clockwise until the ohmmeter deflects and secure it with the 2 set screws.
