Air Flow Meter/Sensor: Service and Repair

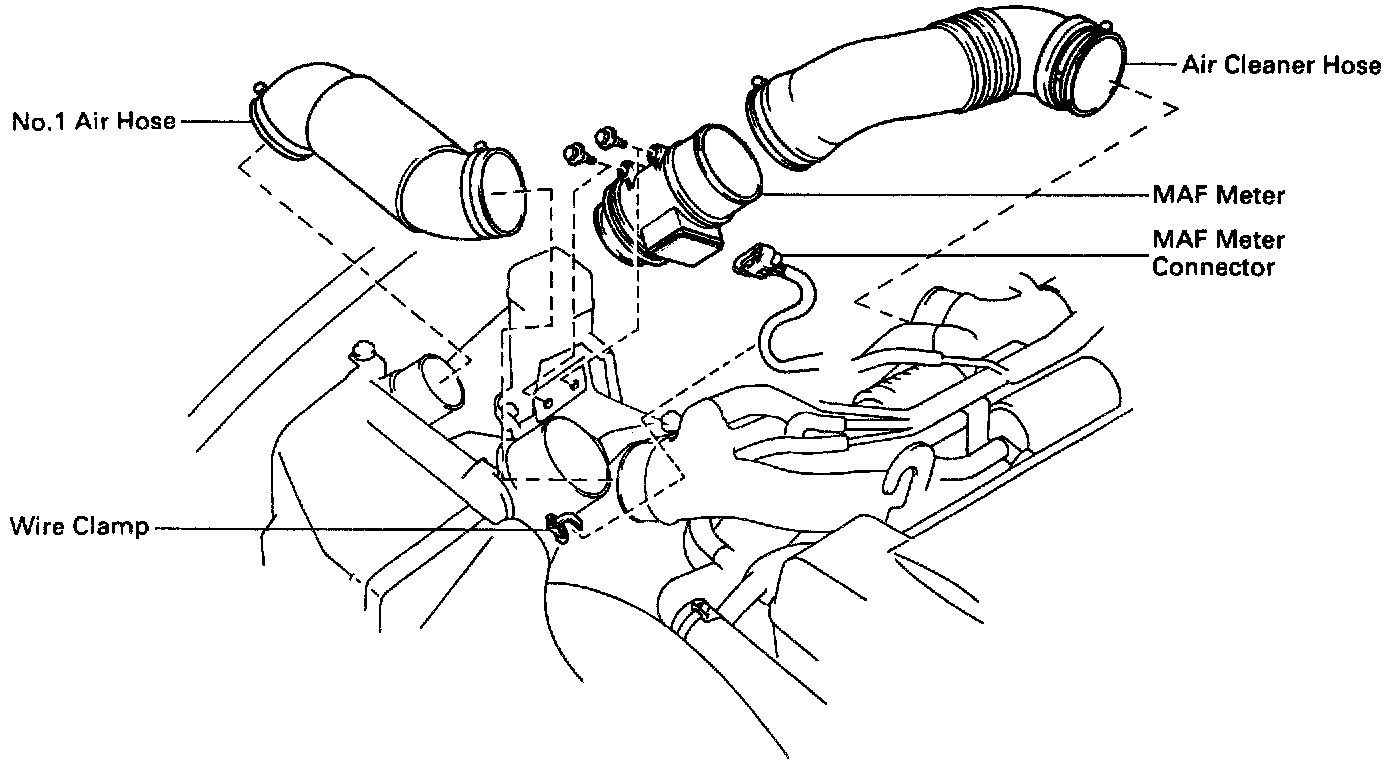

COMPONENTS FOR REMOVAL AND INSTALLATION

MAF METER REMOVAL

1. REMOVE NO.1 AIR HOSE
2. REMOVE AIR CLEANER HOSE
3. REMOVE MAF METER

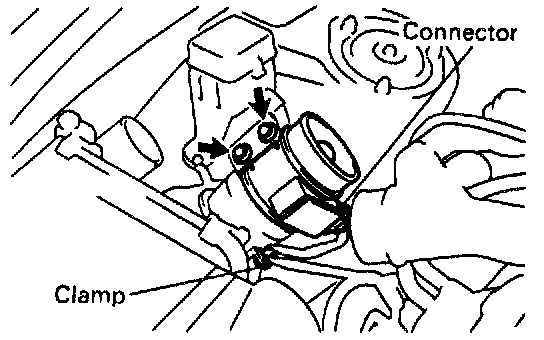

(a) Remove the 2 bolts and disconnect the MAF meter from the air cleaner case.

Torque: 8.9 N.m (70 kgf.cm, 61 in.lbf)

(b) Disconnect the MAF meter wire from the wire clamp on the air cleaner case.
(c) Disconnect the MAF meter connector and remove the MAF meter.

MAF METER INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
