Main Relay (Computer/Fuel System): Locations

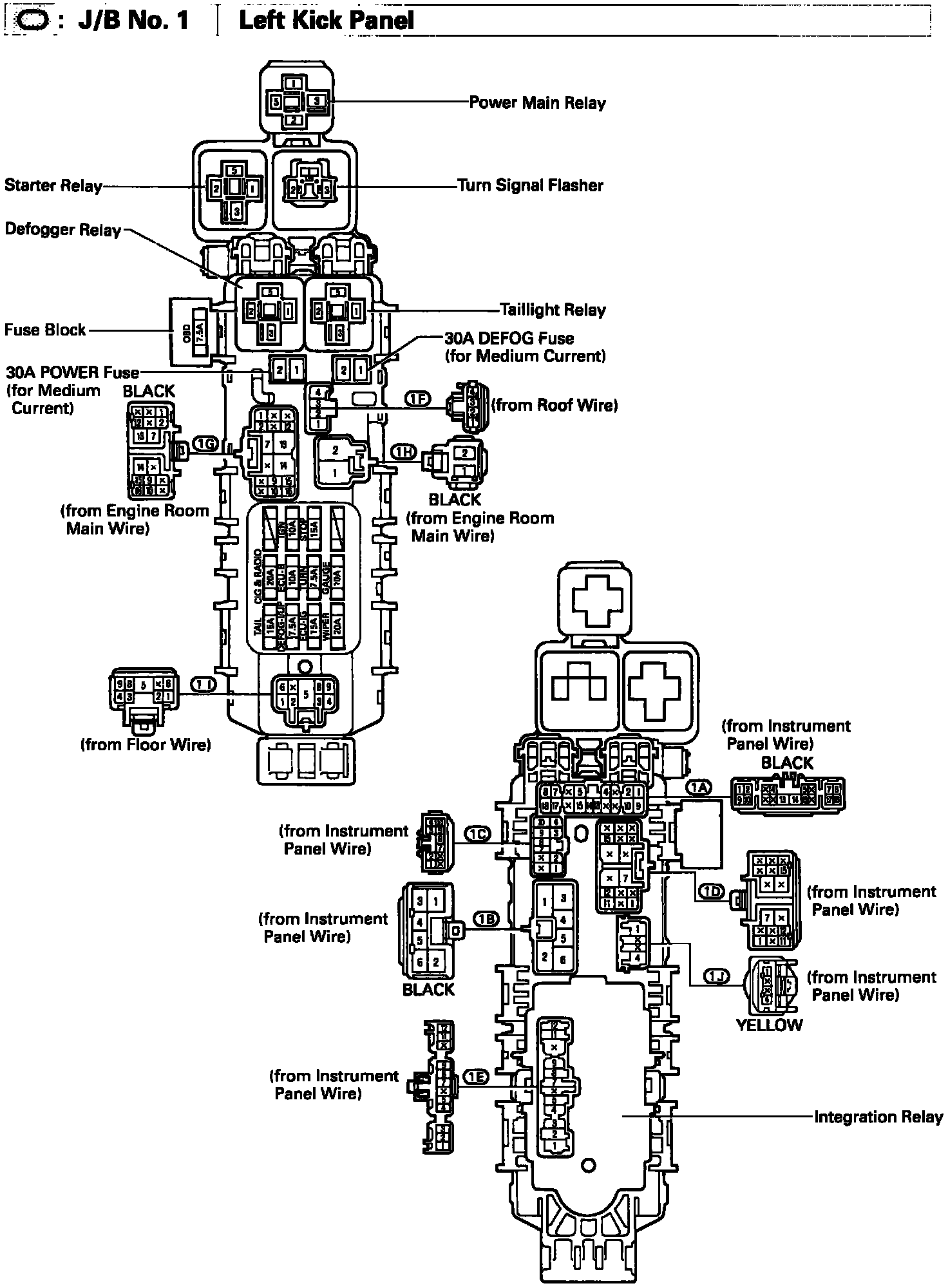

Locations-J/B No.1 Left Kick Panel (Fig 20):

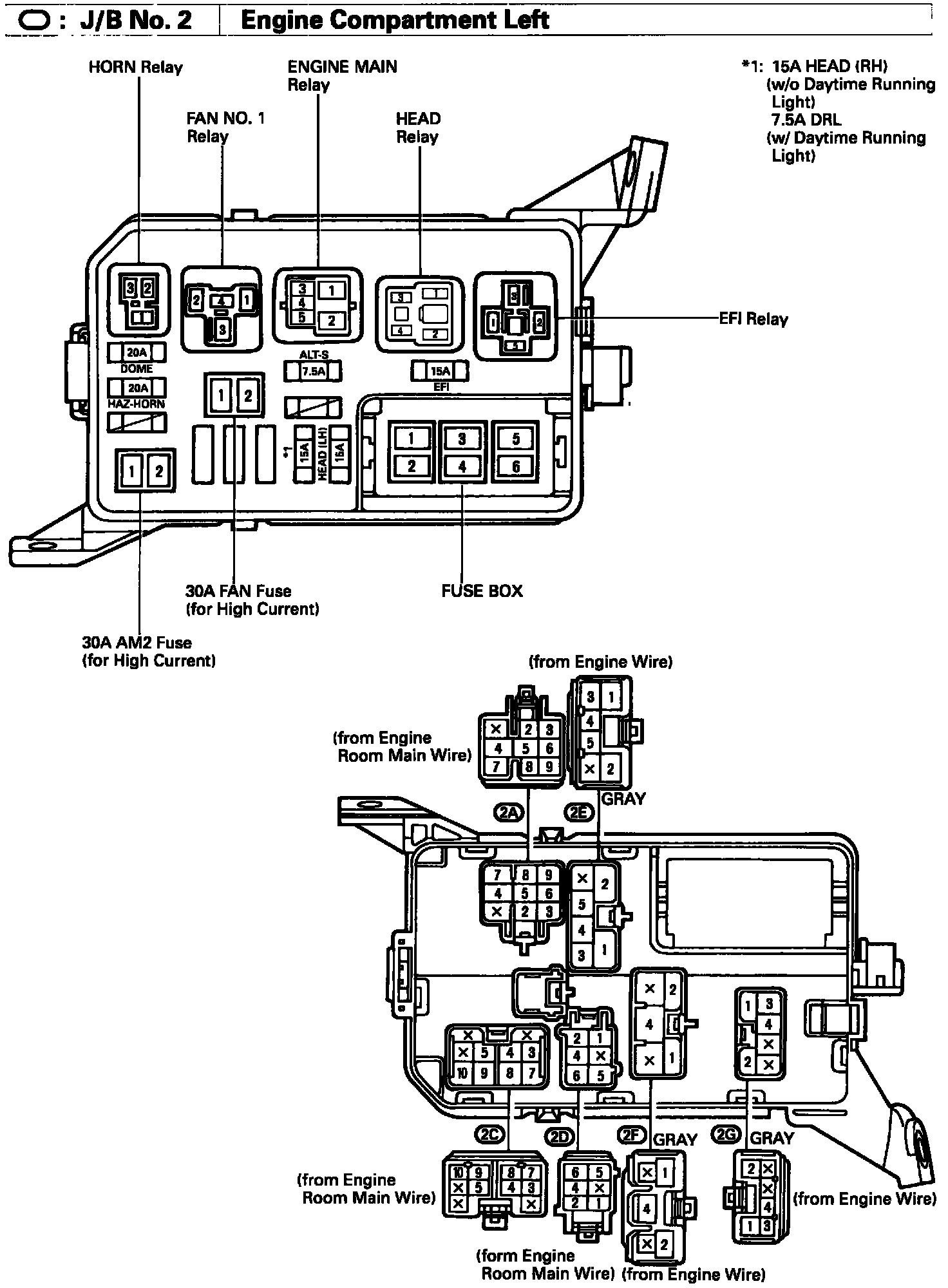

Locations-J/B No.2 Engine Compartment Left (Fig 22):




Details

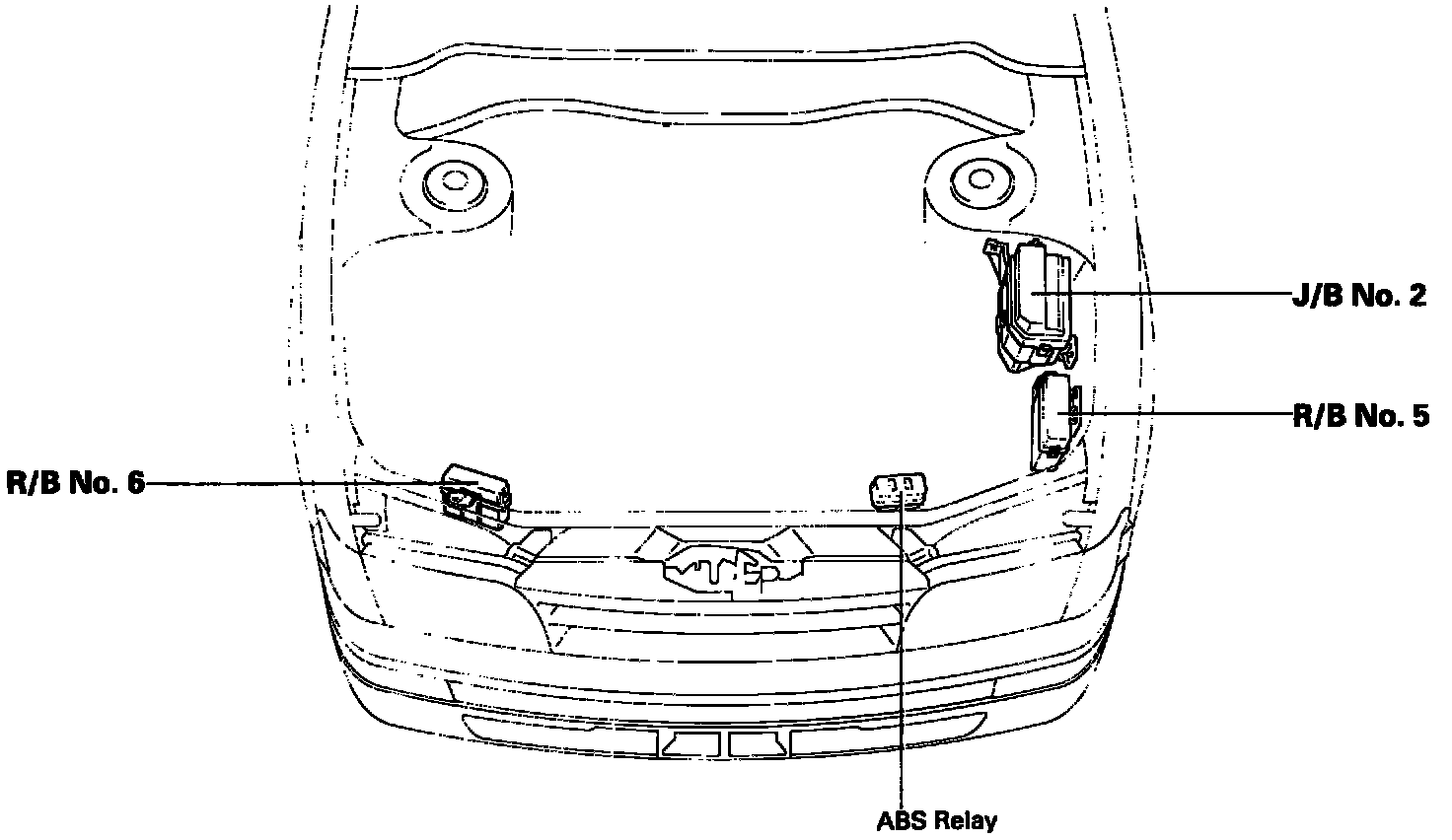

Locations-Engine Compartment (Fig 18):




Locations
