Engine Control Module: Service and Repair

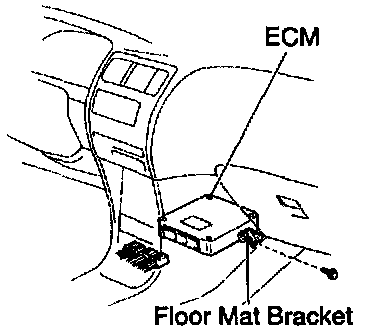

ECM REMOVAL AND INSTALLATION





1. REMOVE FLOOR MAT BRACKET
2. REMOVE ECM
(a) Disconnect the 3 connectors from the ECM.
(b) Remove the ECM.
3. REINSTALL ECM
(a) Install the ECM.
(b) Connect the 3 connectors to the ECM.
