General Torque Specifications

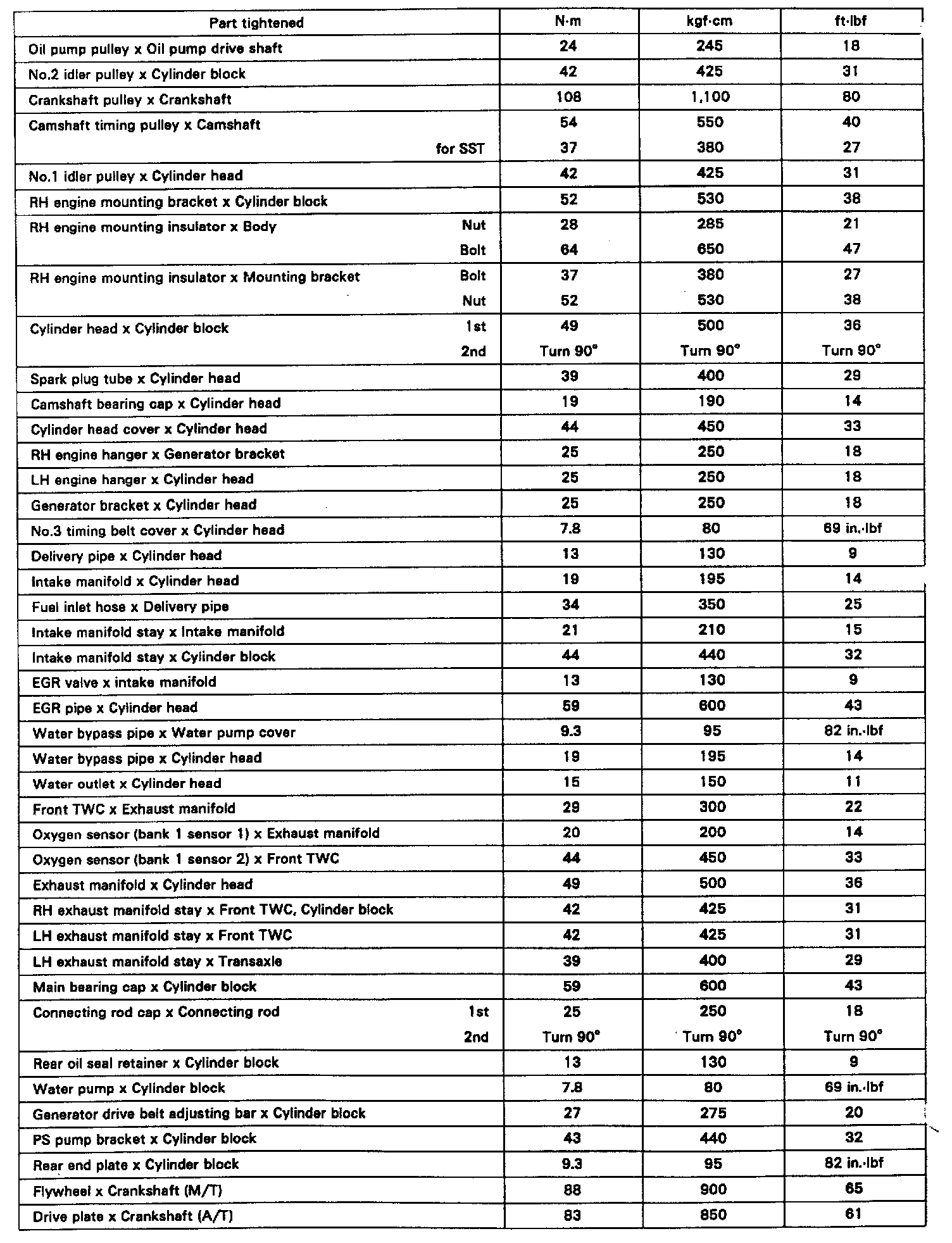

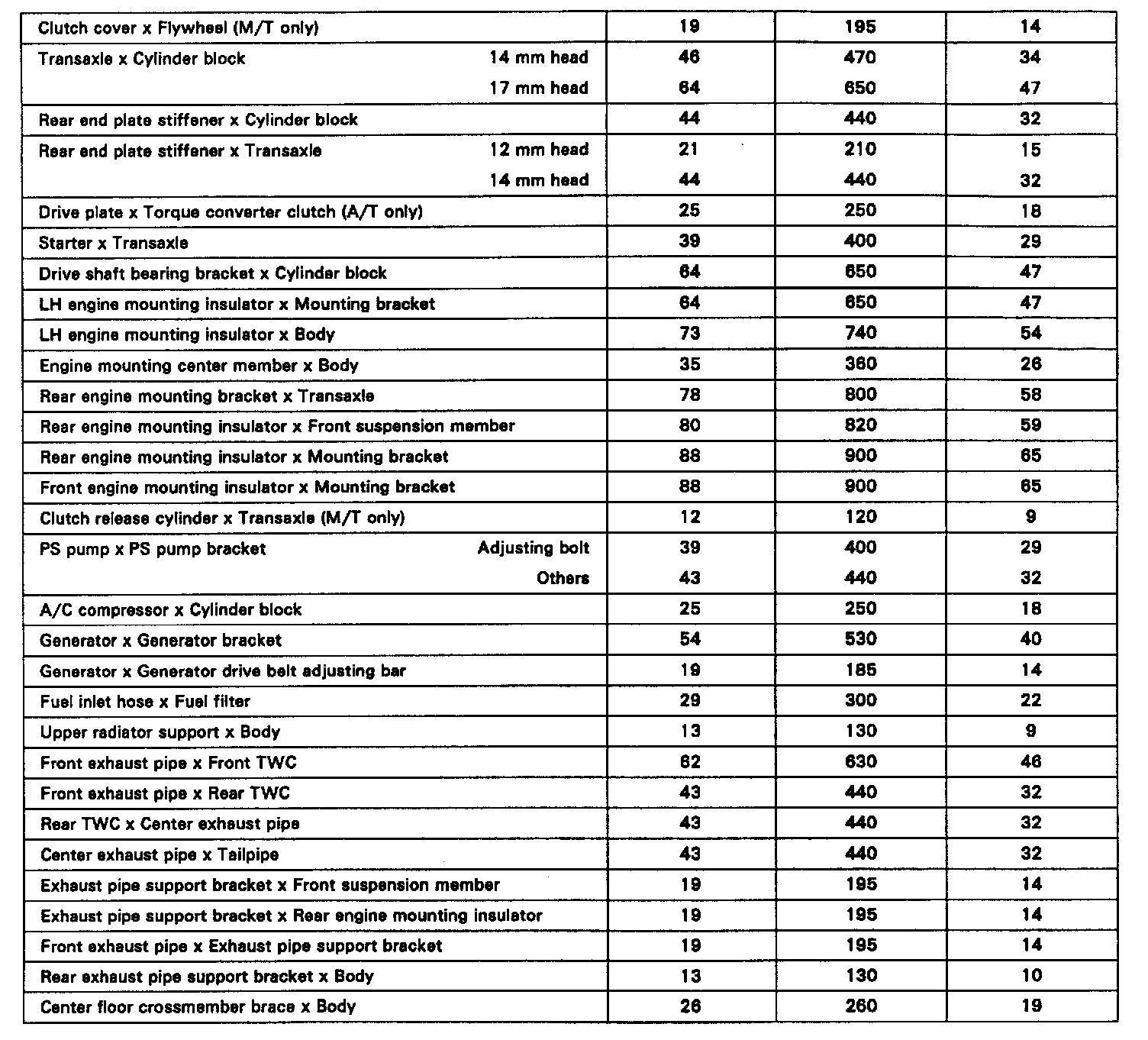

TORQUE CHART








TORQUE SEQUENCES

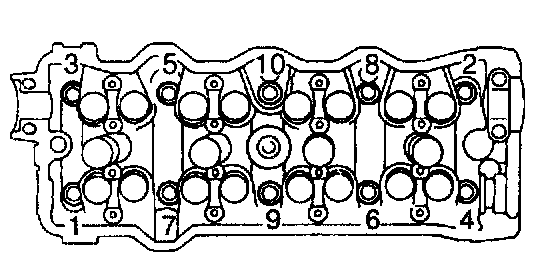

Camshaft Bearing Cap Removal and Installation Sequences
Proper installation procedures are essential to camshaft durability and to avoid damage. Refer to Camshaft, Engine; Service and Repair for detailed camshaft installation procedures.


Cylinder Head Bolt Removal Sequence

Cylinder Head Removal:

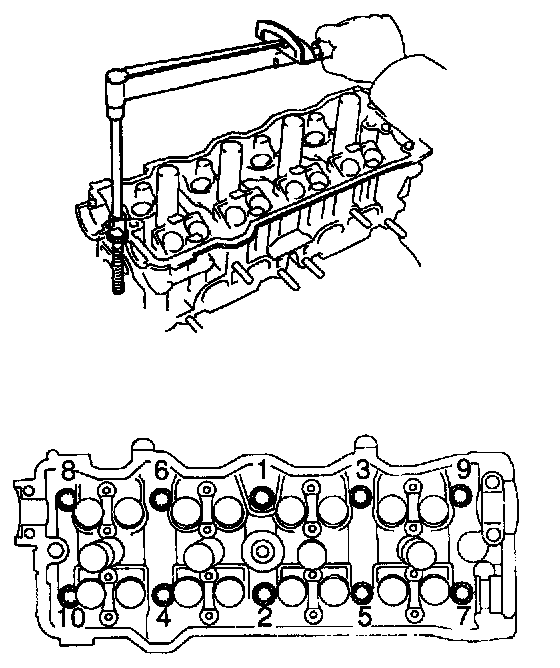

Cylinder Head Bolt Tightening Sequence

Cylinder Head Installation:

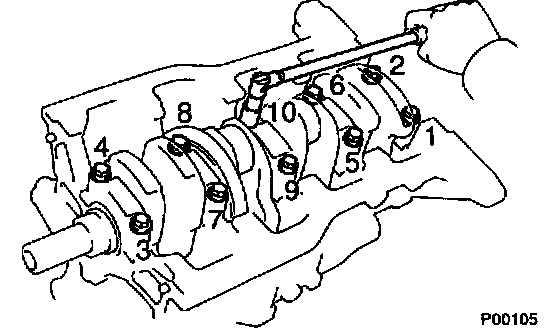

Main Bearing Cap Bolts Removal Sequence

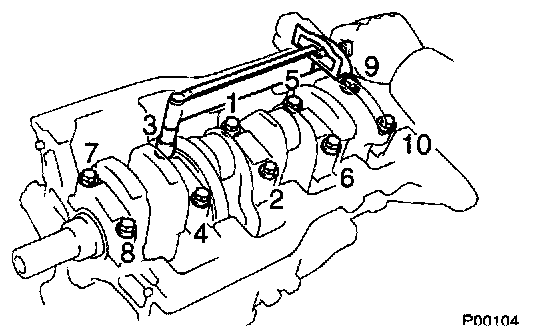

Main Bearing Cap Bolts Tightening Sequence

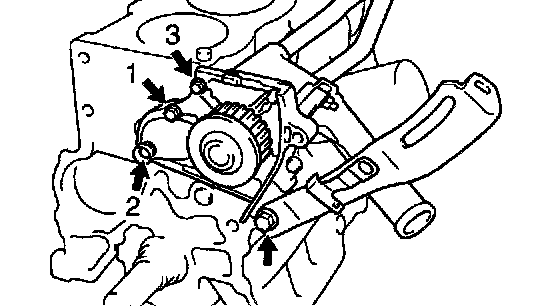

Water Pump Bolt Tightening Sequence

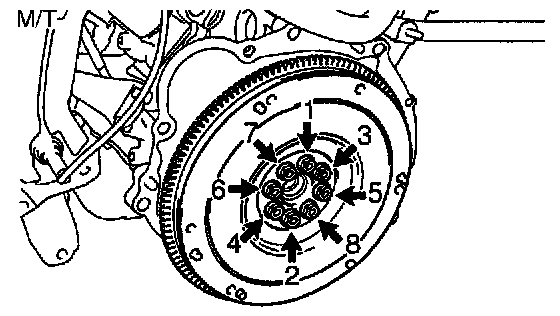

Flywheel/Drive Plate Bolt Tightening Sequence
