Related Diagnostic Procedures


ECM POWER SOURCE CIRCUIT

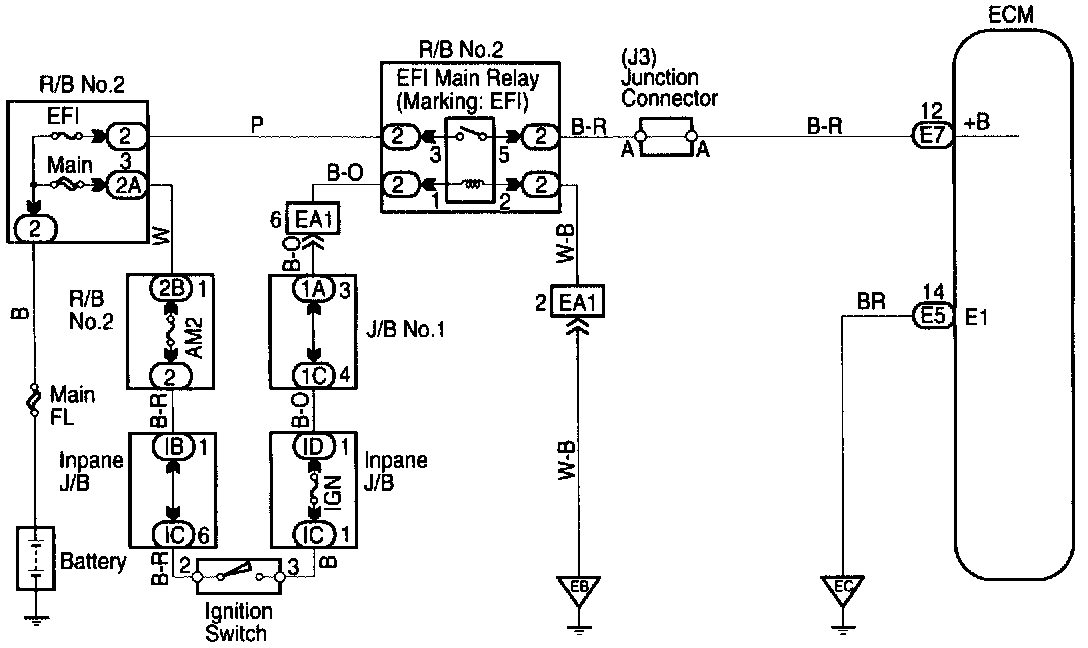

WIRING DIAGRAM

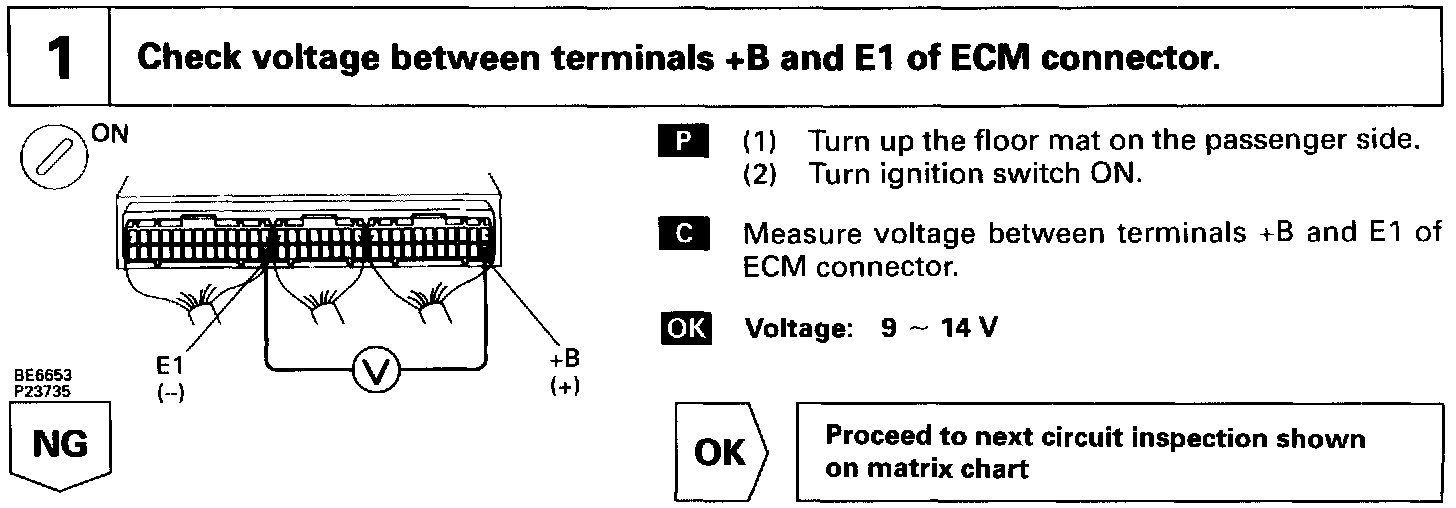

Step 1:

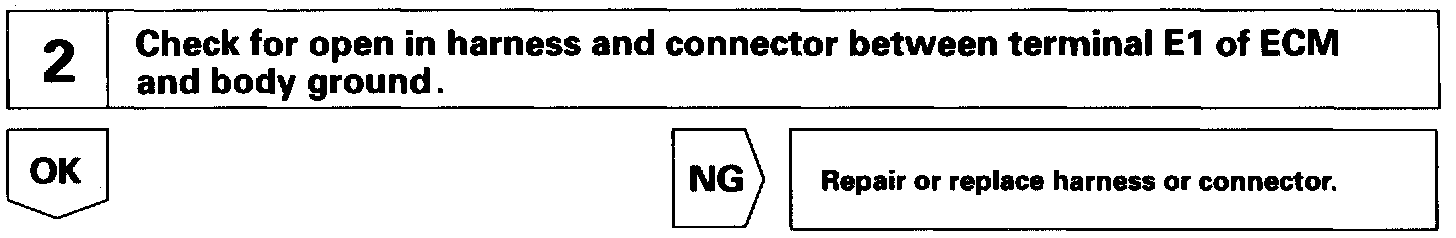

Step 2:




Step 3:

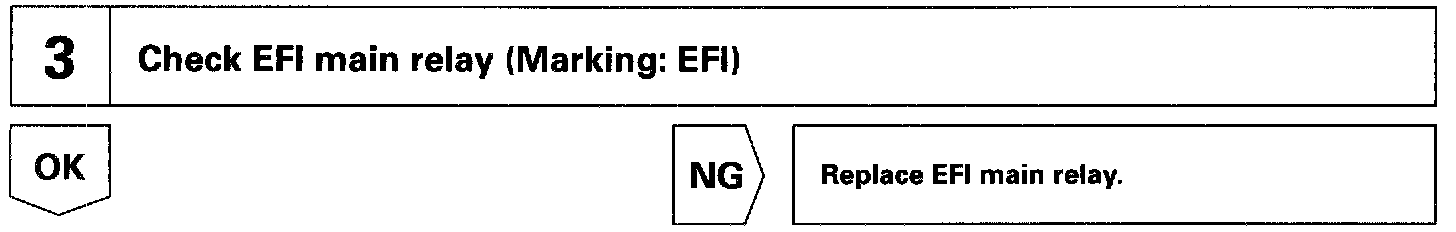

Step 4:

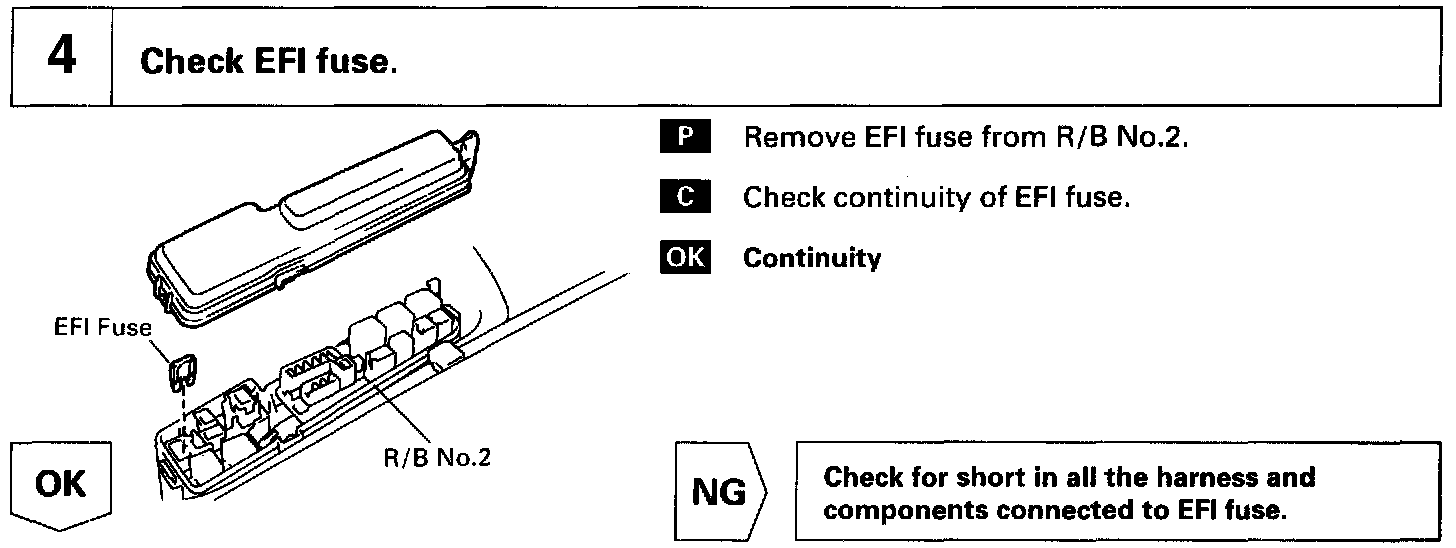

Step 5:

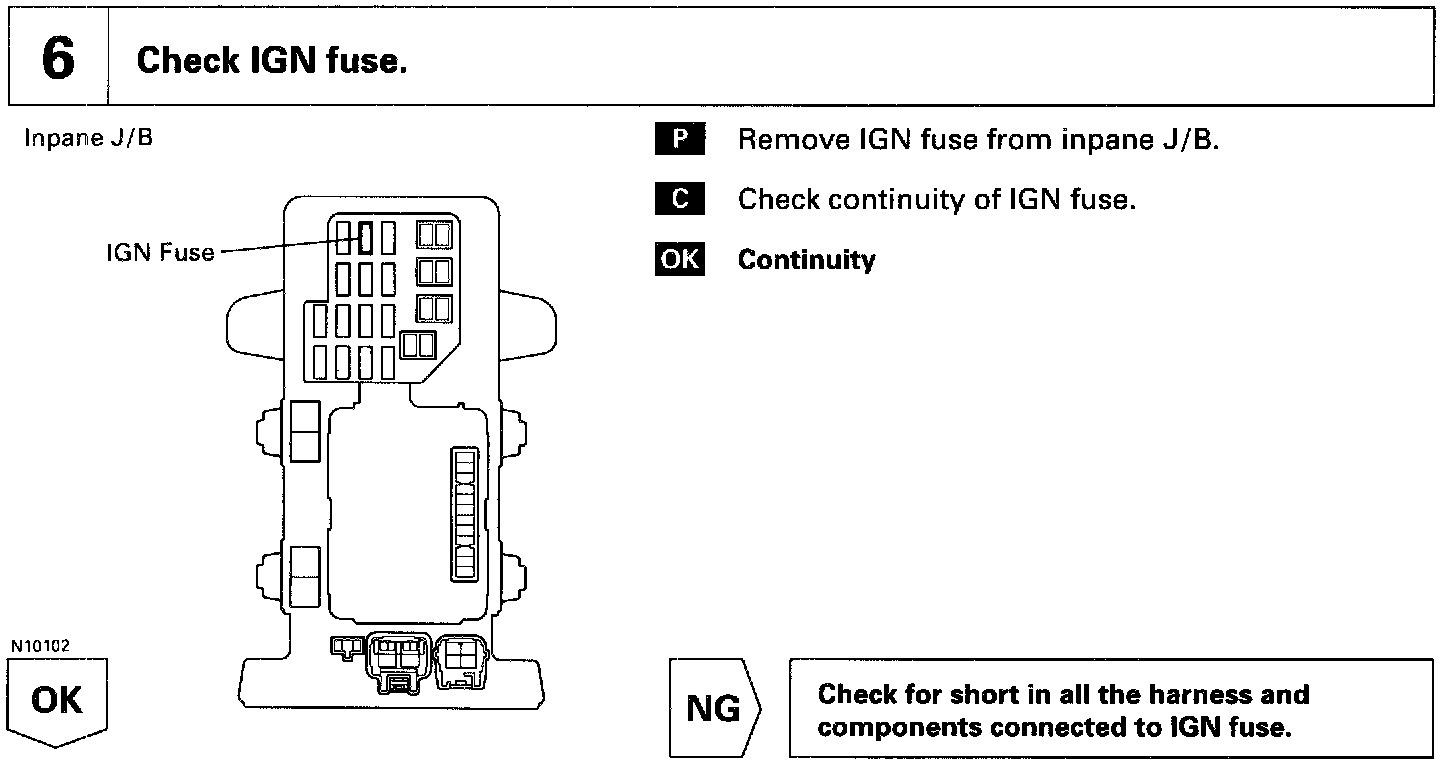

Step 6:

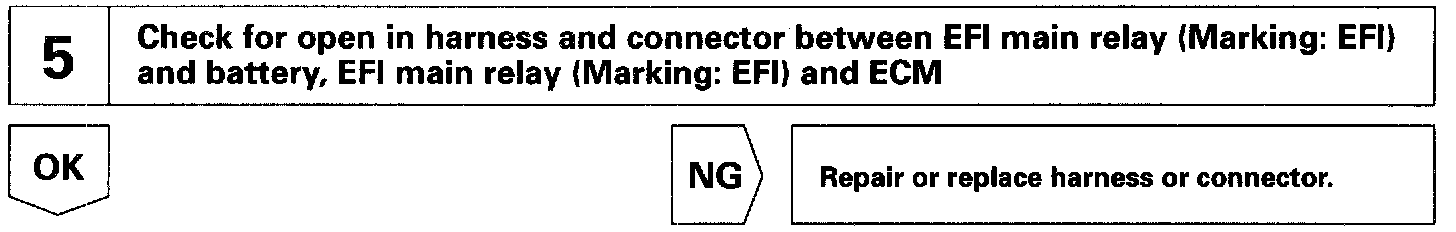

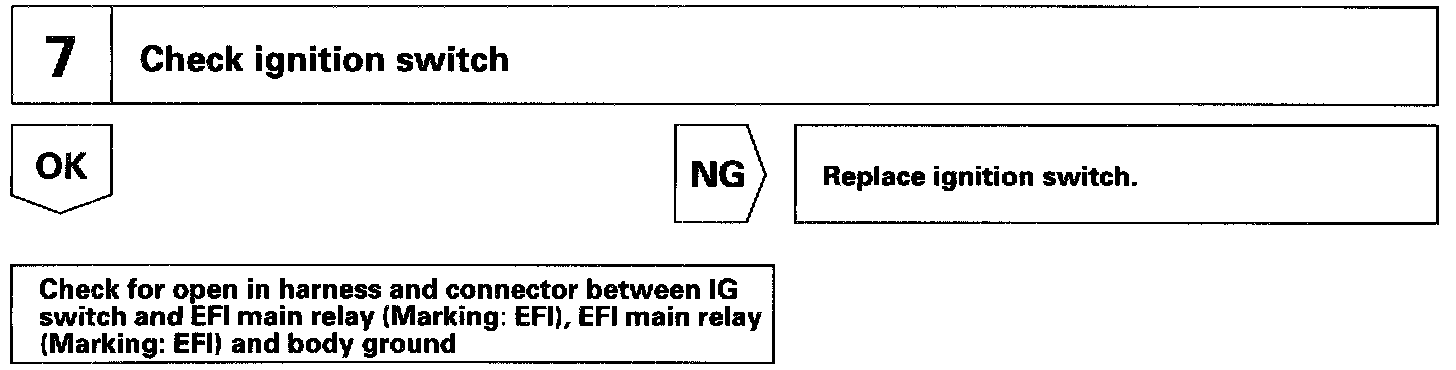

Step 7:





INSPECTION PROCEDURE
