Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

COMPONENTS FOR REMOVAL AND INSTALLATION

ECT SENSOR INSPECTION

1. DRAIN ENGINE COOLANT
2. REMOVE ECT SENSOR





3. INSPECT ECT SENSOR

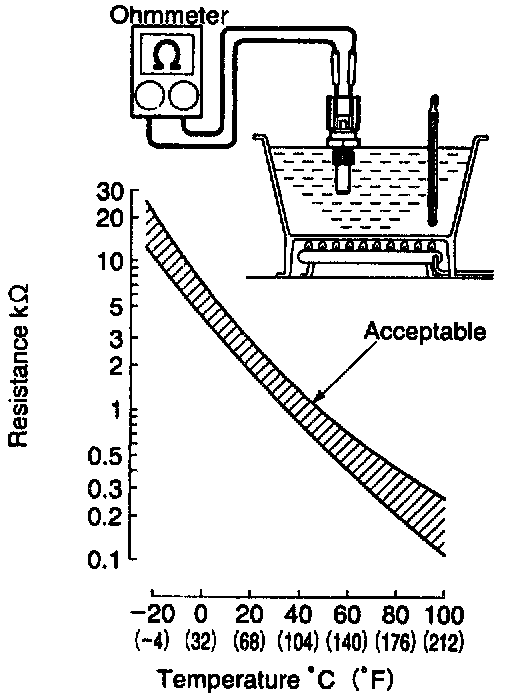

Using an ohmmeter. measure the resistance between the terminals.

Resistance: Refer to the graph

If the resistance is not as specified, replace the ECT sensor.
4. REINSTALL ECT SENSOR
5. REFILL WITH ENGINE COOLANT
