Control Module Pinout Values

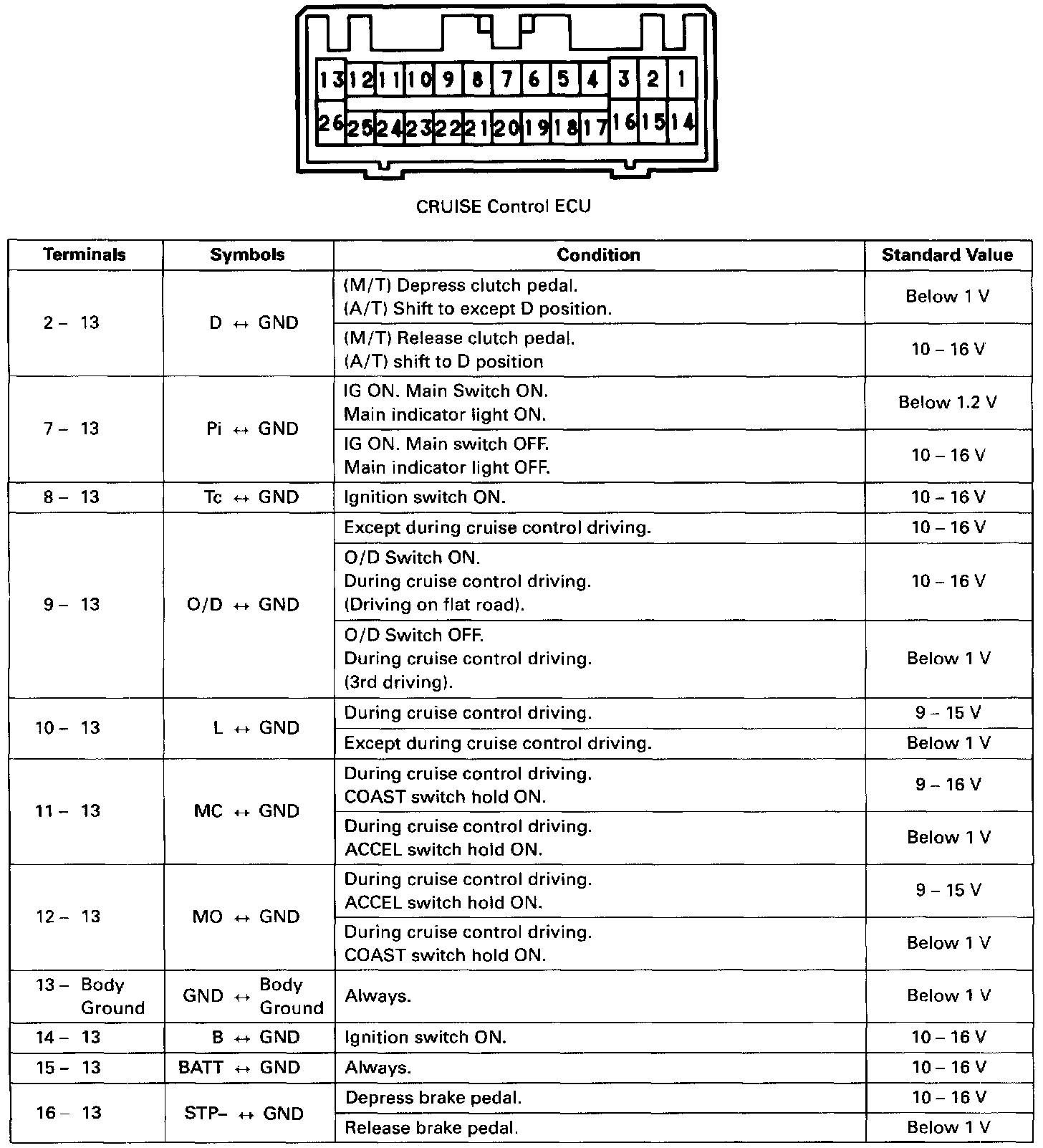

Standard Values of ECU Terminal (1 Of 2):

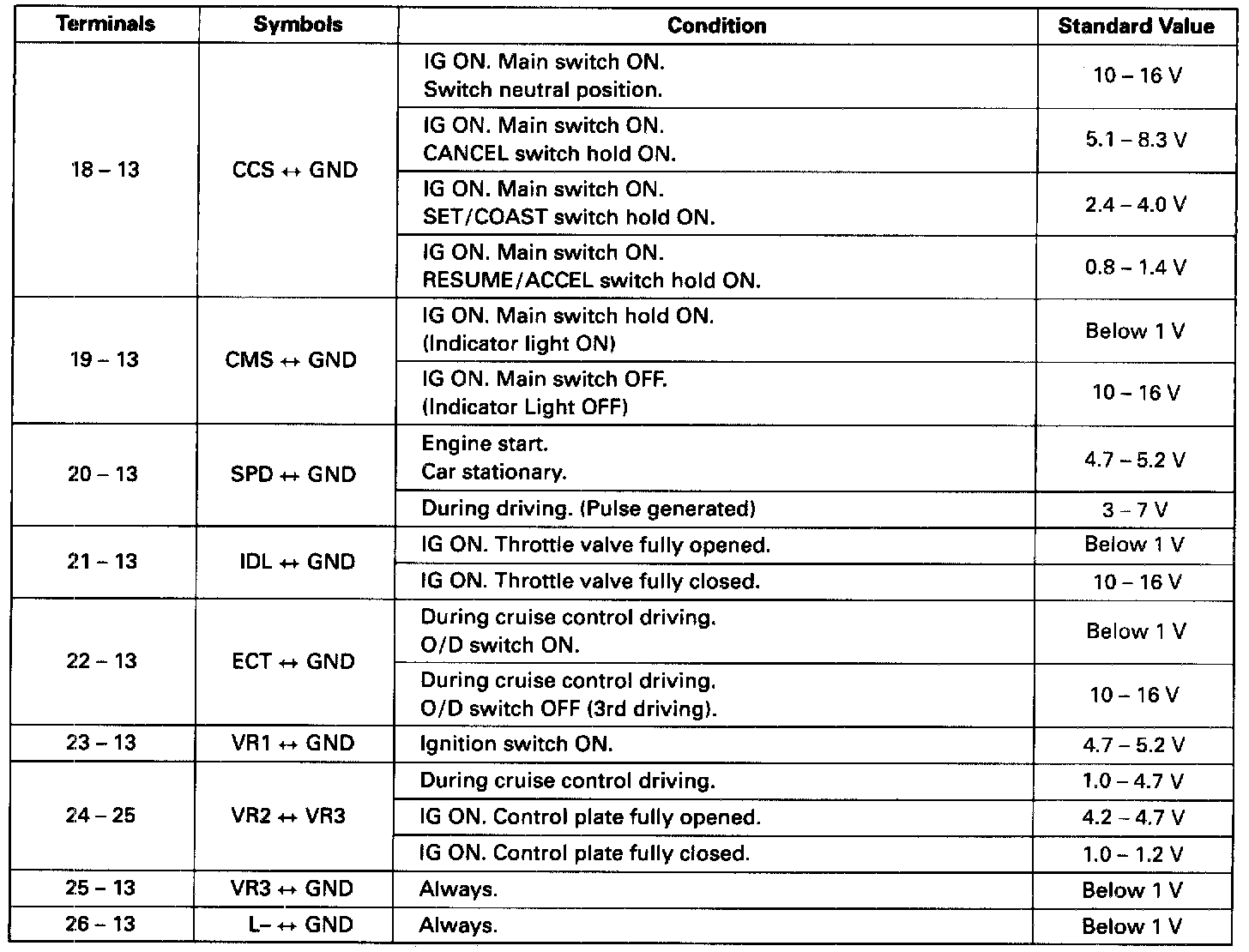

Standard Values of ECU Terminal (2 Of 2):
