Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1995
>>
Corolla Wagon L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Specifications
Engine Control Module: Specifications
STANDARD VALUE OF ECM TERMINALS

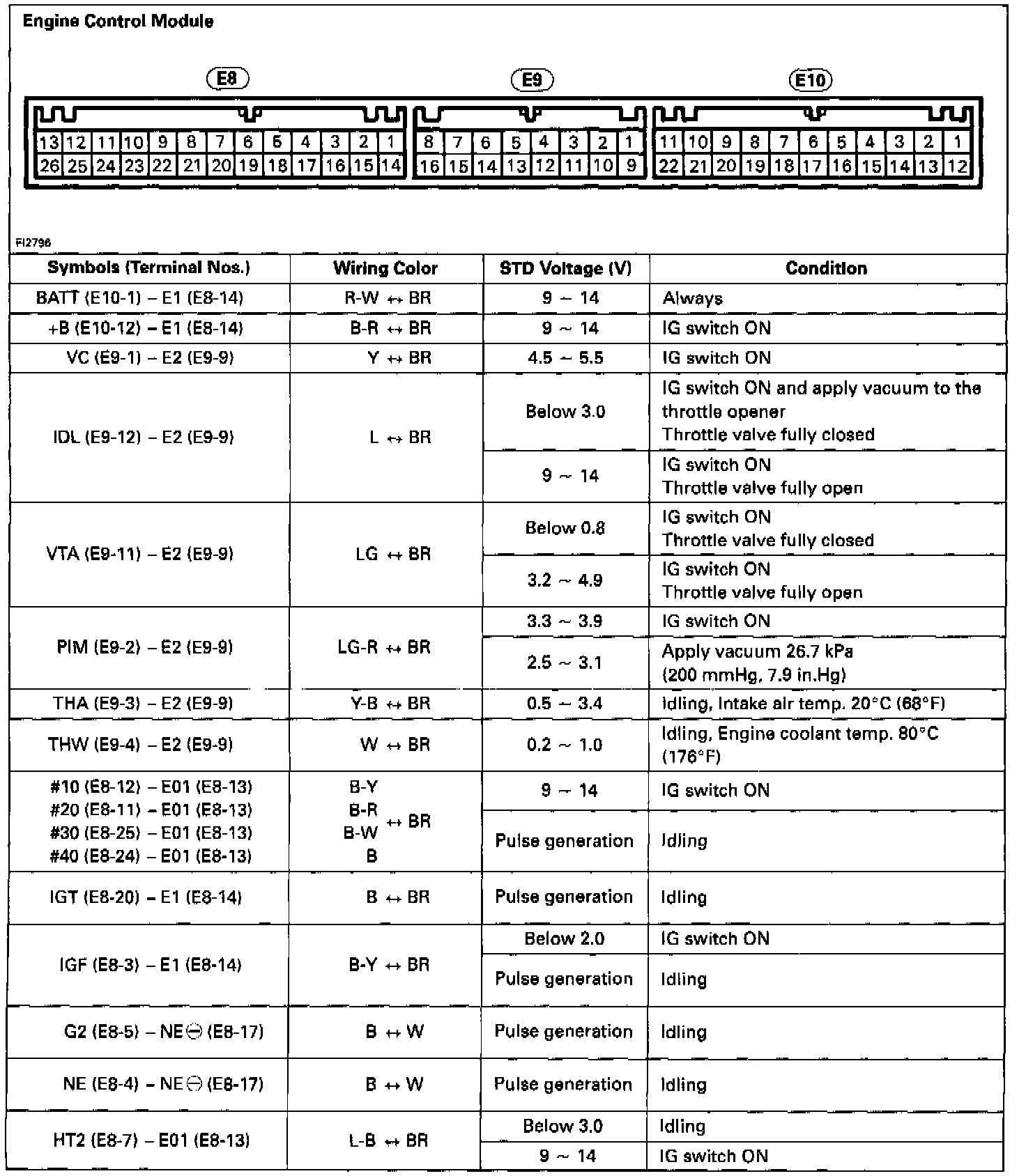

Standard Value Of ECM Terminals, Part 1 Of 2:

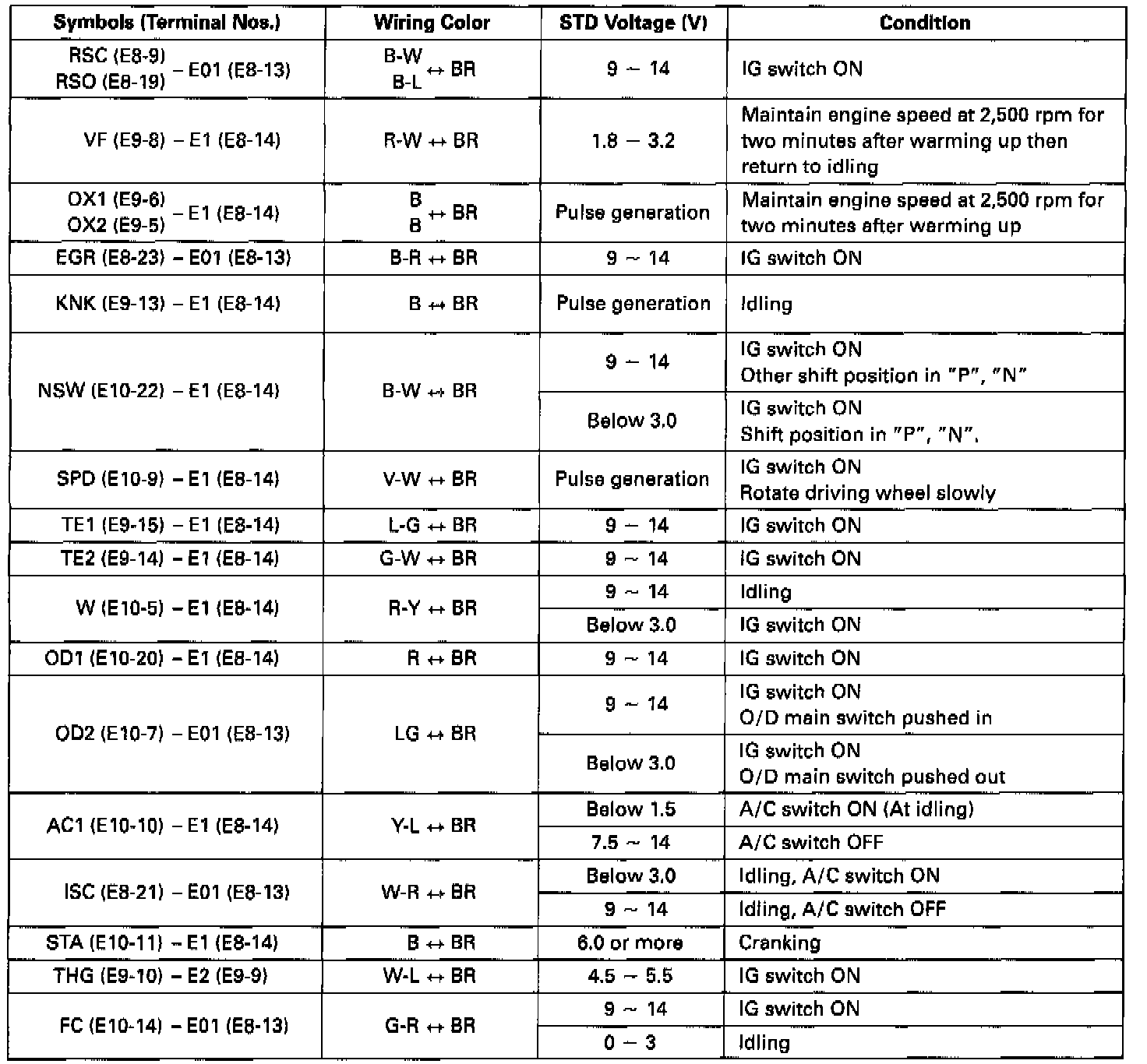

Standard Value Of ECM Terminals, Part 2 Of 2:
