Engine Control Module
>>
Specifications
>>

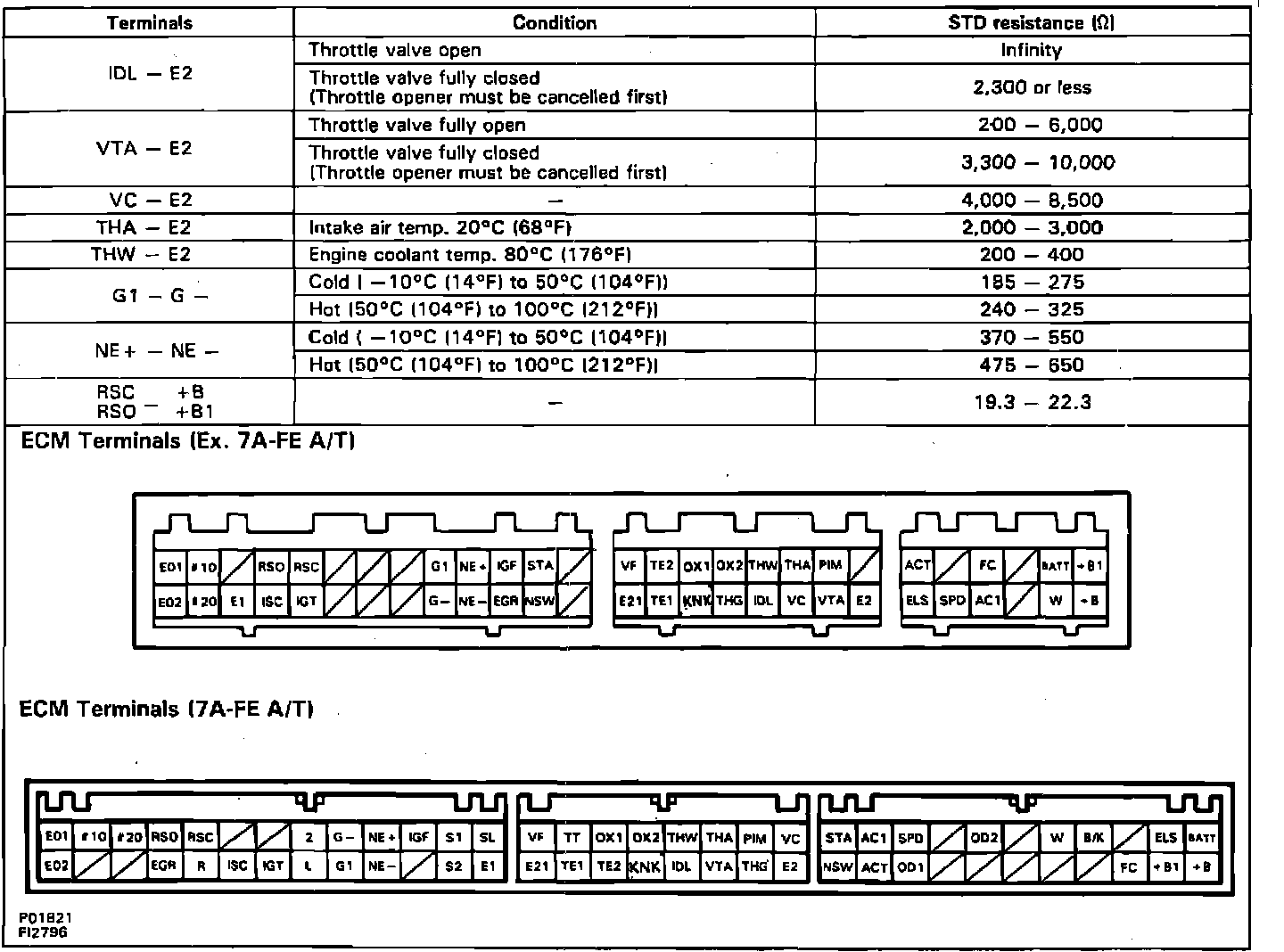

ECM Resistance Charts
ECM Resistance Charts
ECM Terminal Resistance:
