Home >> Toyota >> 1994 >> Celica L4-107.5 1762cc 1.8L DOHC (7A-FE) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Powertrain Management >> Computers and Control Systems >> System Specifications >> With M/T

With M/T

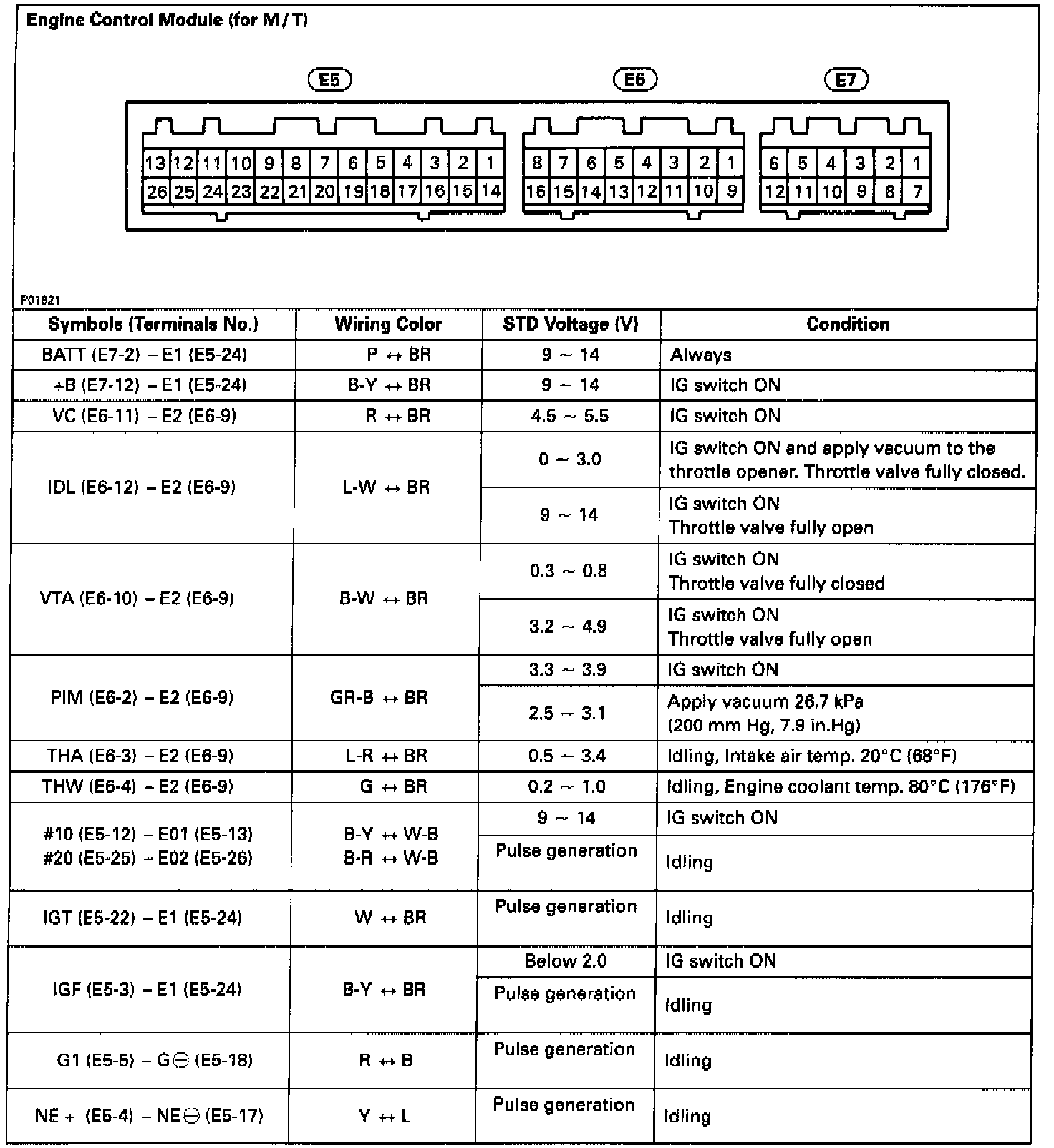

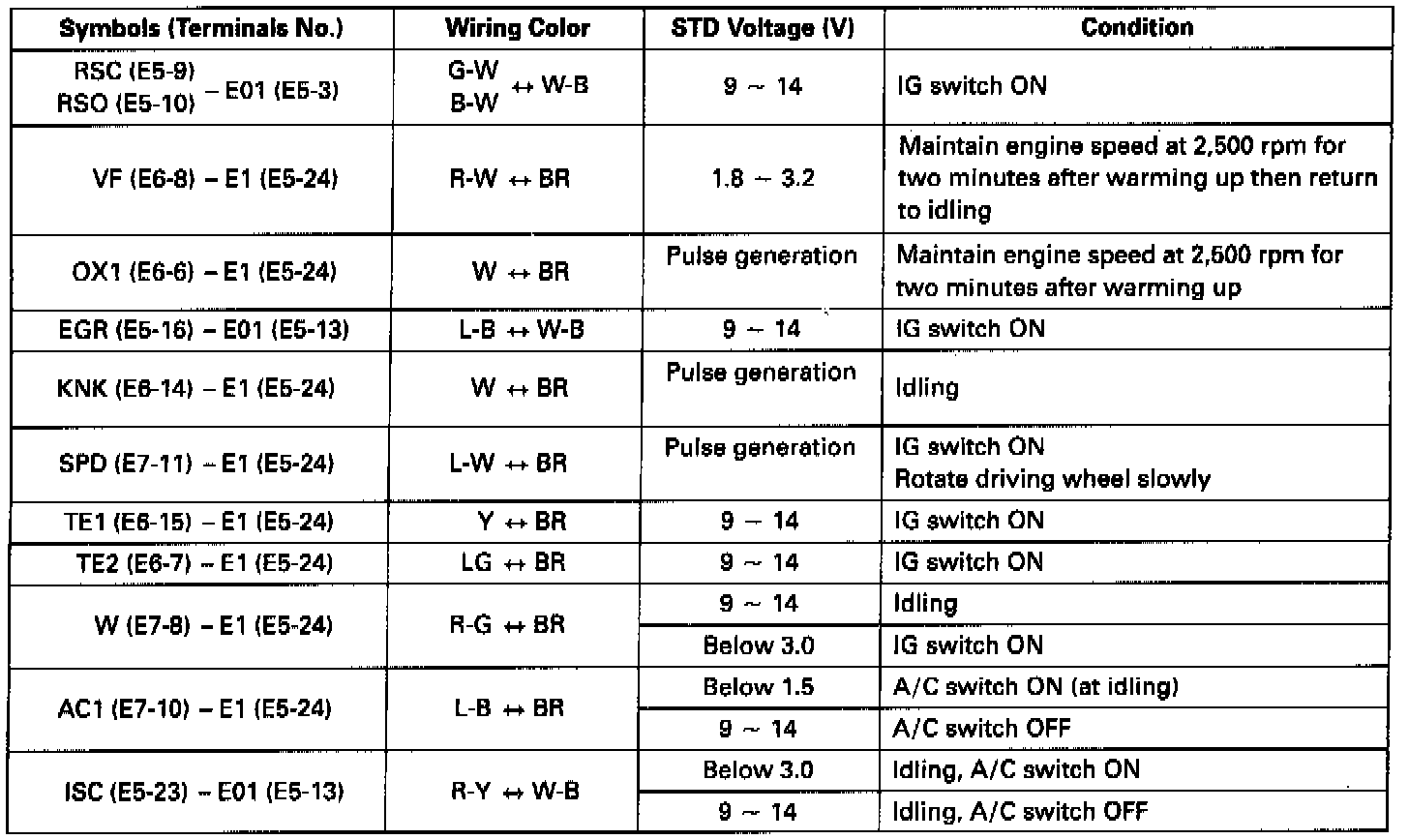

Standard ECM Terminal Values:



Standard ECM Terminal Values:
