Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1992
>>
Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
With Electronically Controlled Transmission
With Electronically Controlled Transmission

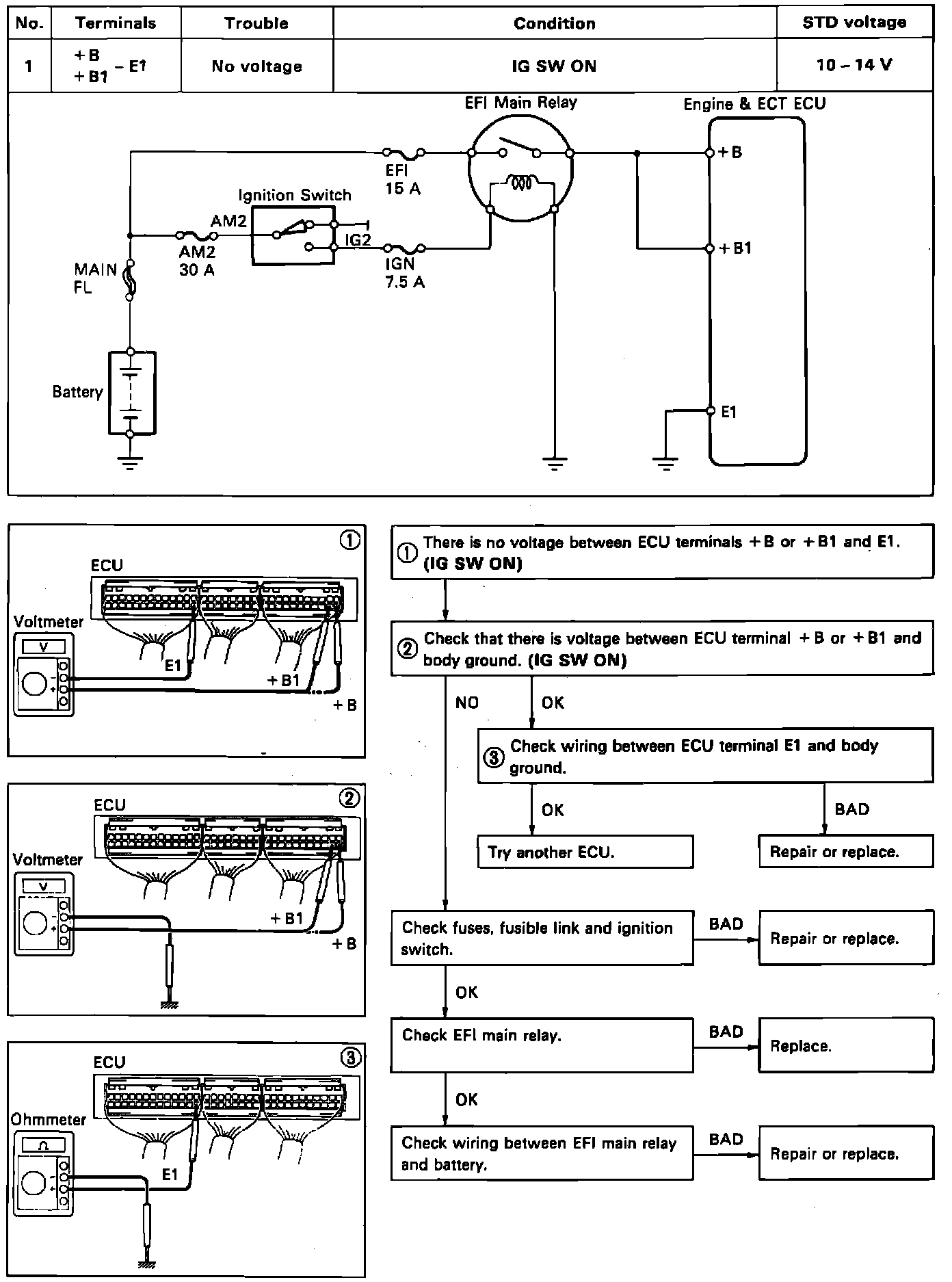

ECU Power Source:
