Toyota Truck
>>
2012
>>
Highlander 4WD V6-3.5L (2GR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>
SFI System
SFI System

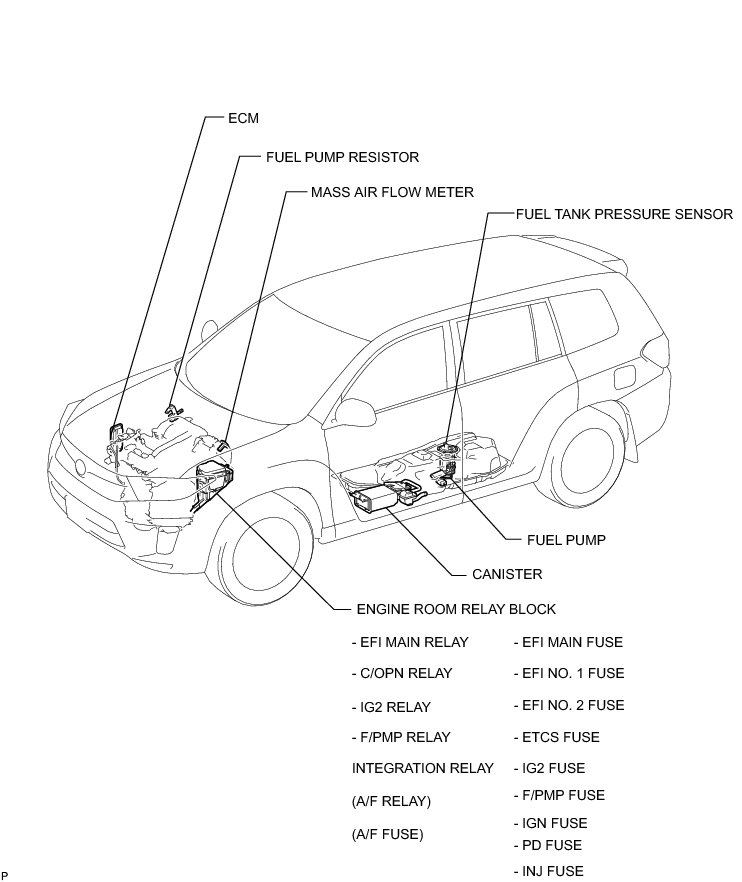

2GR-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION
