Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota Truck
>>
2012
>>
Highlander 4WD V6-3.5L (2GR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>
Engine Compertment/Instrument Panel View
Engine Compertment/Instrument Panel View

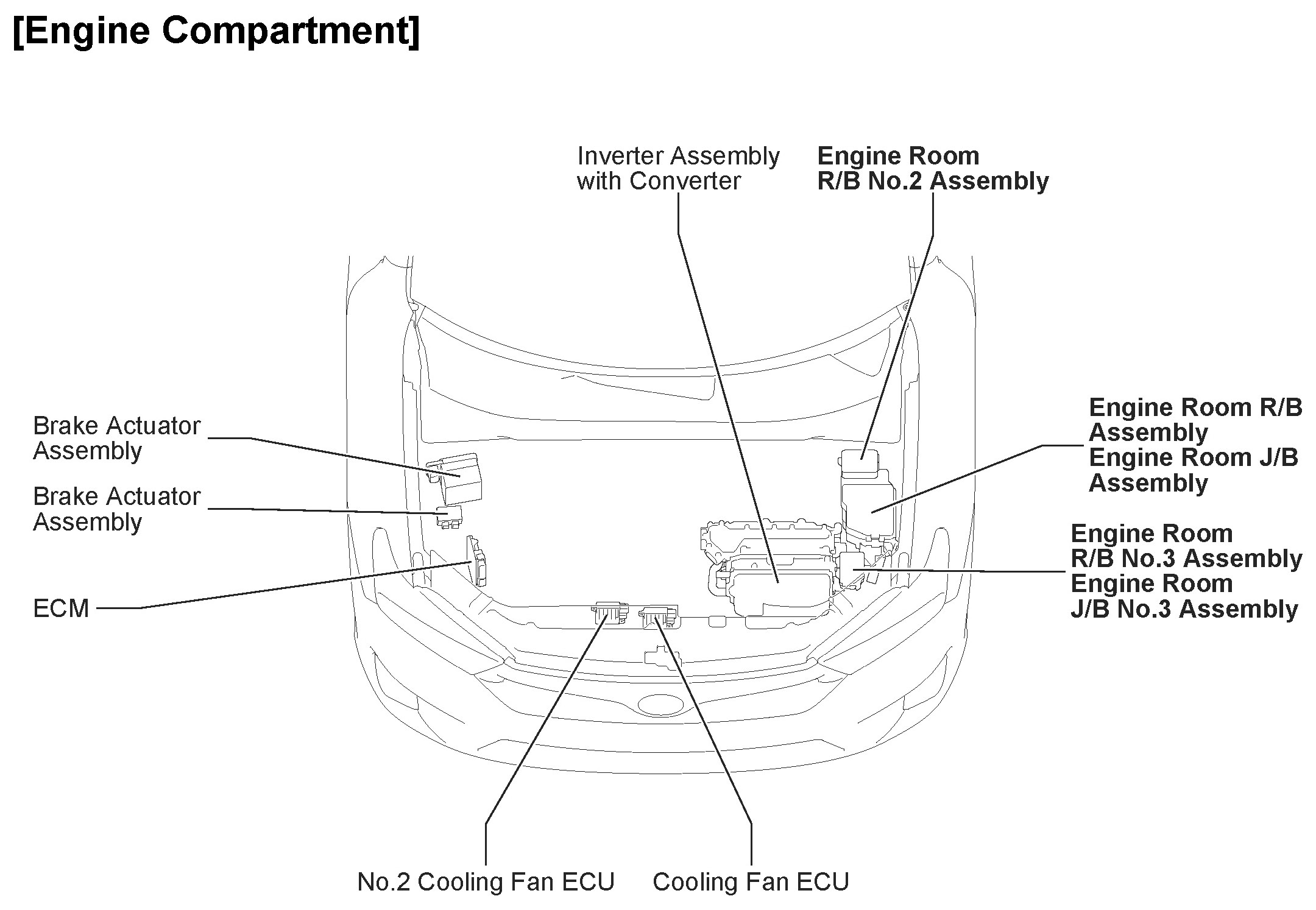

Engine Compartment:

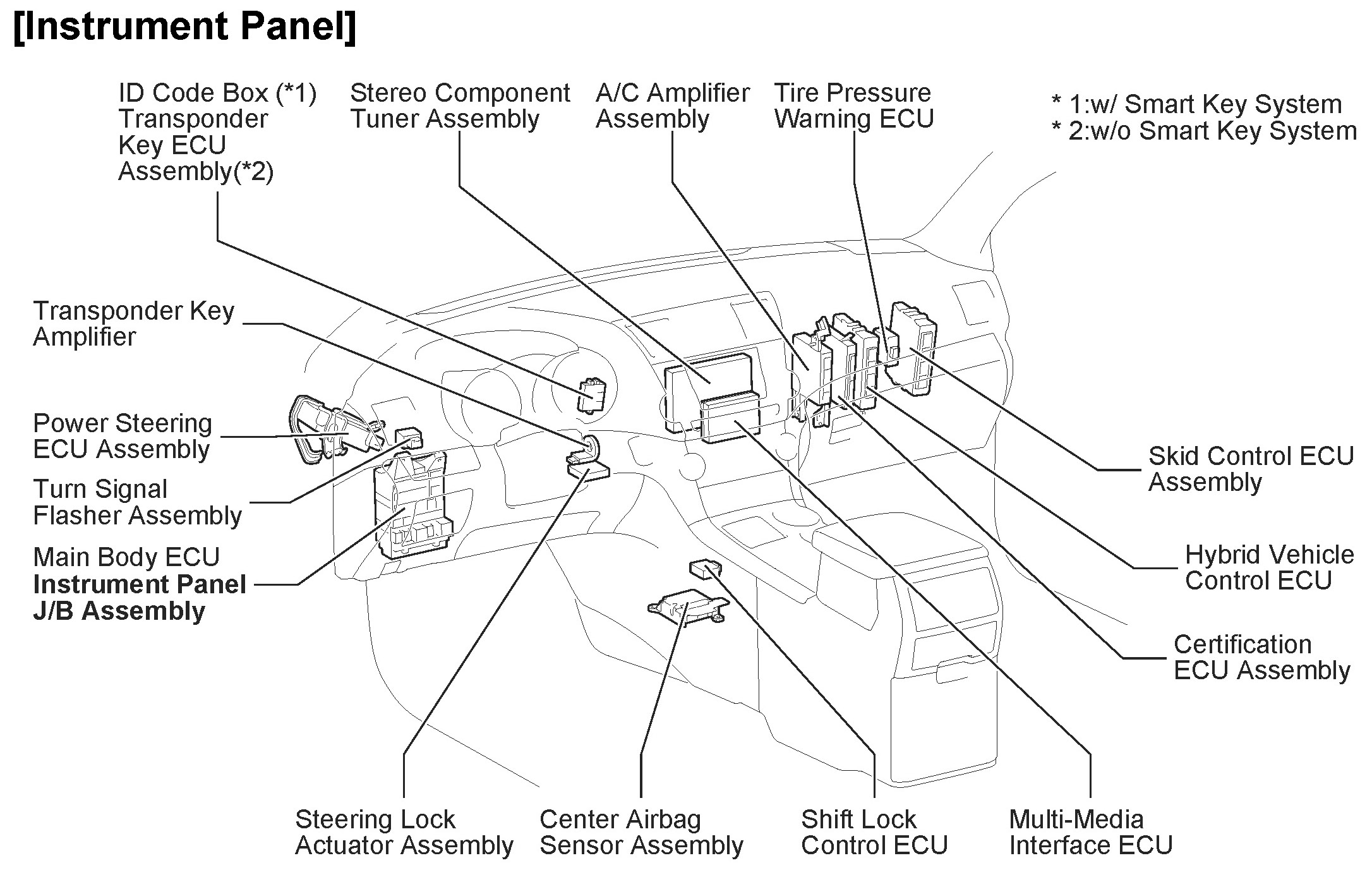

Instrument Panel:
