Toyota Truck
>>
2012
>>
Highlander 4WD V6-3.5L (2GR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Hybrid Drive Systems
>>
Power Control System
>>
Hybrid Power Control Module
>>
Locations
>>
Hybrid Control System
Hybrid Control System

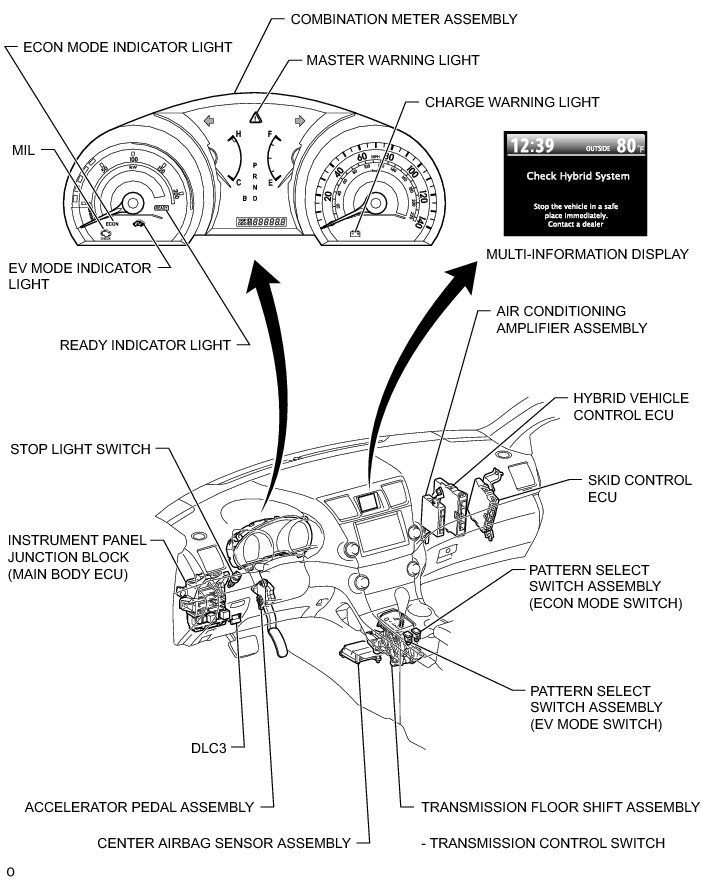

P313 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: PARTS LOCATION
