Main Relay (Computer/Fuel System): Locations

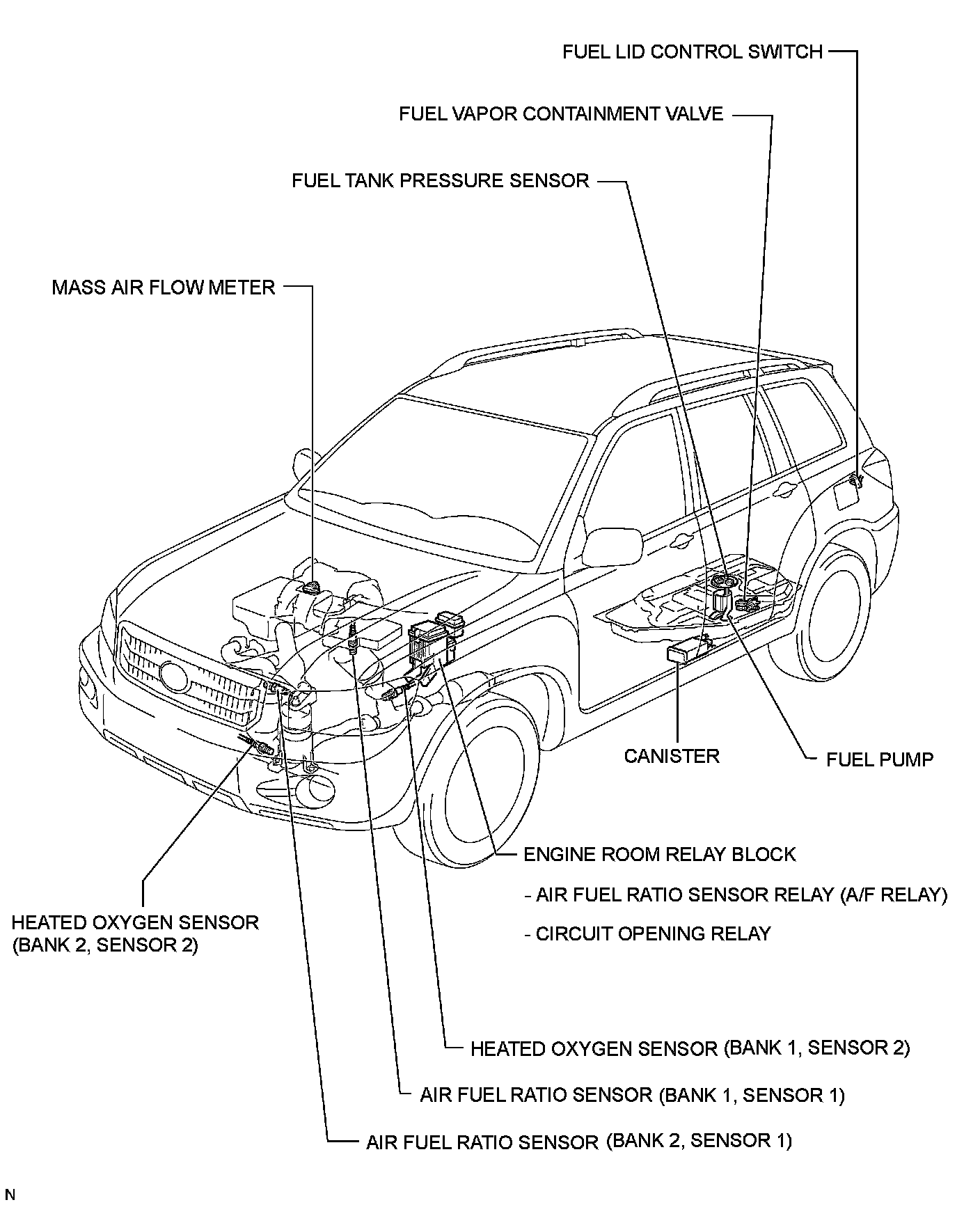

3MZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION

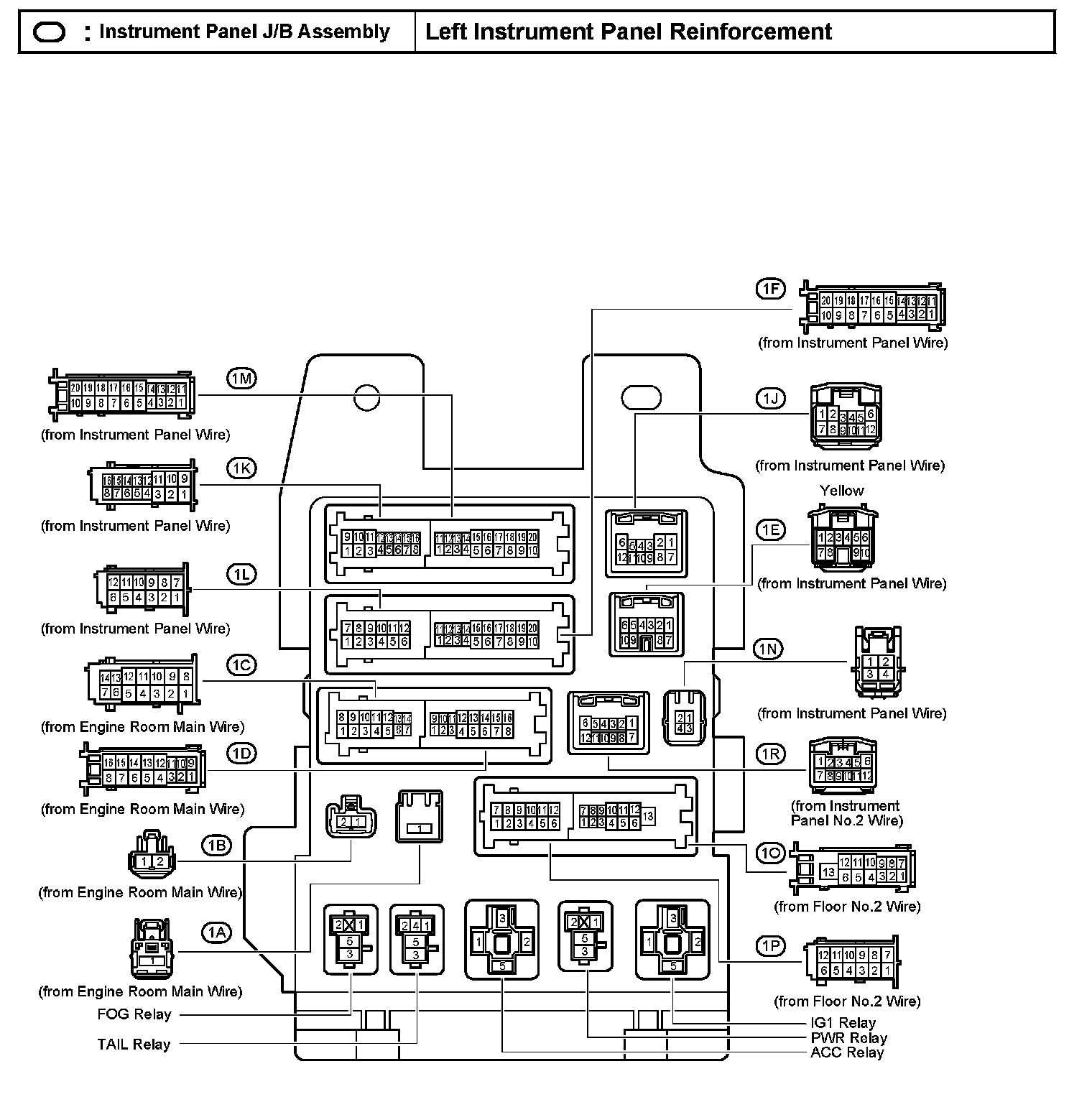

Instrument Panel J/B Assembly - Left Instrument Panel Reinforcement:
