Highlander 4WD V6-3.3L (3MZ-FE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Control Module
Steering Control Module

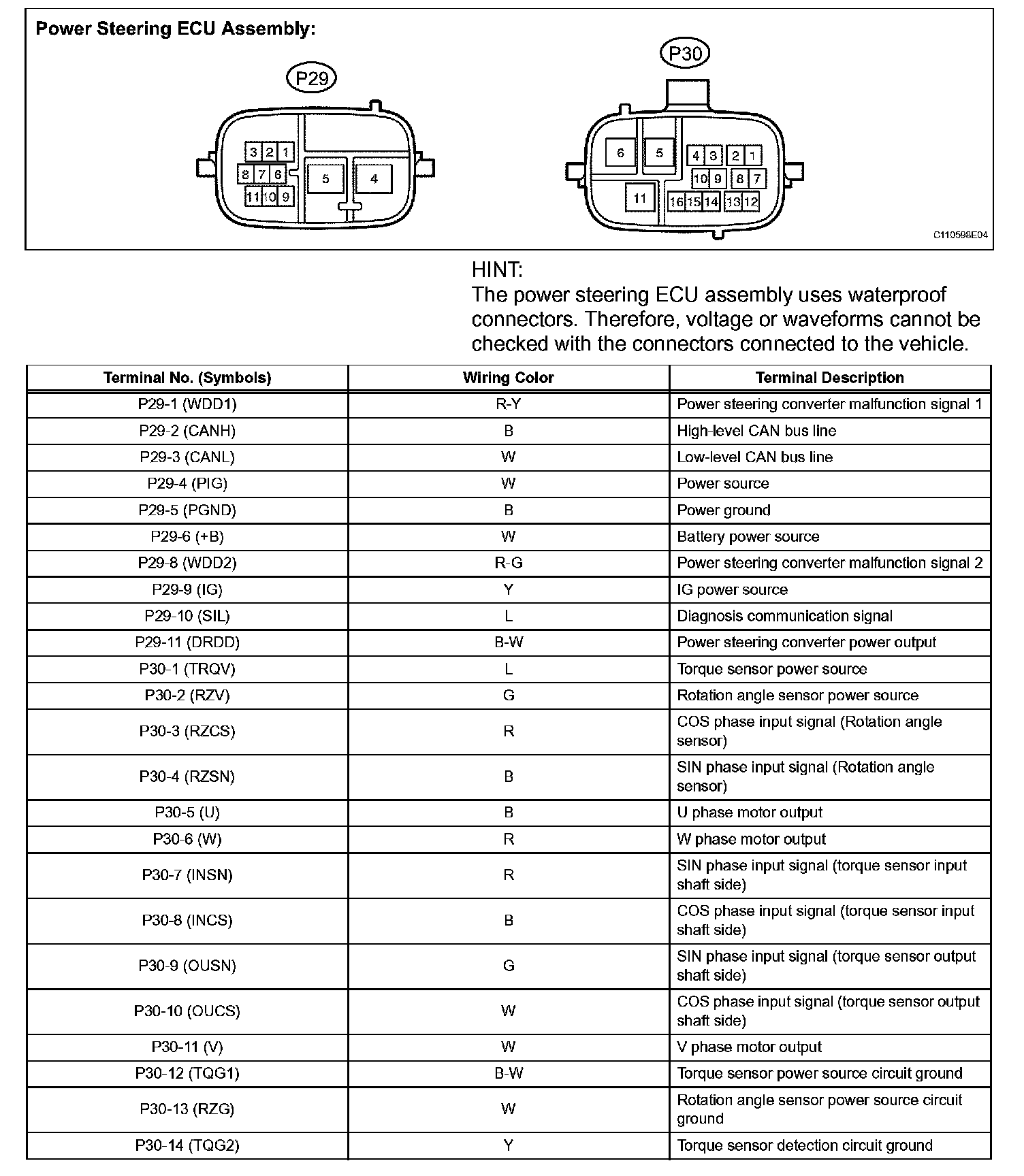

Terminals Of ECU:

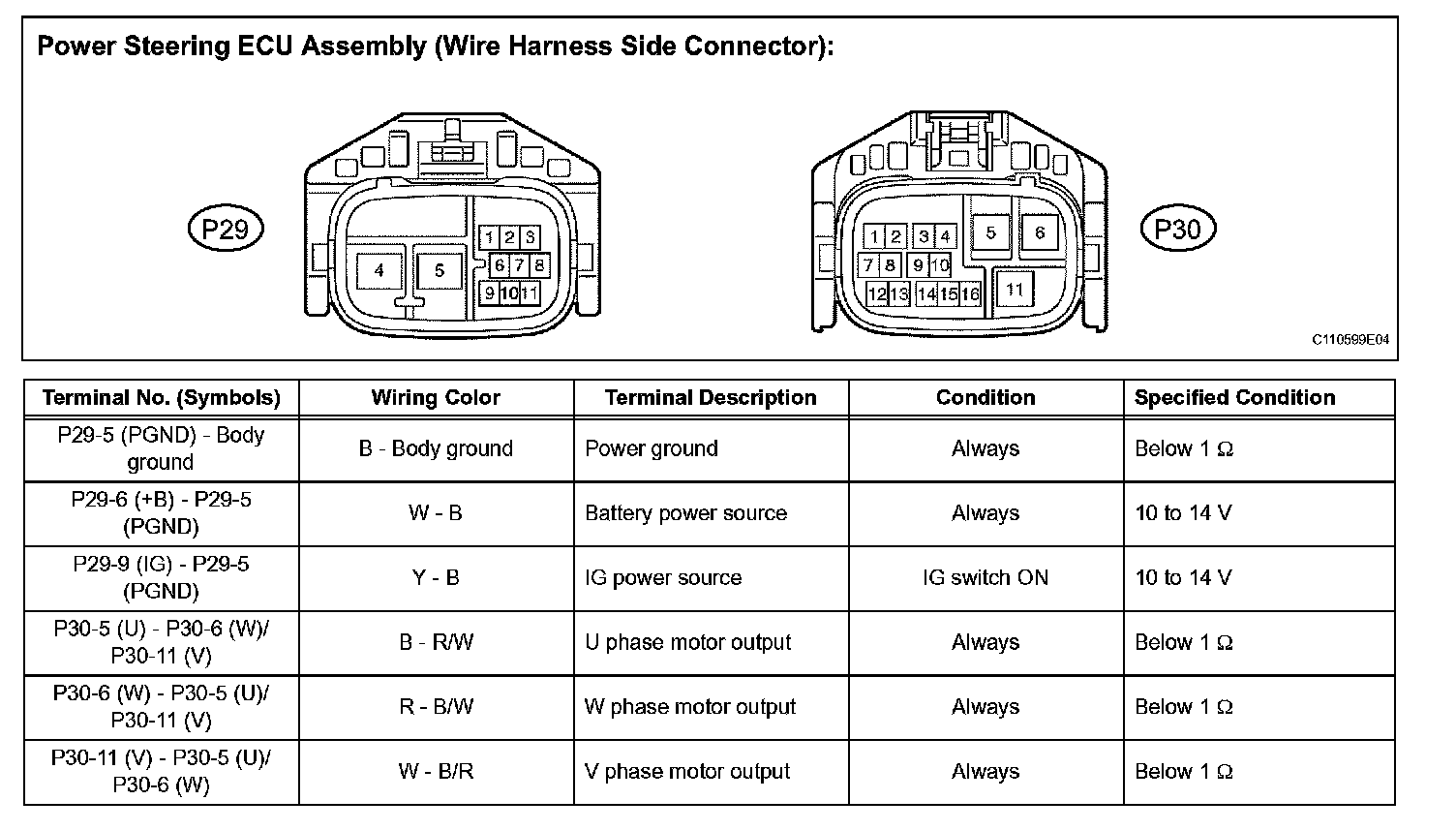

Inspect Wire Harness Side Connector:
