Toyota Truck
>>
1987
>>
Pickup 2WD L4-2366cc 2.4L SOHC Turbo (22R-TE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

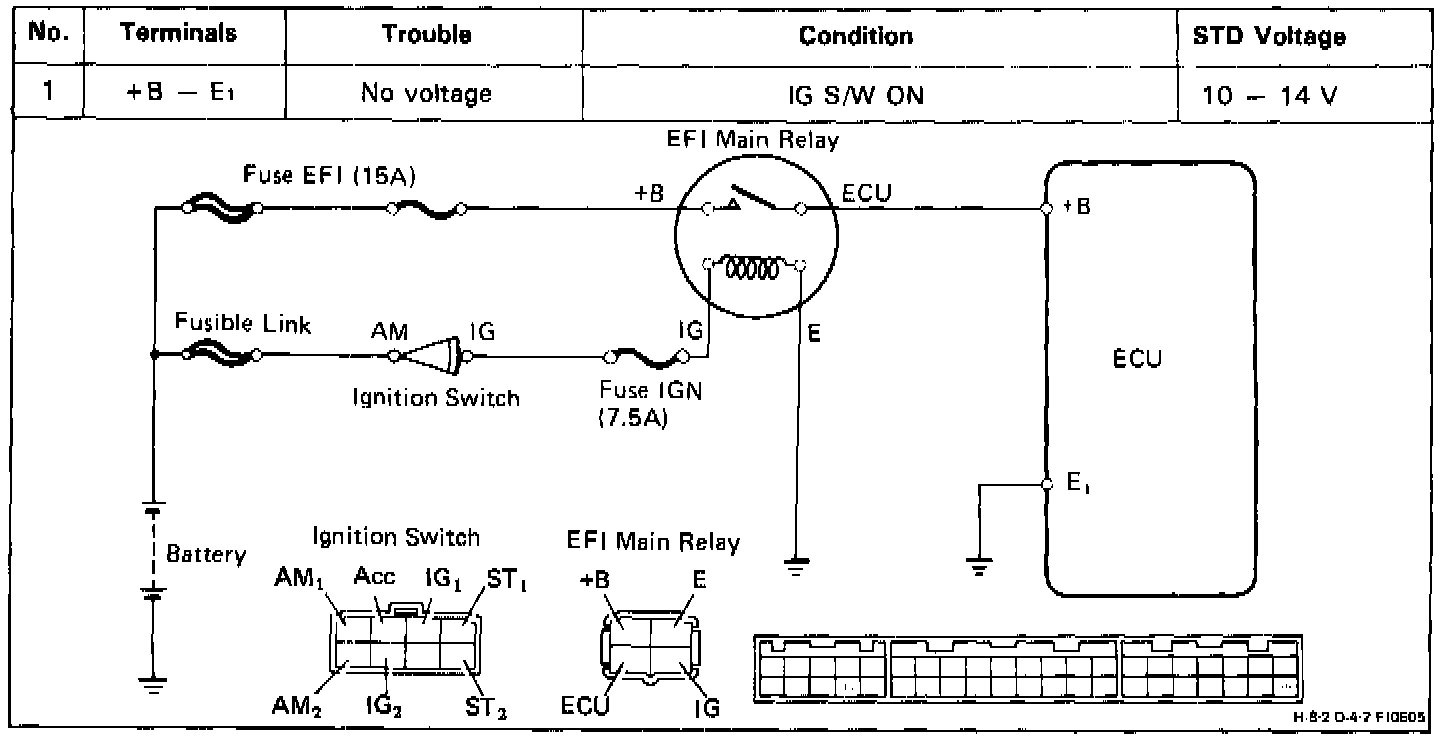

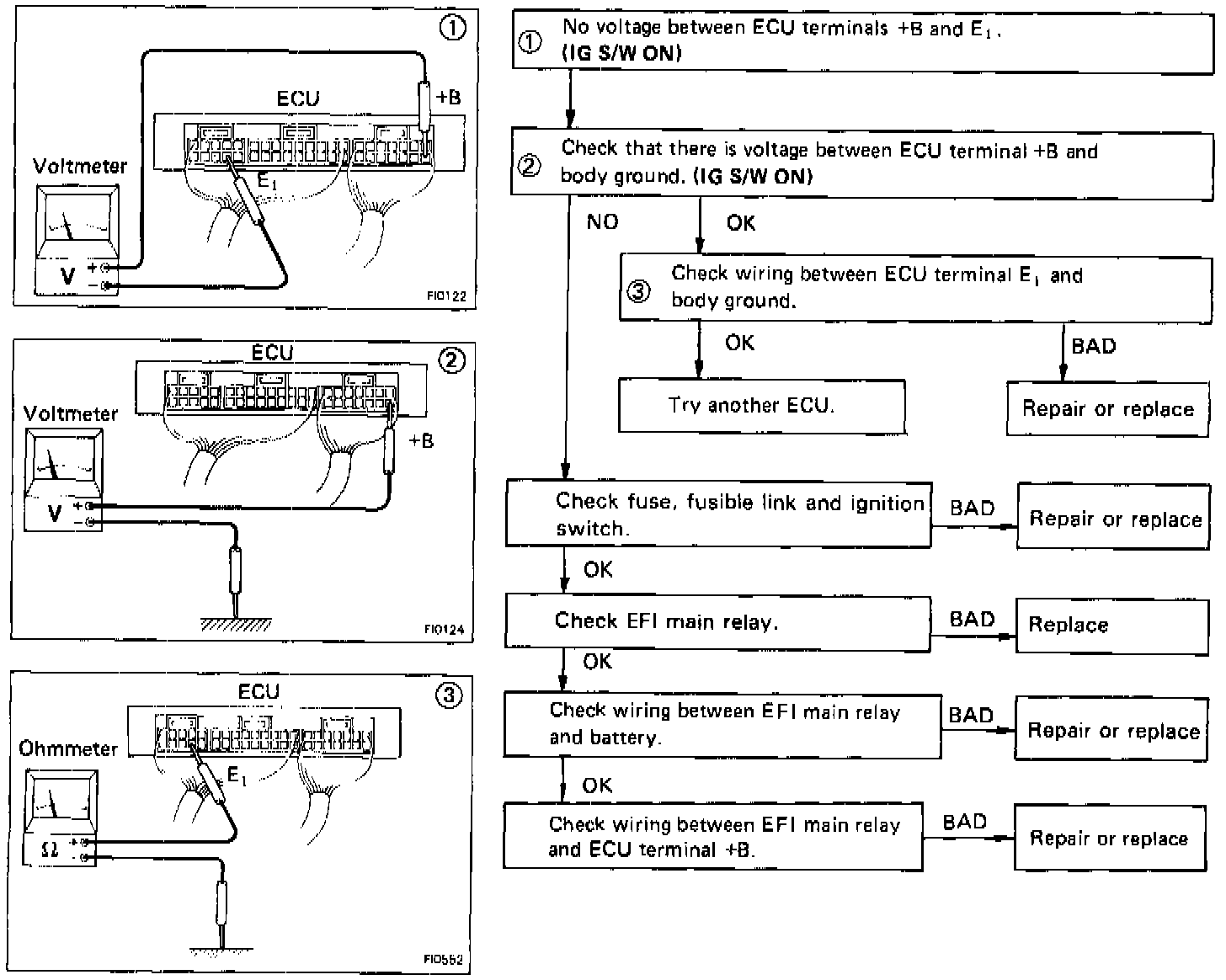

Test No. 1
Test No. 1 Summary:
+B - E1:
