Resonator: Service and Repair

Resonator Chamber

REMOVAL
Set the vehicle on a lift.
Remove the air intake duct.
Remove the air cleaner lower case.

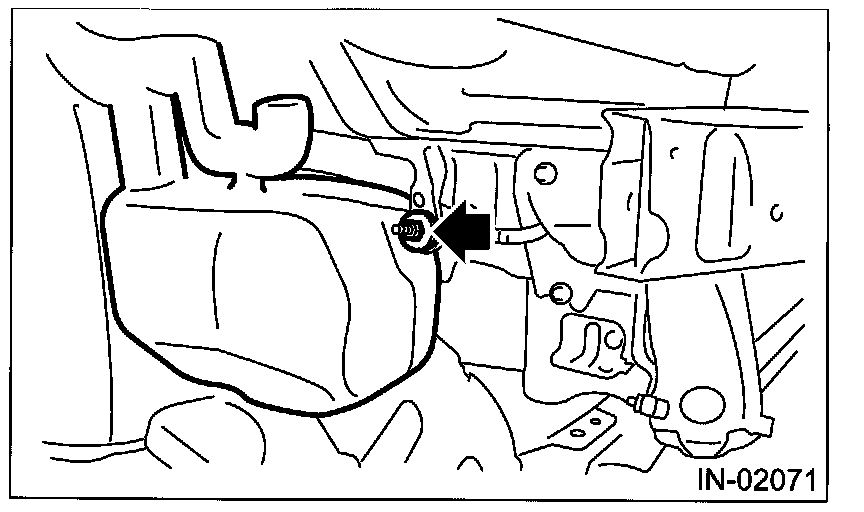

Remove the resonator chamber mounting nut on the right side of engine compartment.







Remove the front wheel RH, and then lift-up the vehicle.
Remove the front mudguard RH.

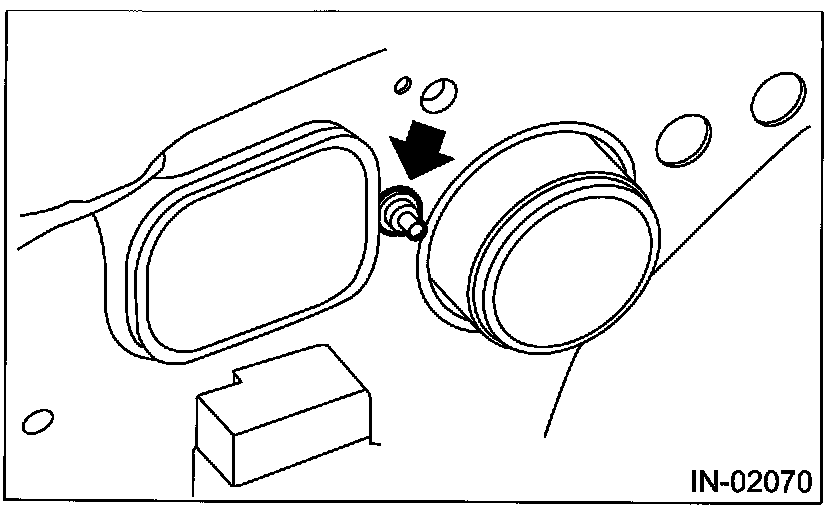

Remove the resonator chamber (A) from inside front fender.







INSTALLATION
Install in the reverse order of removal.

Tightening torque: 7.5 Nm (0.76 kgf-m, 5.5 ft-lb)
