Manual Selector

REMOVE OR DISCONNECT





1. Two screws and selector lever knob from selector lever.
2. Six screws and console from vehicle.
3. Manual selector illumination bulb socket from manual selector cover.
4. Four screws and manual selector cover from selector lever.
5. One retainer clip, one clevis pin and shift select cable from selector lever.
6. Interlock cable end from key release plate on manual selector.
7. One bolt and interlock cable from selector assembly.
8. Shift lock solenoid electrical connector under carpet.
9. Raise and suitably support vehicle.
10. Four selector lever assembly housing seat retaining nuts.
11. Lower vehicle.
12. Selector lever housing and selector lever from floor.

INSTALL OR CONNECT
1. Selector lever housing and selector lever to floor.
2. Raise and suitably support vehicle.
3. Four selector lever assembly housing seats retaining nuts.

Tighten
- All four selector lever assembly housing seat nuts to 16 N.m (11.5 lb. ft.).

4. Lower vehicle.
5. Shift lock solenoid electrical connector under carpet.
6. Interlock cable to manual selector.
7. Tighten interlock cable bolt. For adjustment procedure, refer to Interlock Cable.
8. Interlock cable end into key release plate on manual selector.
9. Shift select cable to selector lever; secure with one clevis pin and one retainer clip. For adjustment procedure, refer to Shift Select Cable.

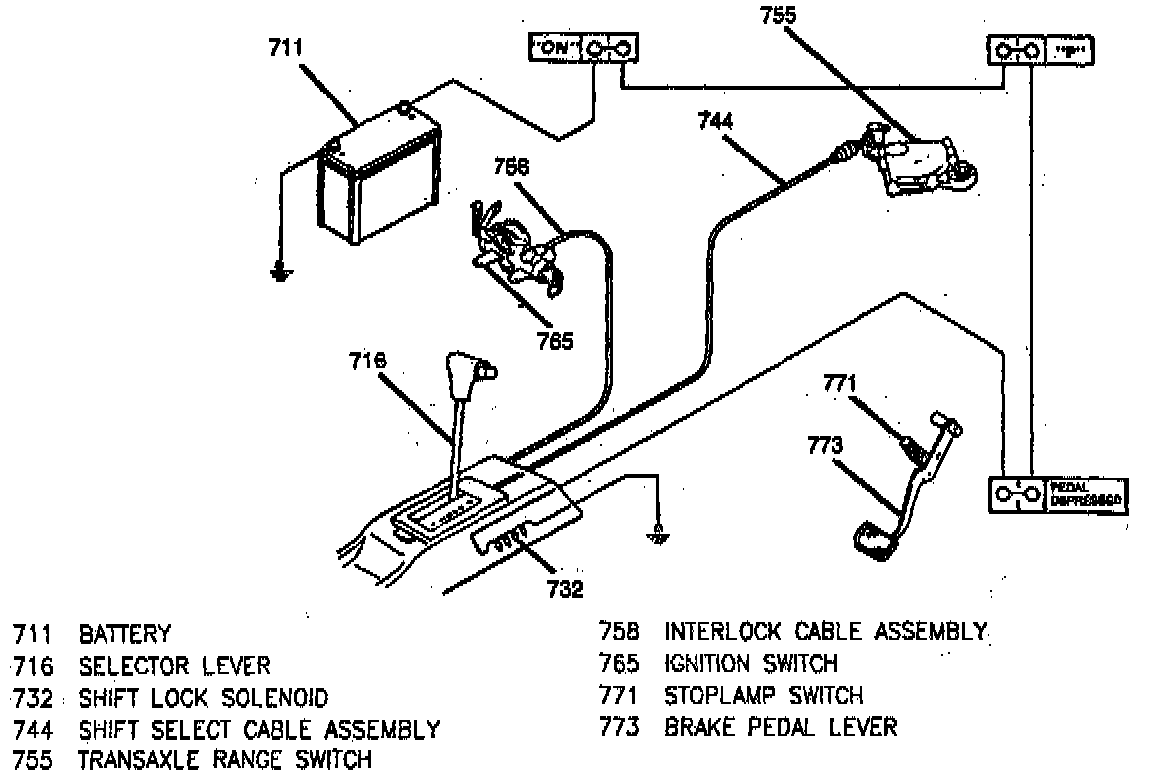

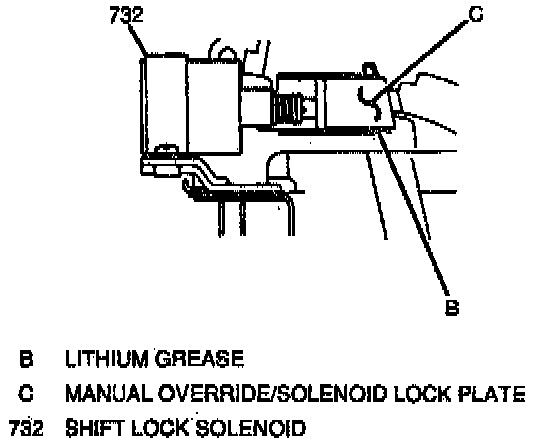

10. Apply lithium grease under solenoid lock plate in position "B."
11. Manual selector cover to selector lever; secure with four screws.
12. Manual selector cover illumination bulb socket to cover.
13. Console into vehicle; secure with six screws.
14. Selector lever knob to selector lever; secure with two screws.
