Refrigerant Pressure Sensor / Switch
>>
Locations
>>
A/C High Pressure Switch
A/C High Pressure Switch

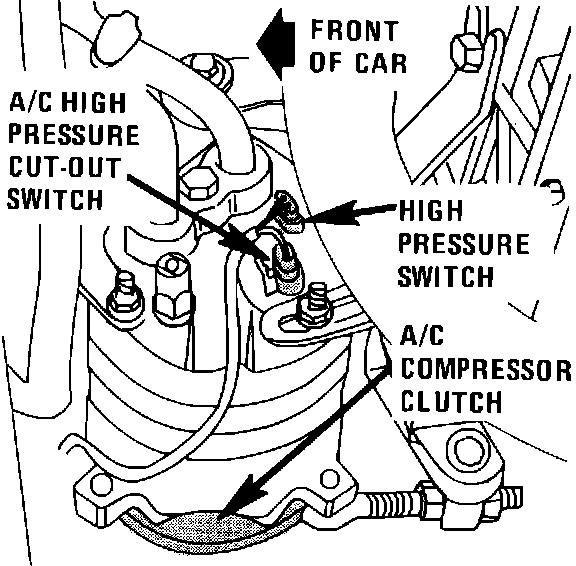

Underside Of Engine:
The A/C high pressure switch is mounted in the left side of the A/C compressor.
