Home >> Plymouth Truck >> 1998 >> Voyager V6-201 3.3L VIN R SMFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> Schematic Diagrams >> Body Control Module

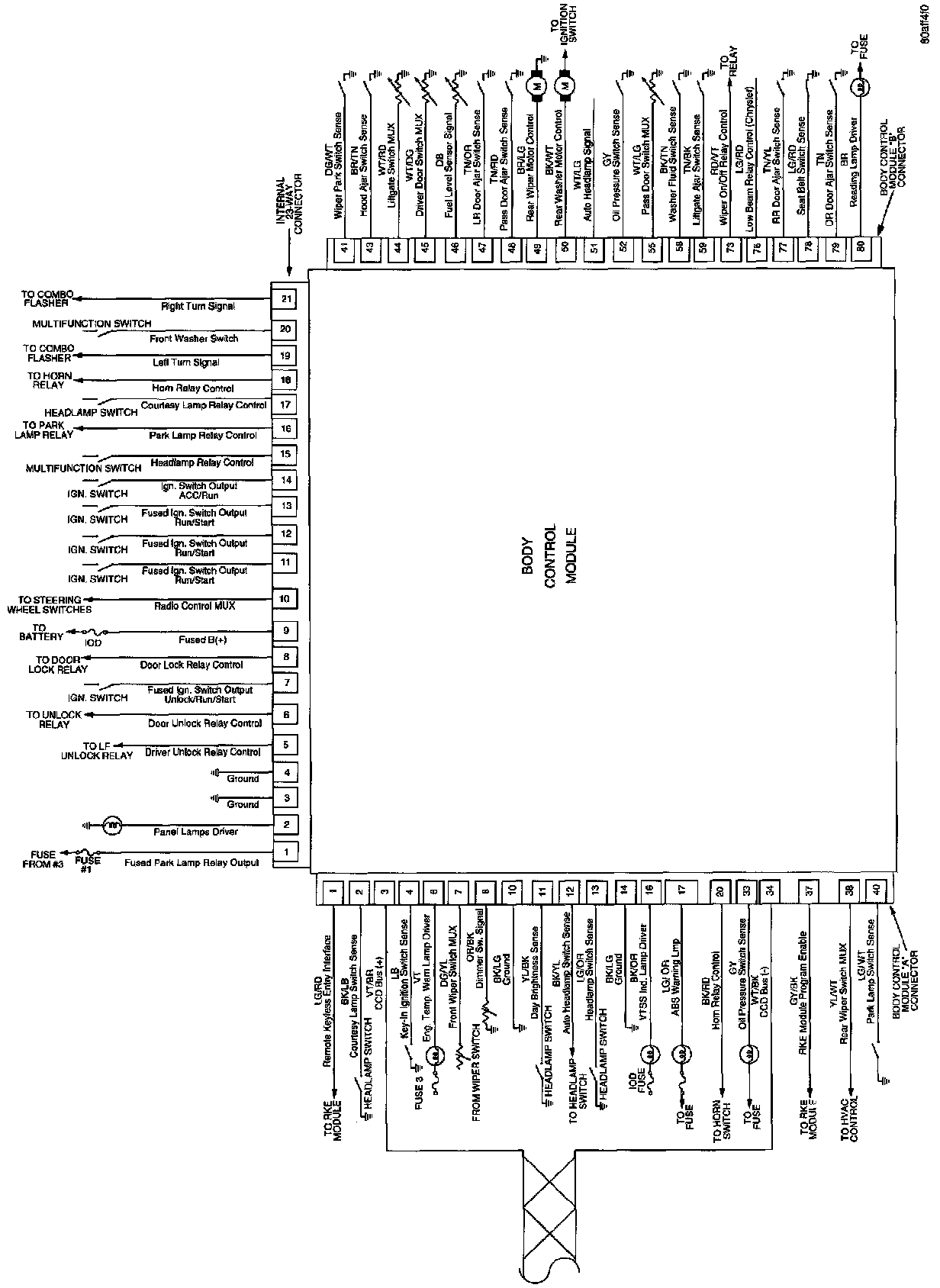

Body Control Module
