Power Window

WINDOW REGULATOR







CAUTION: Make sure to disconnect the power window switch when working inside doors. When operated, the Express Down feature allows the door glass to drop very quickly which could cause personal injury.

The express down window feature is available only on Sedan driver's windows. Depressing the down witch greater than 0.3 seconds activates the express feature. Quickly tapping the down switch will move the window down an increment at a time if you desire. There are two ways to stop the express feature as it is going down.
1. Press the down switch a second time, or
2. Press the up switch once.

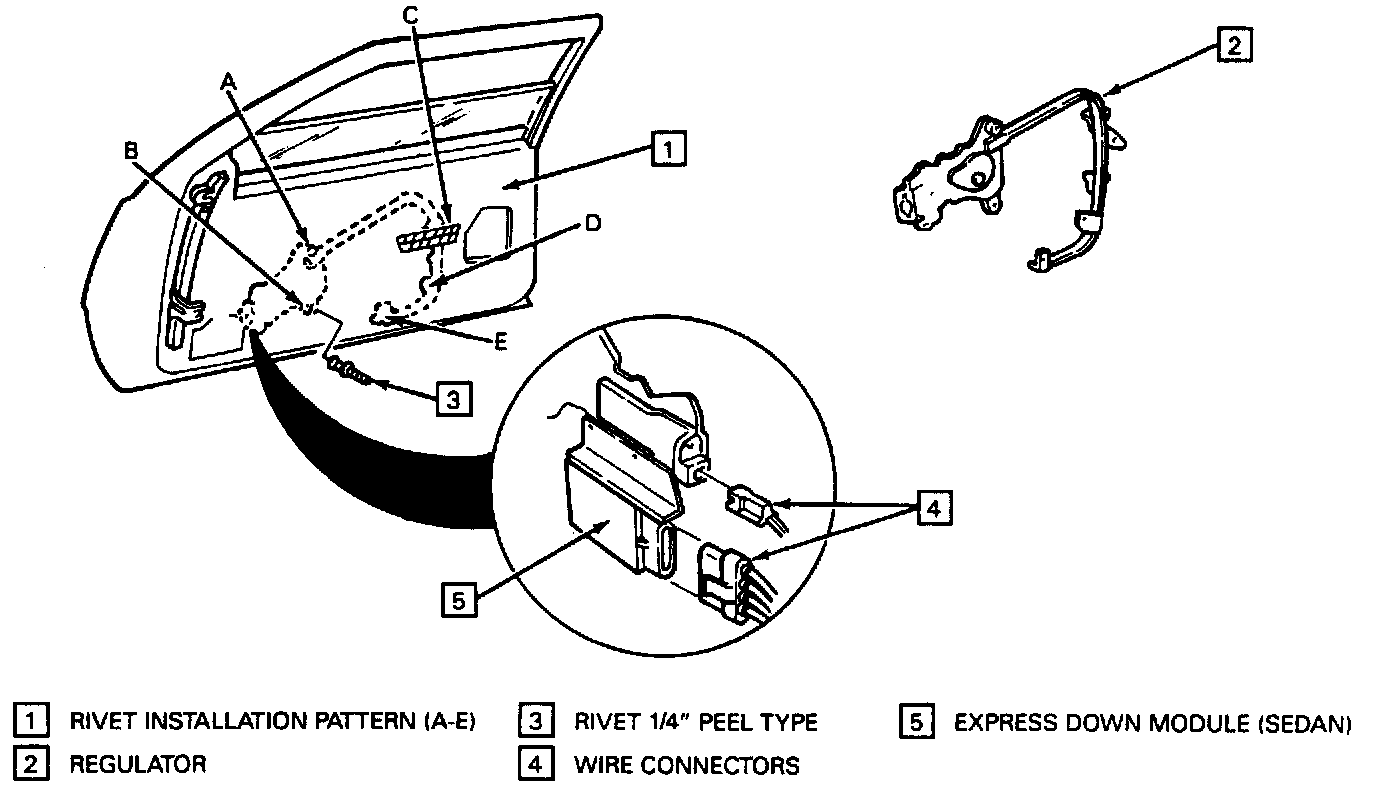

REMOVE OR DISCONNECT
1. Trim panel and water deflector.
2. Regulator to door inner panel rivets using a 1/4" drill bit. Punch out rivet centers, then performing drilling operation.
3. Regulator guide and block assembly from lower sash channel by positioning window half way down, and pushing regulator forward. Once removed, tape glass in full up position.
4. Wire connectors.
5. Regulator through access hole.

INSTALL OR CONNECT
1. Position regulator to door through access hole.
2. Guide and block assembly to regulator.
3. Wire connectors.
4. Regulator to door using 1/4" peel type rivets.
5. Check window operation.
6. Water deflector and trim panel.
