Electrical Diagrams

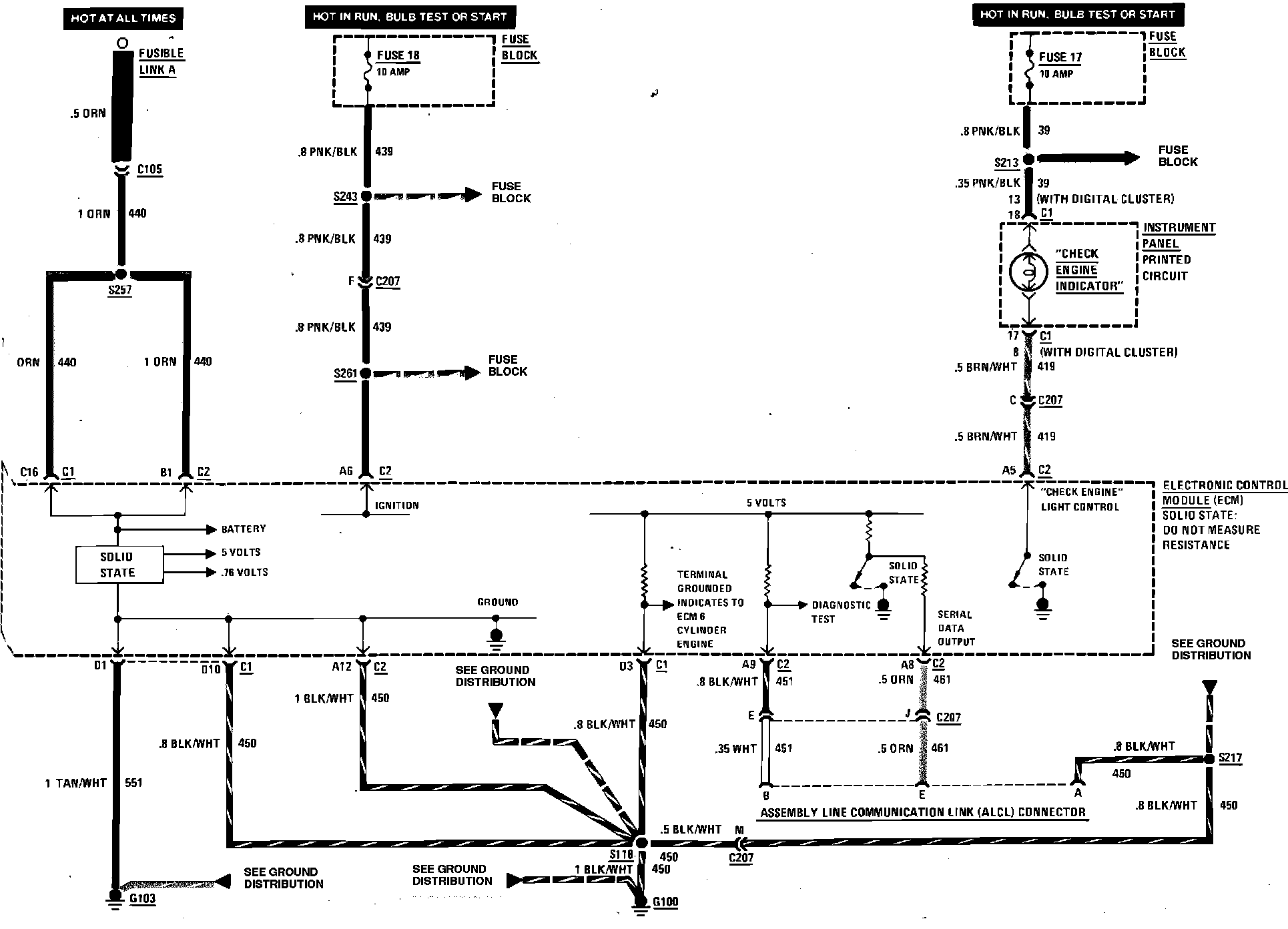

Multi Port Fuel Injection (Check Engine Indicator, Power & Grounds) Wiring Circuit:
