ECM Terminals and Reference Value
ECM Terminals and Reference ValuePREPARATION
ECM is located behind the glove box. For this inspection, remove glove box.

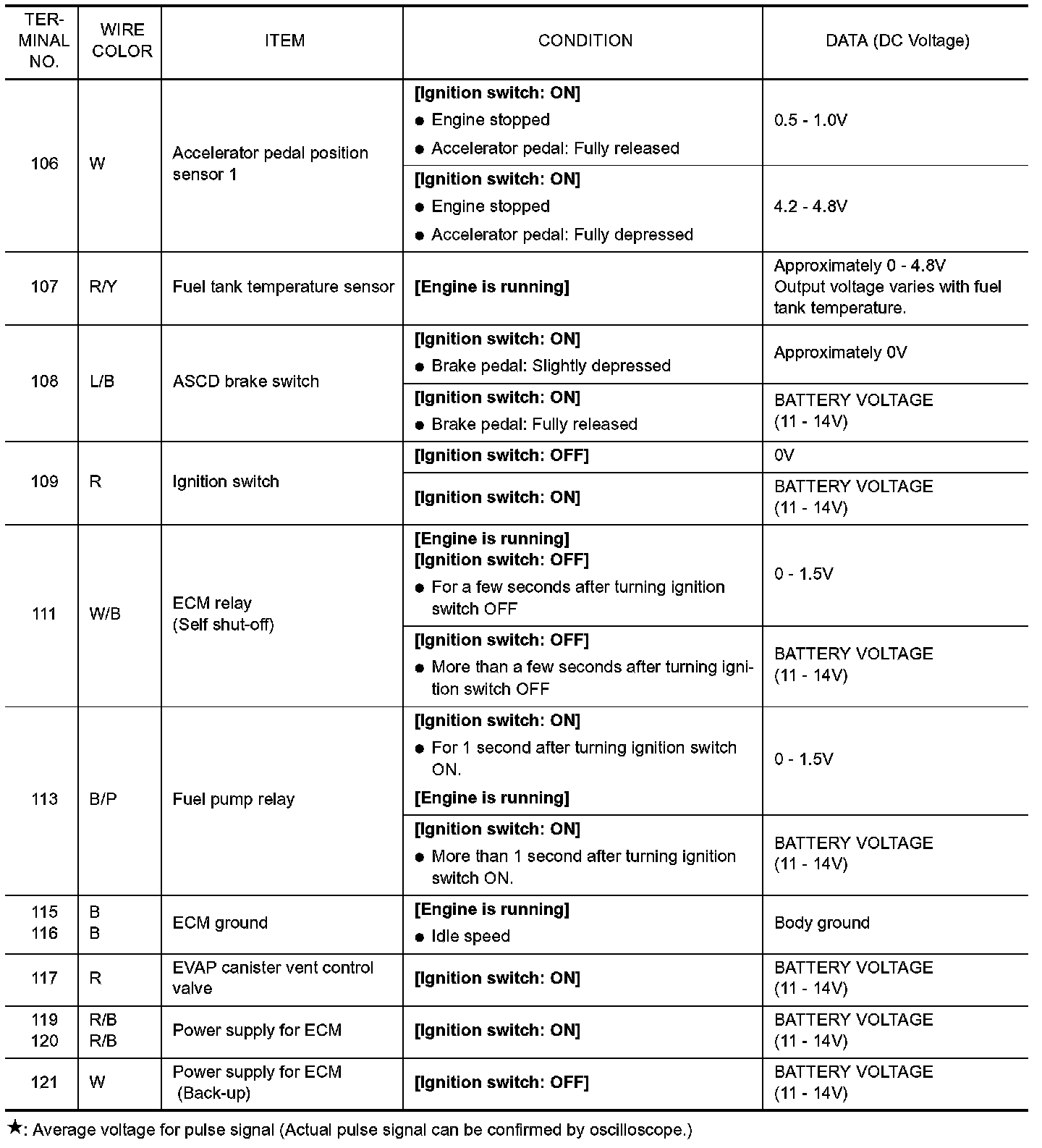

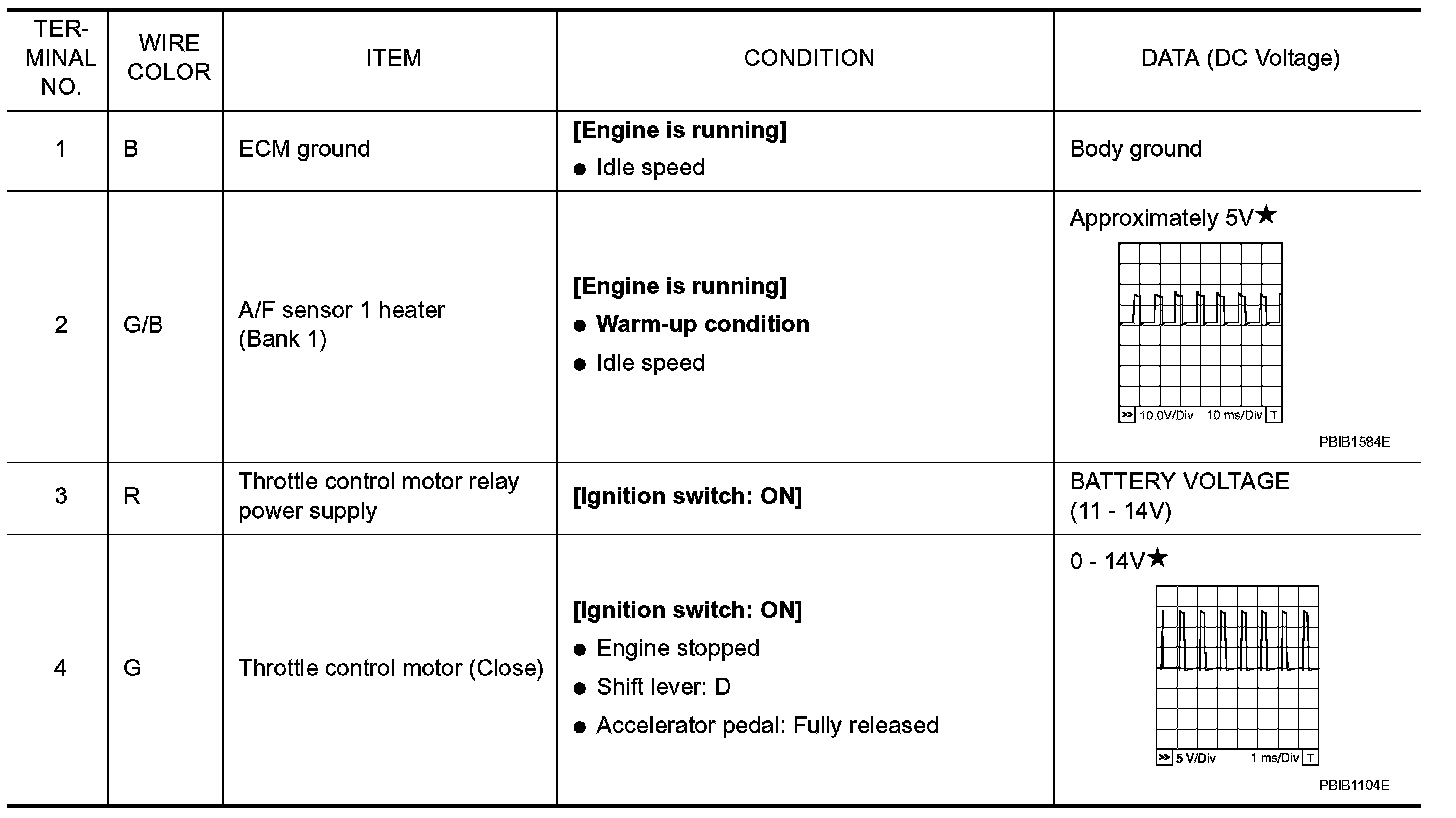

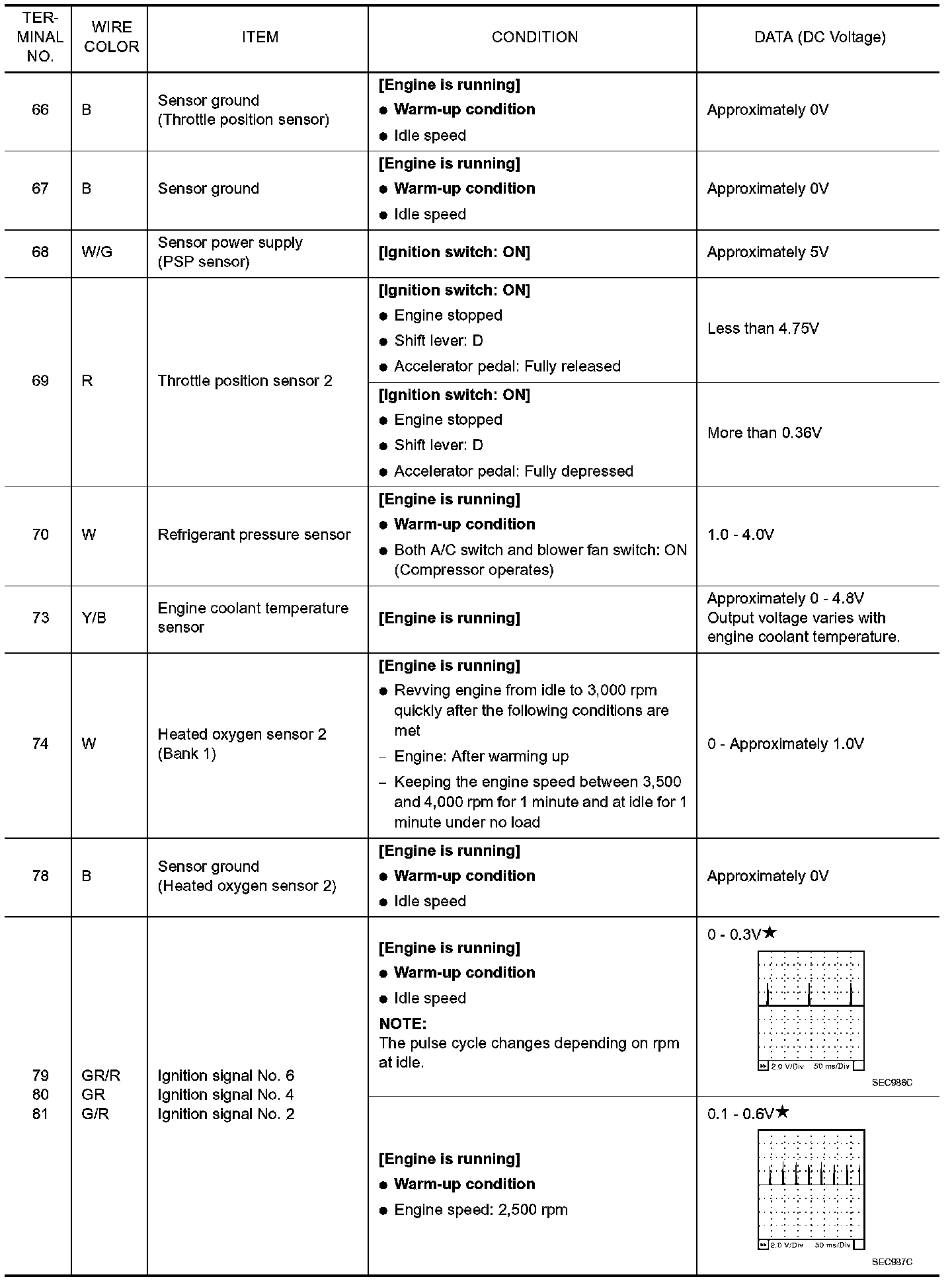

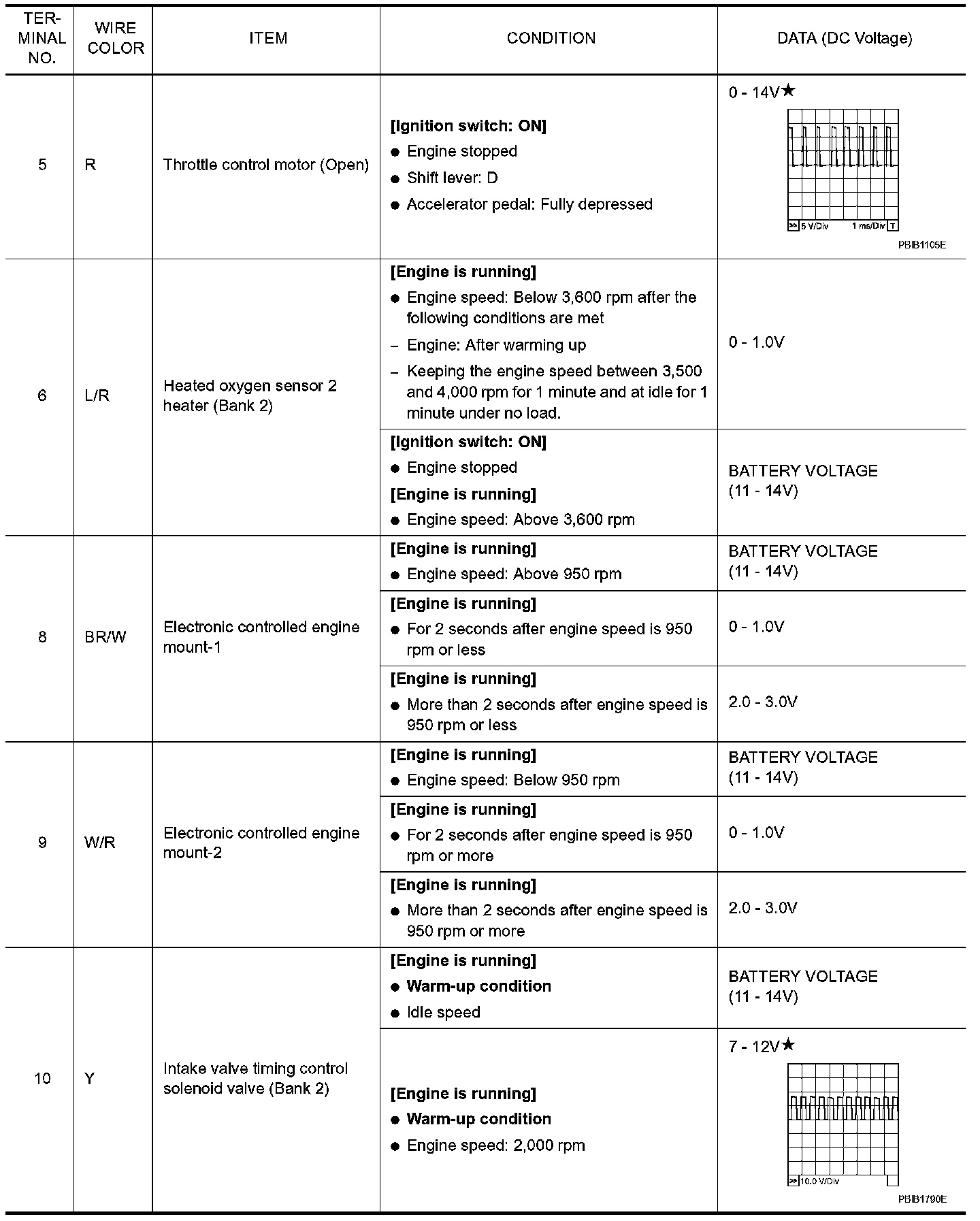

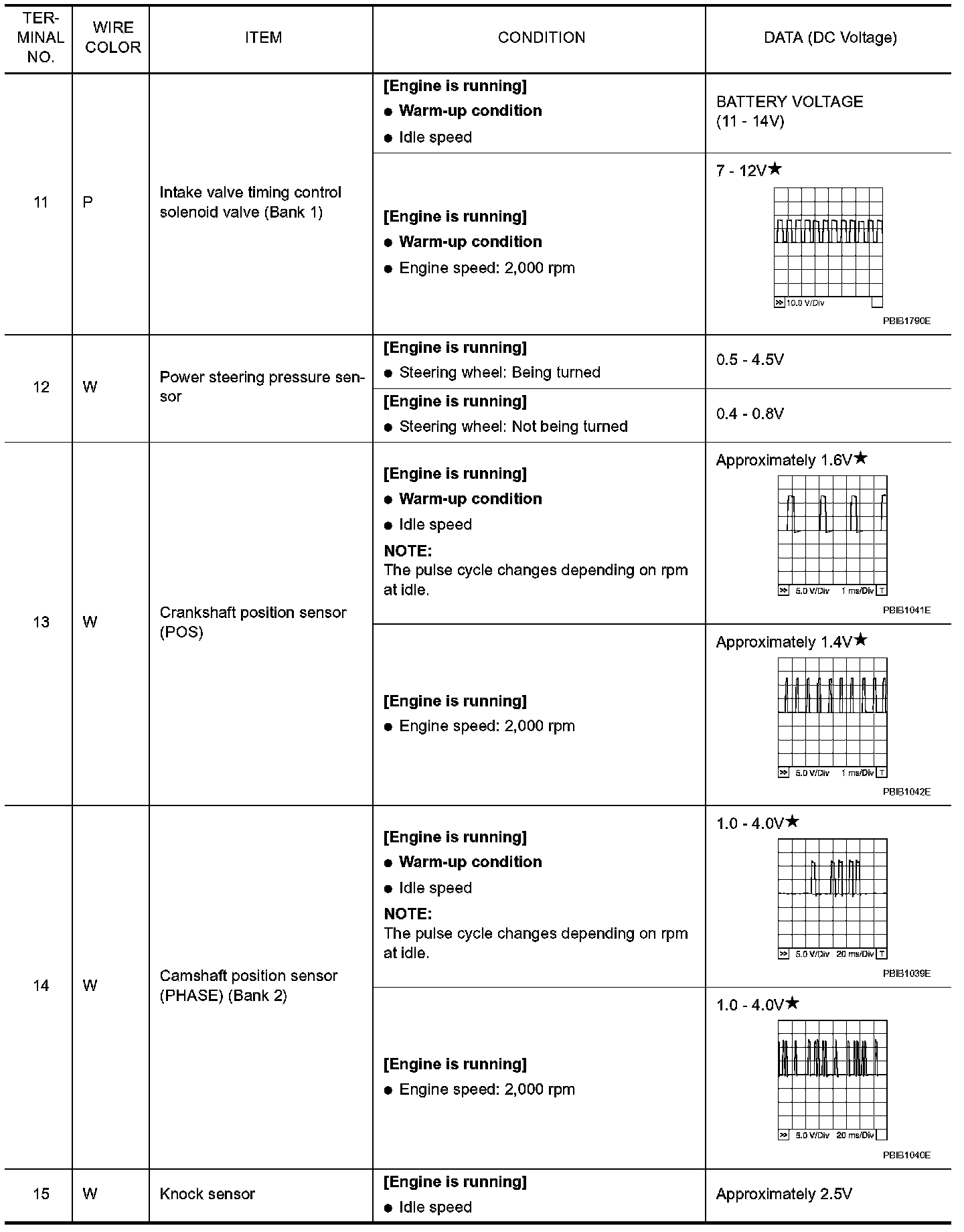

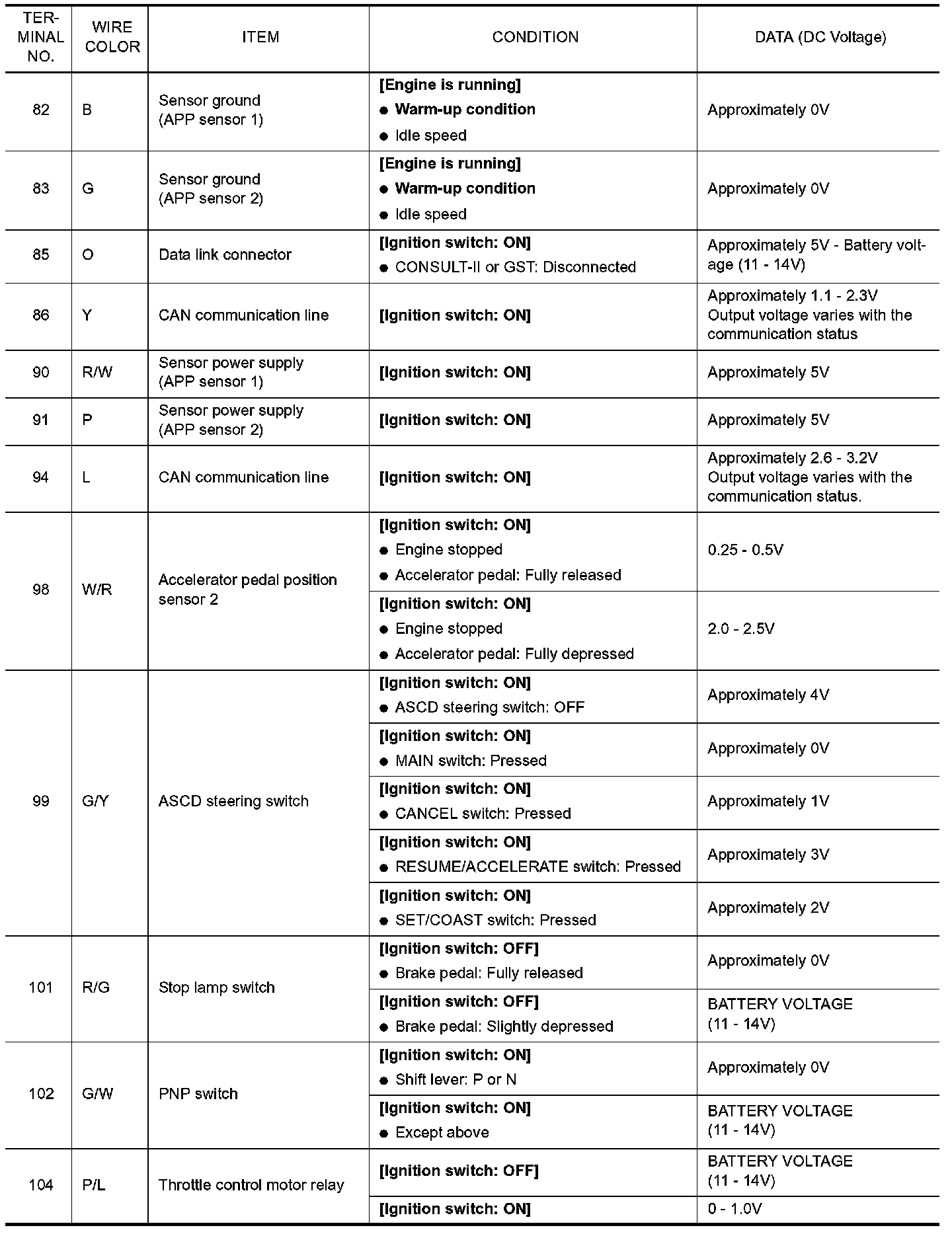

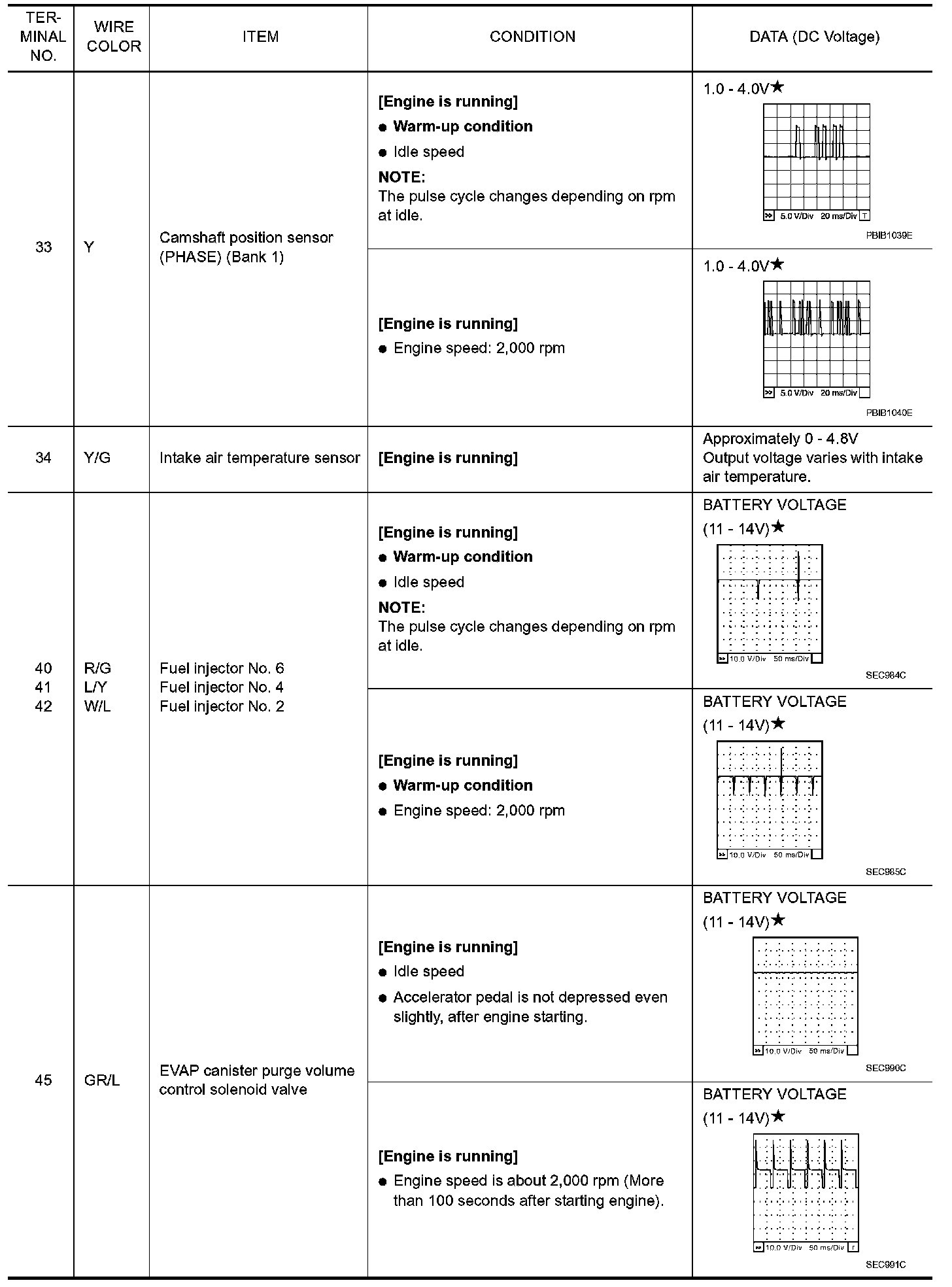

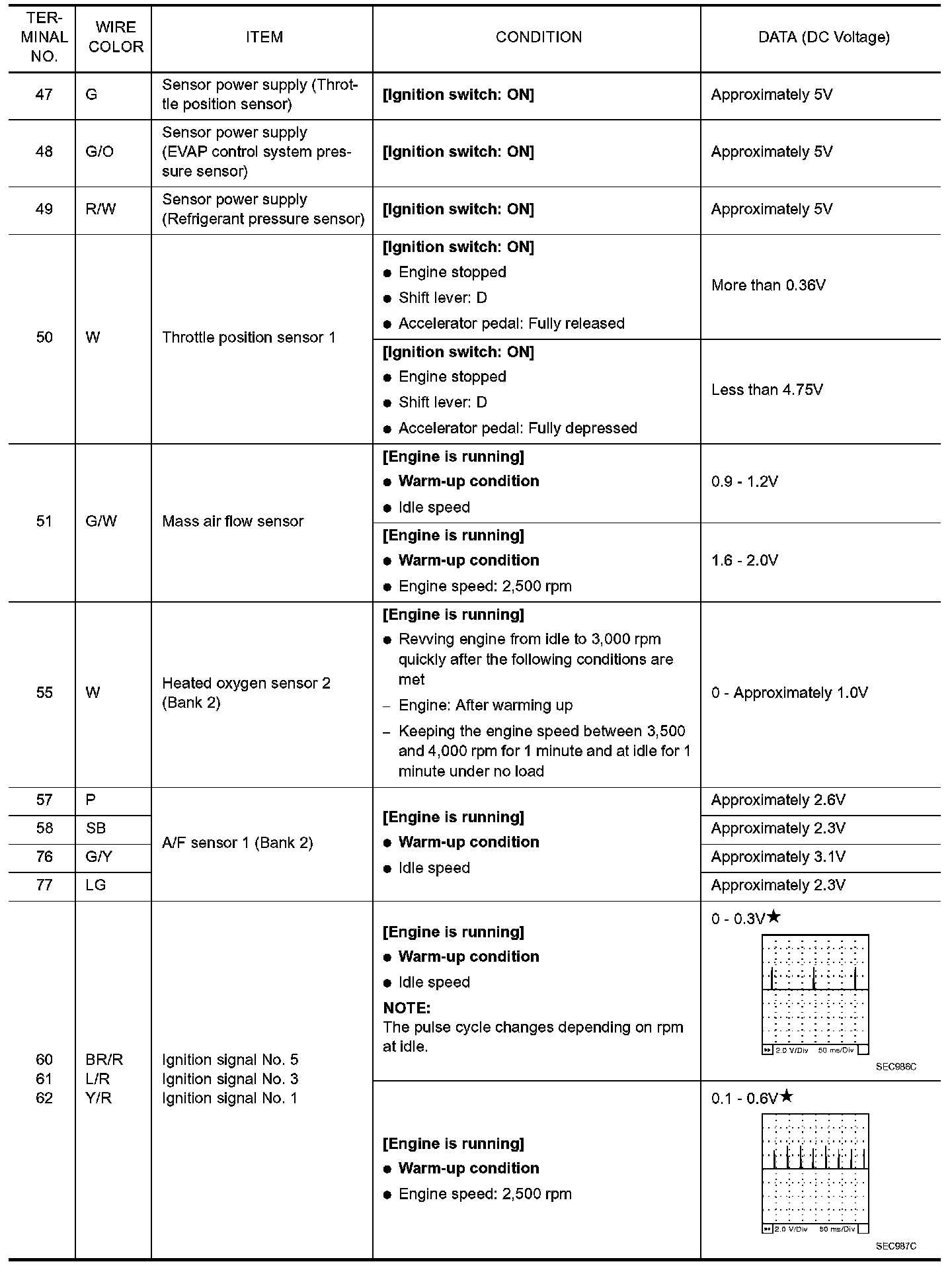

ECM INSPECTION TABLE

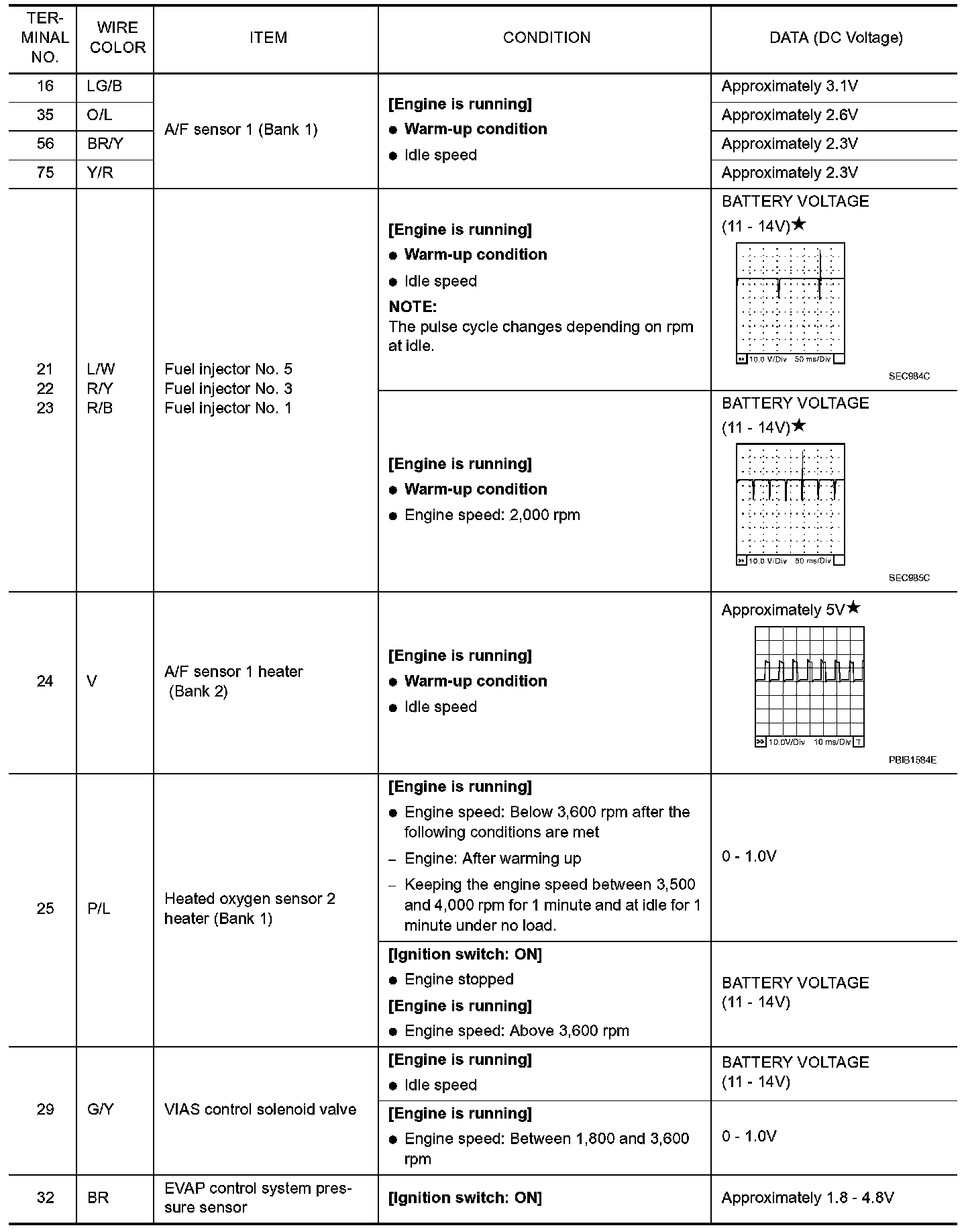

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.
CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
