Body Control Module: Service and Repair

Removal and Installation of BCM

REMOVAL




1. Remove Instrument driver lower panel.
2. Disconnect BCM connector.

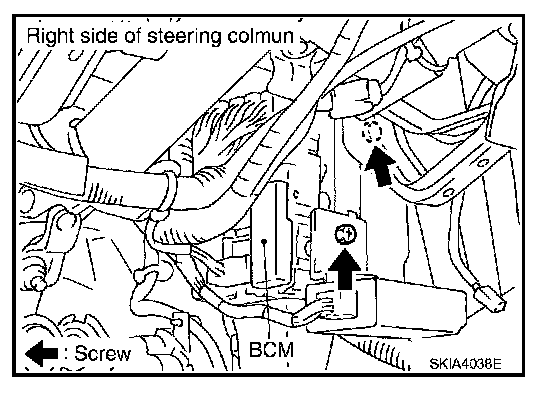

3. Remove screws to remove BCM.

INSTALLATION
Installation is the reverse order of removal.

NOTE:
When replacing BCM perform initialization of NATS system and registration of all NATS ignition key IDs. Programming and Relearning
