Data Monitor

DATA MONITOR MODE
Operation Procedure





1. Perform "CONSULT-II SETTING PROCEDURE" Refer to CVT-63, "CONSULT-II SETTING PROCEDURE". Consult-II Setting Procedure

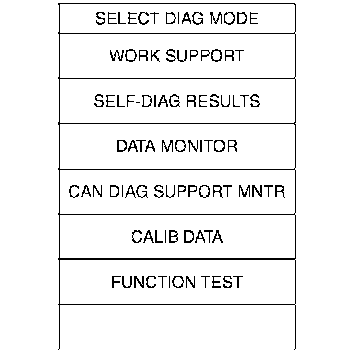

2. Touch "DATA MONITOR".

NOTE: When malfunction is detected, CONSULT-II performs "REAL-TIME DIAGNOSIS". Also, any malfunction detected while in this mode will be displayed at real time.

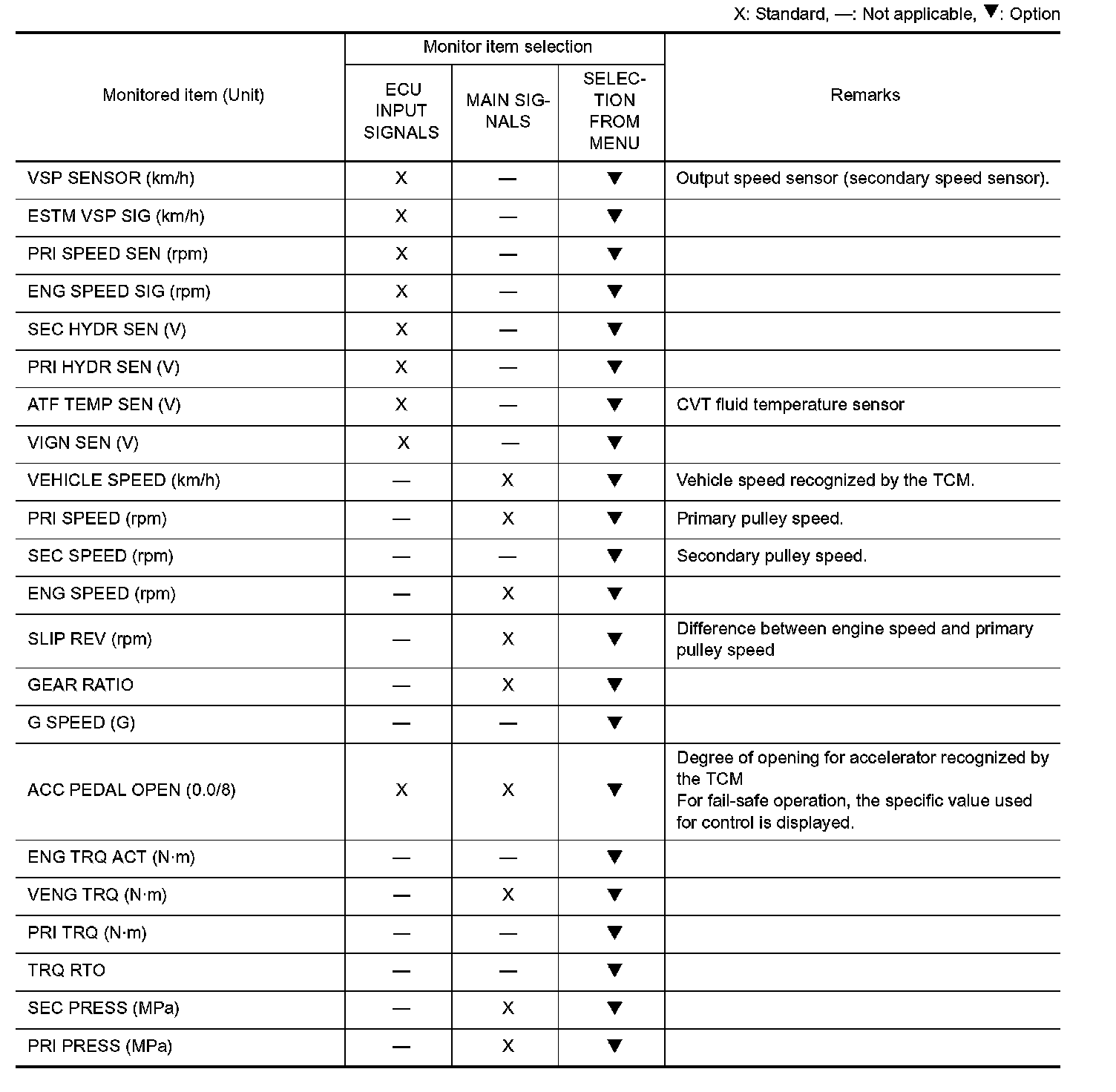

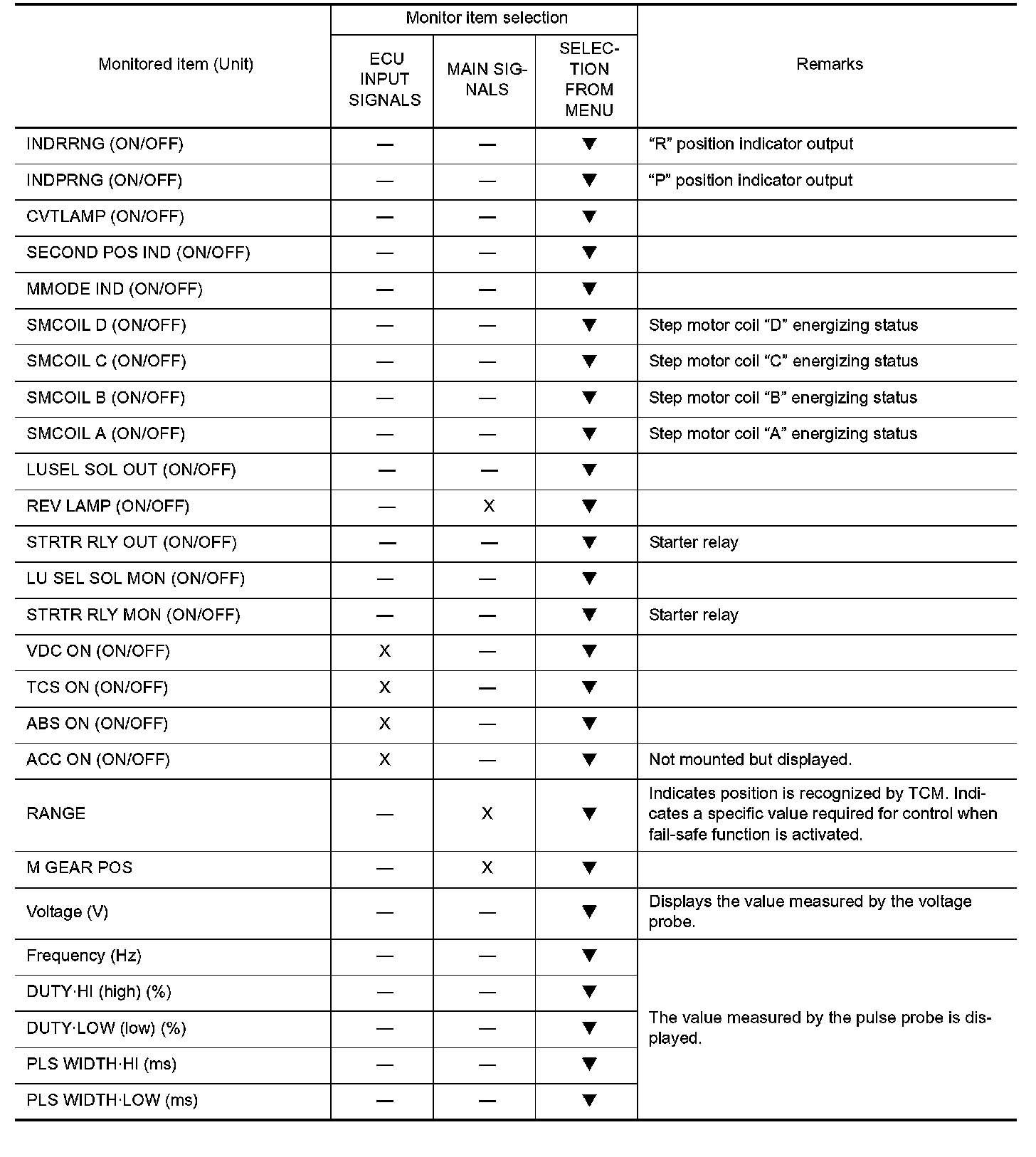

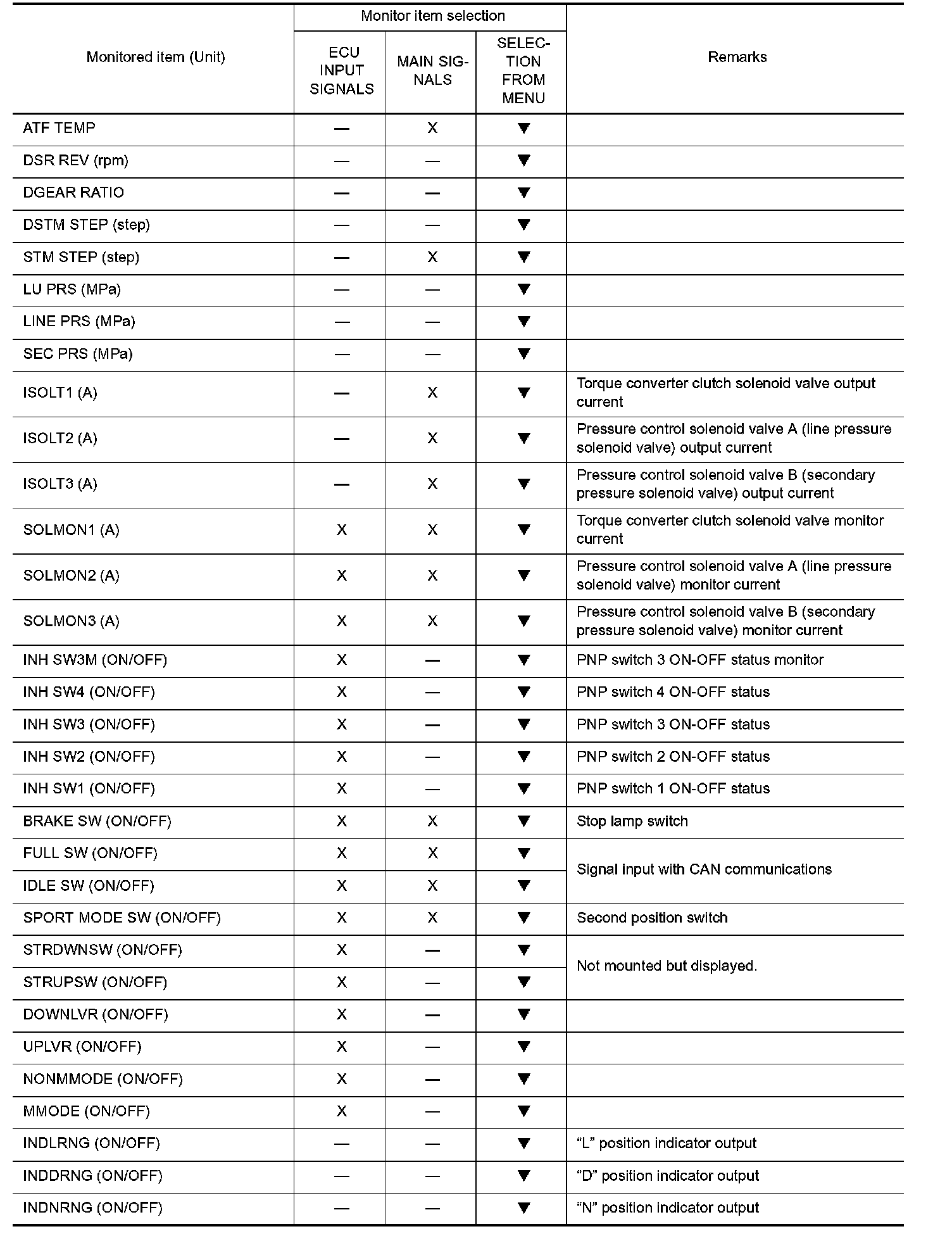

Display Items List
