Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

Component Inspection

ENGINE COOLANT TEMPERATURE SENSOR

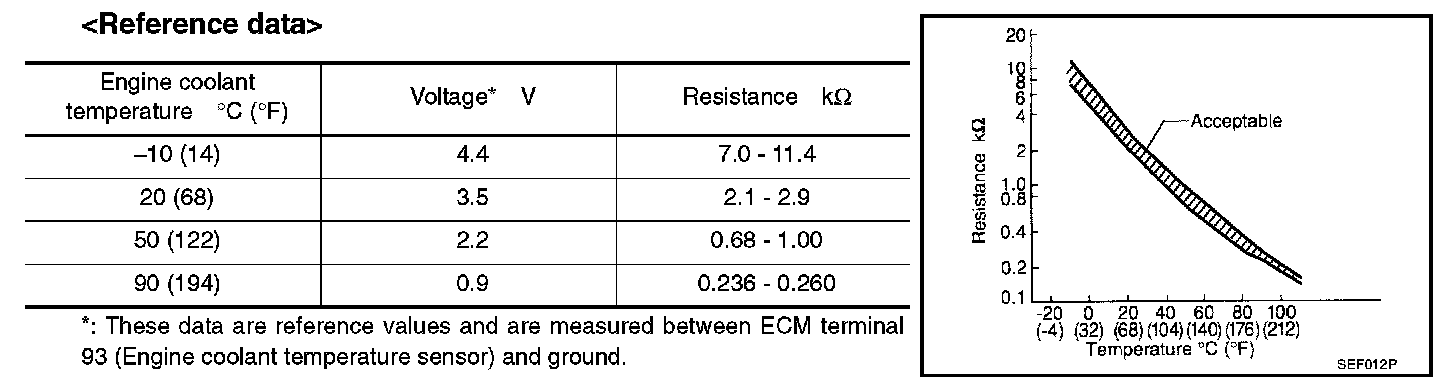

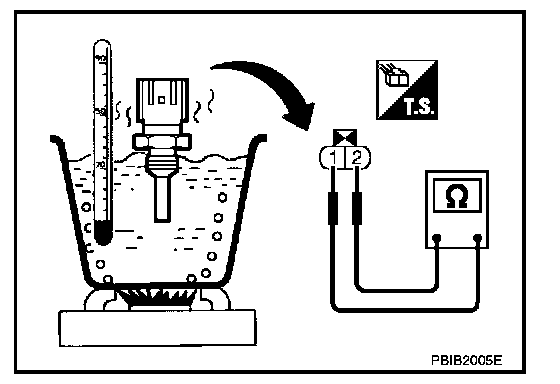

1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown.
2. If NG, replace engine coolant temperature sensor.

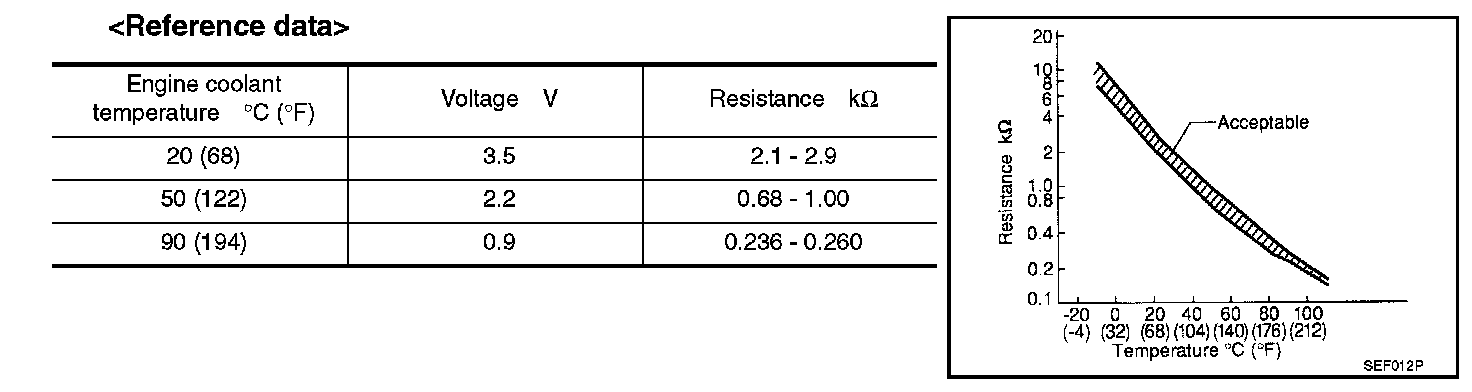

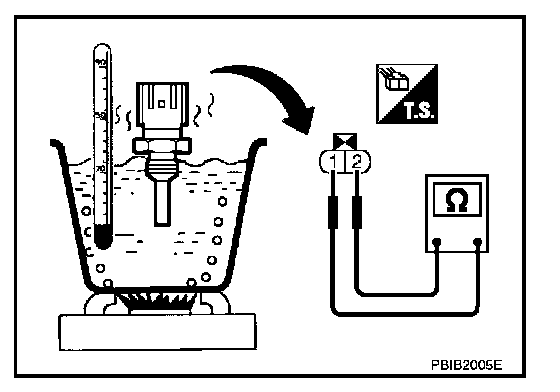

1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown.
2. If NG, replace engine coolant temperature sensor.

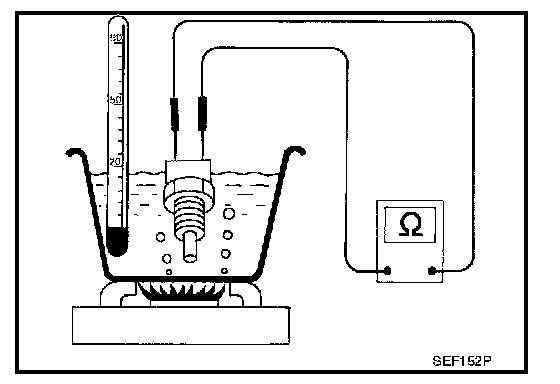

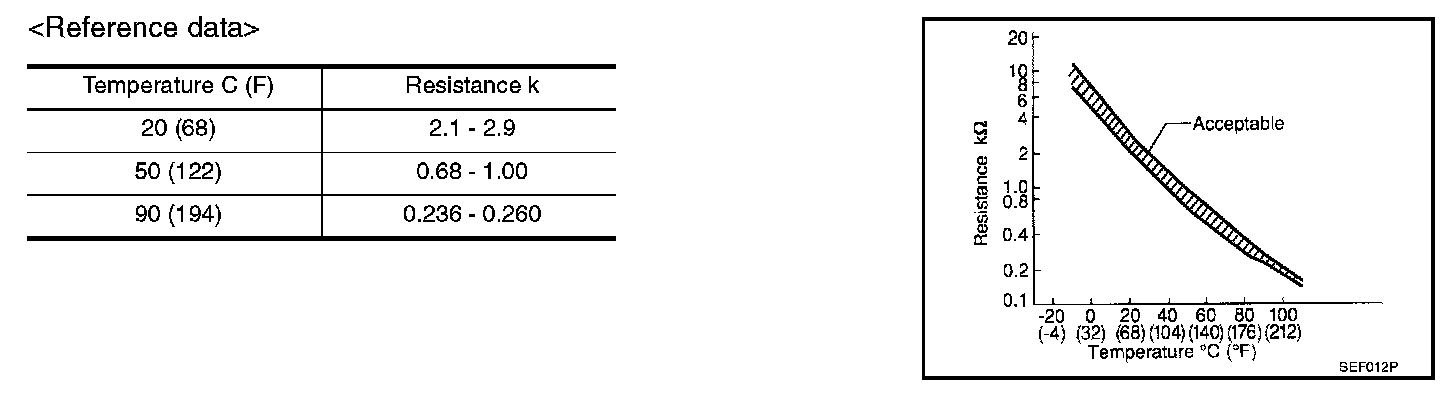

Check resistance as shown.
