Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun Truck
>>
2003
>>
Xterra 2WD L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

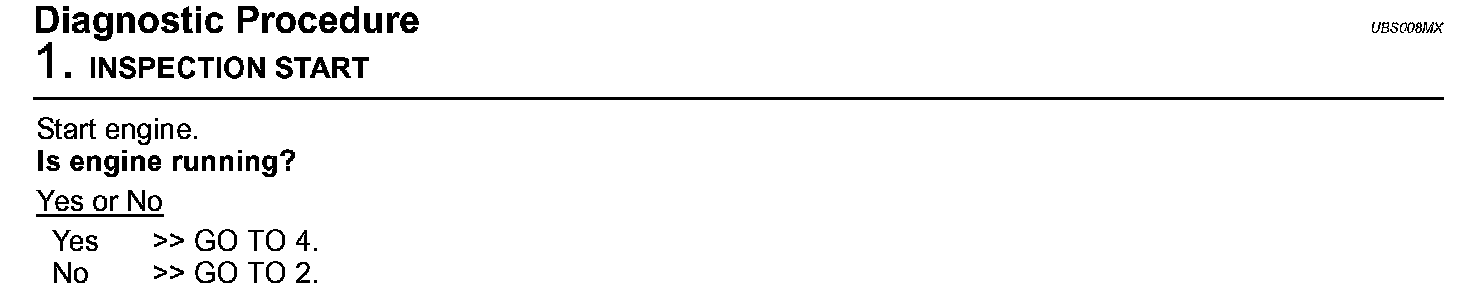

Diagnostic Procedure Step 1:

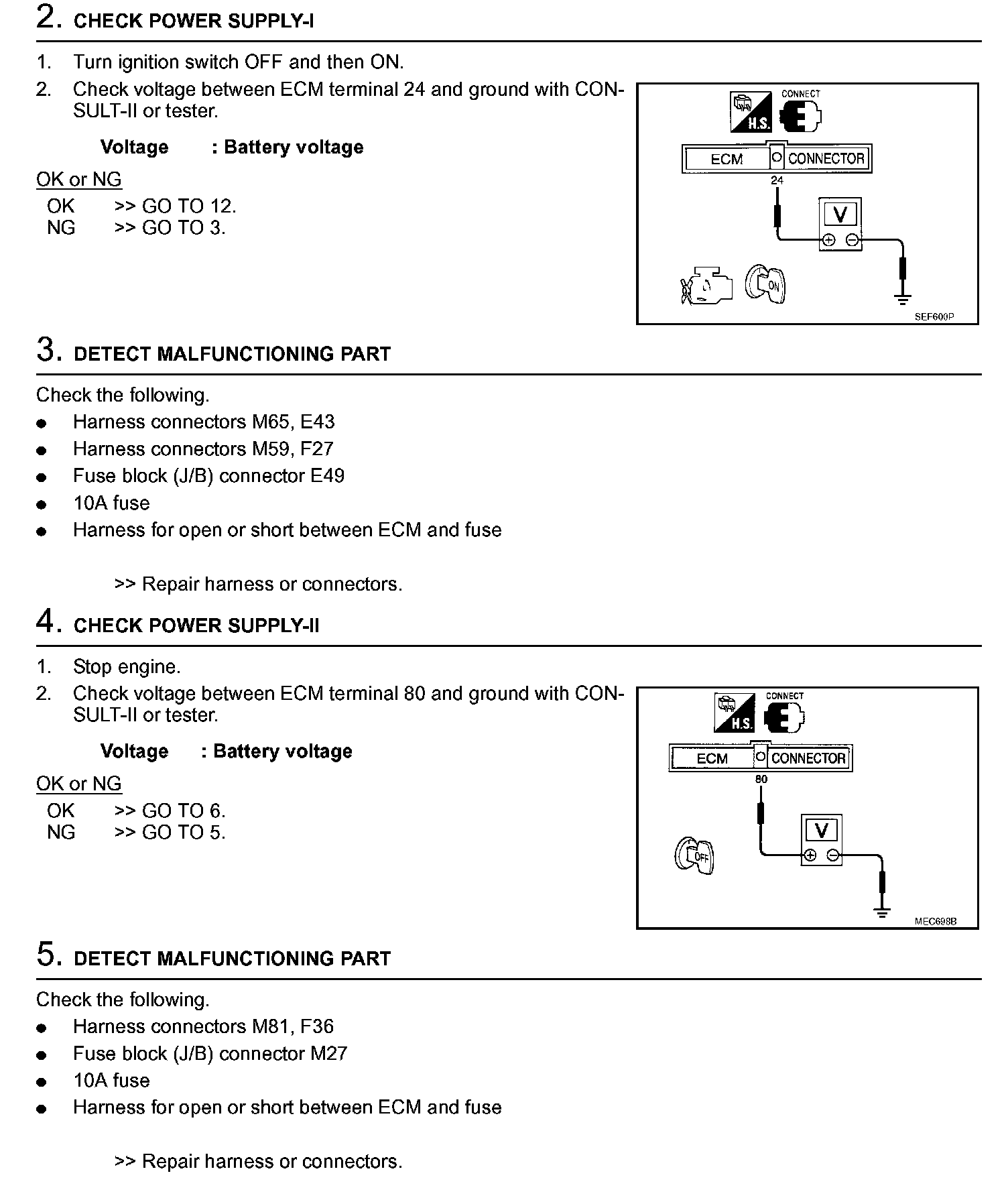

Diagnostic Procedure Step 2 - 5:

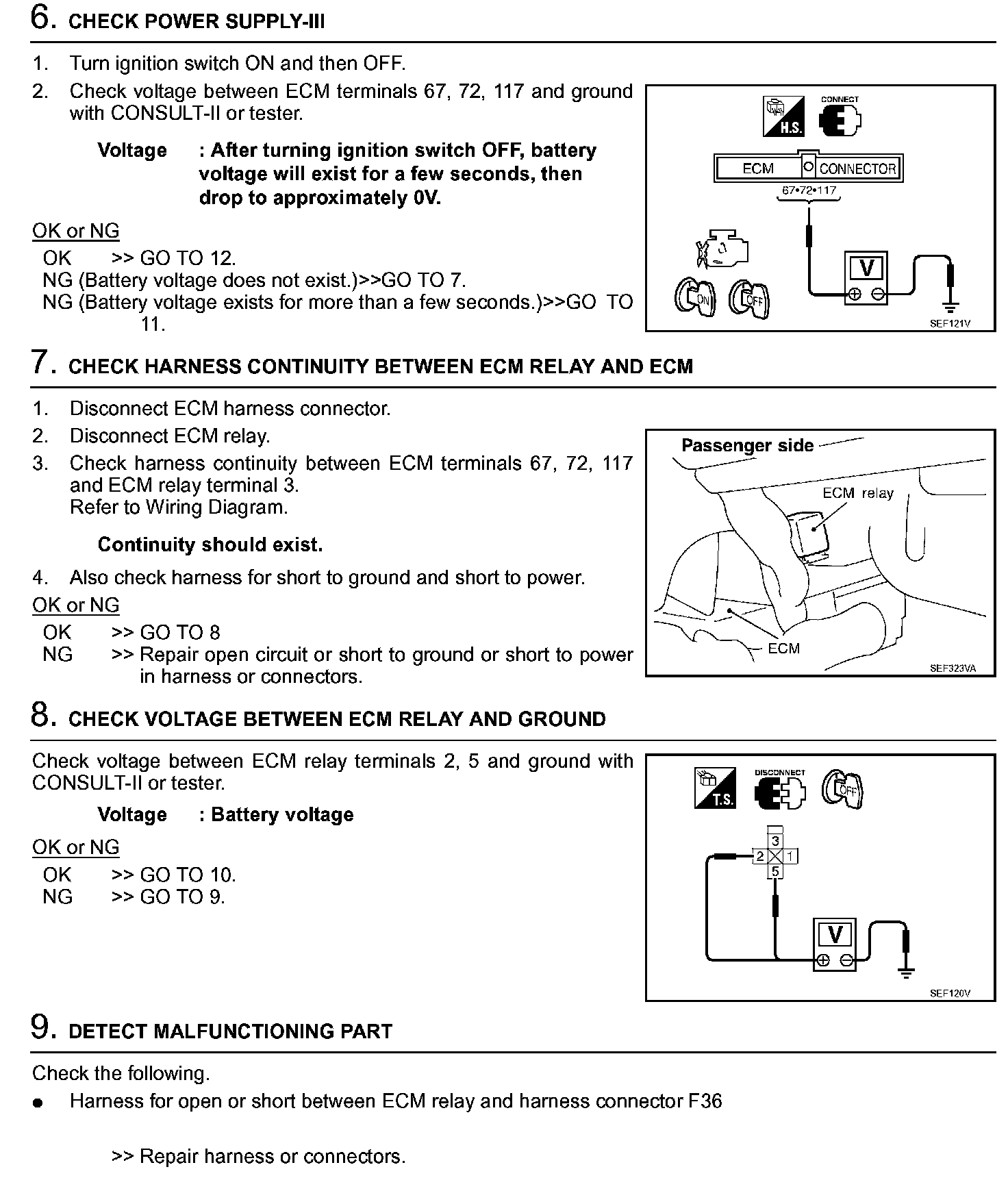

Diagnostic Procedure Step 6 - 9:

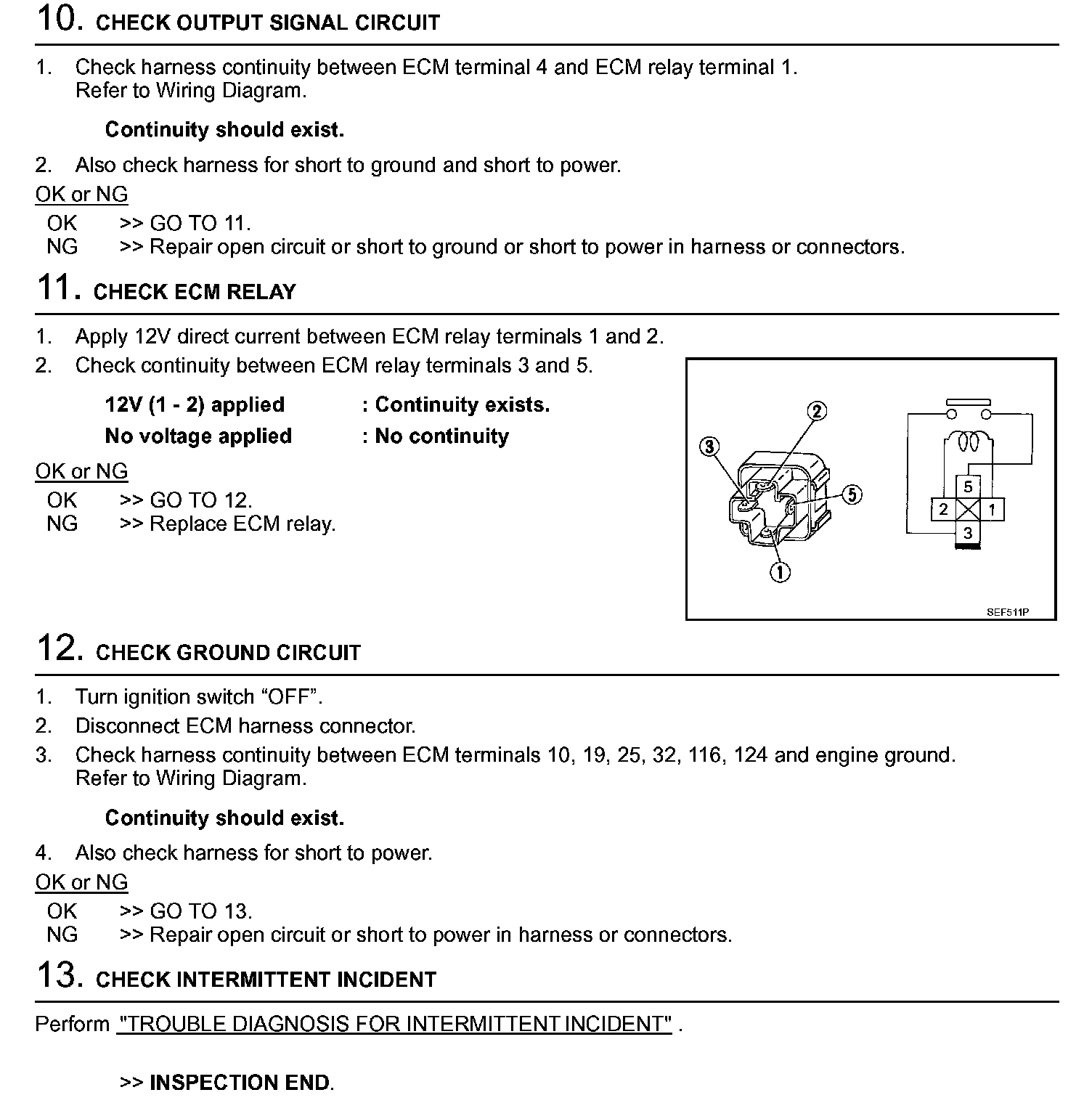

Diagnostic Procedure Step 10 - 13:
