Component Locations

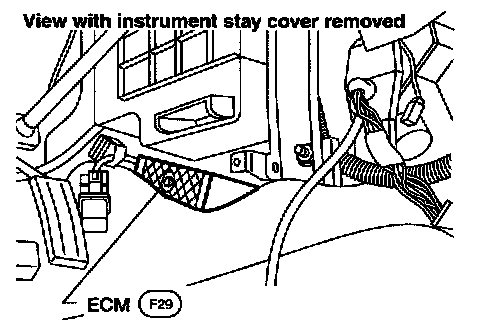

ECM:

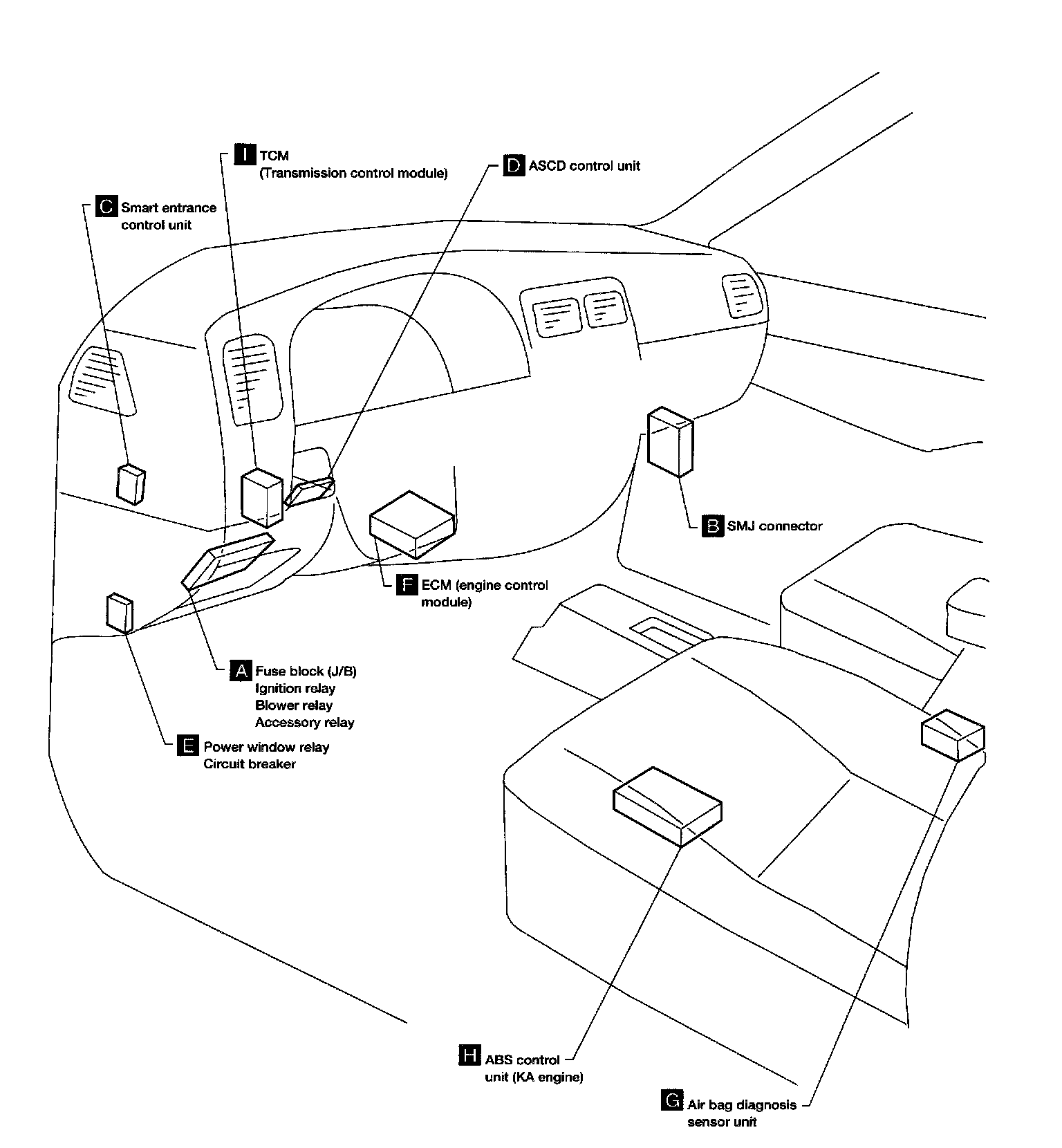

Passenger Compartment - Component Locations Overview:

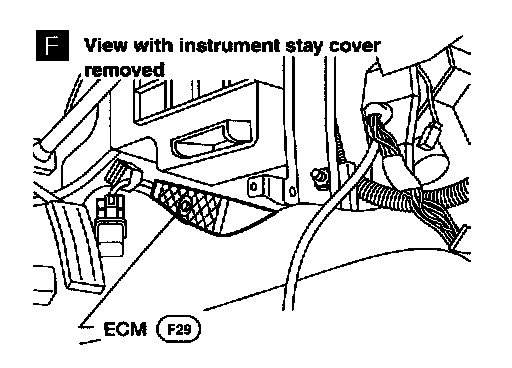

Component View F:

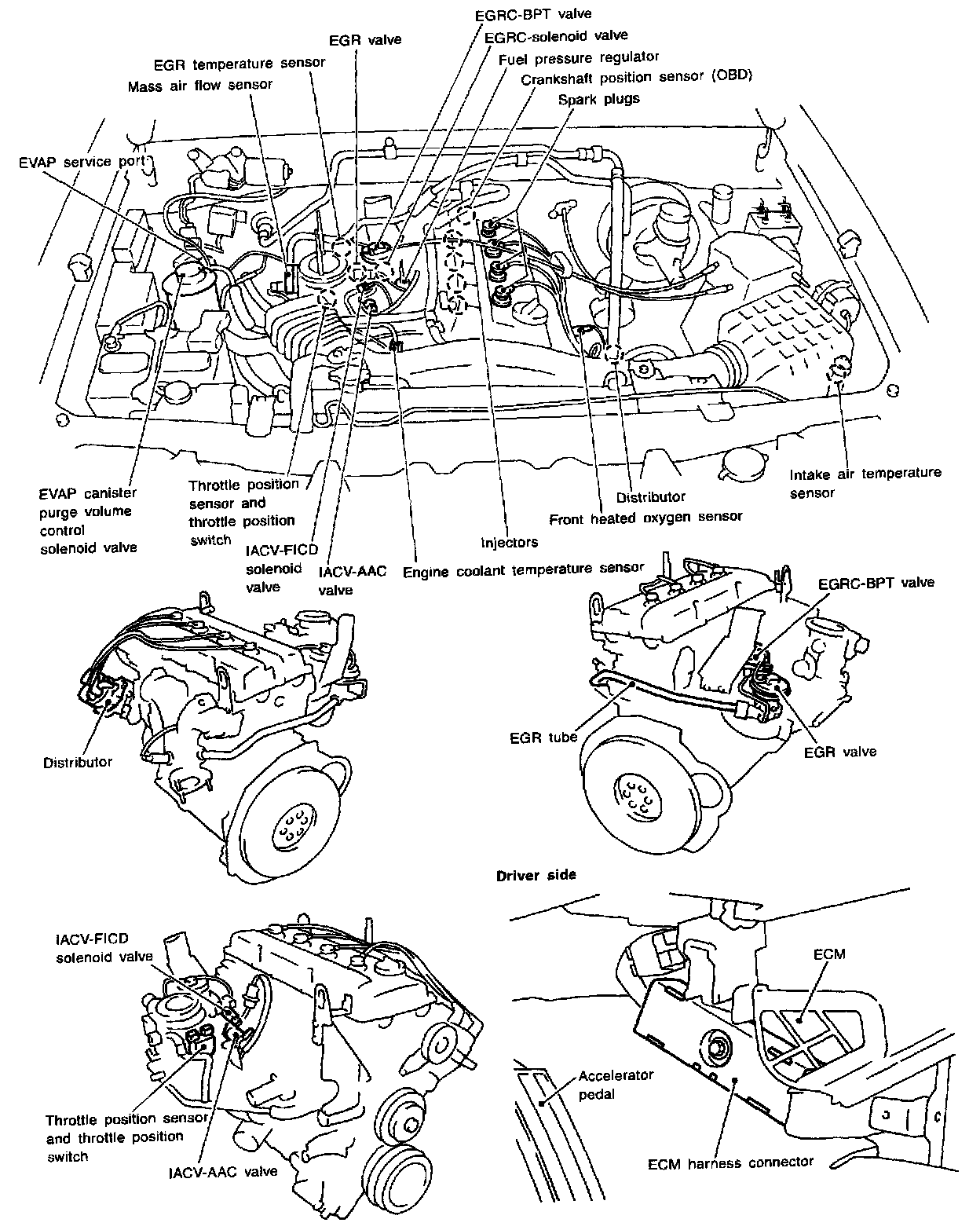

Engine Control Component Parts Location Part 1:
