Component Testing Procedures

COMPONENT INSPECTION

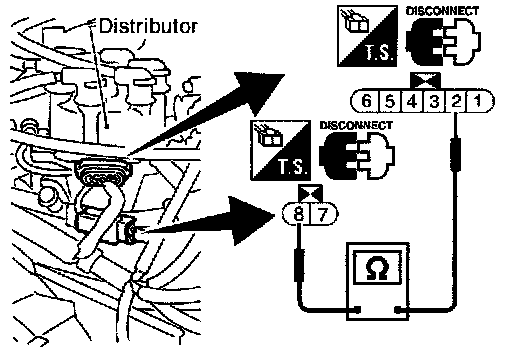

1. Disconnect camshaft position sensor & power transistor harness connector and ignition coil harness connector.

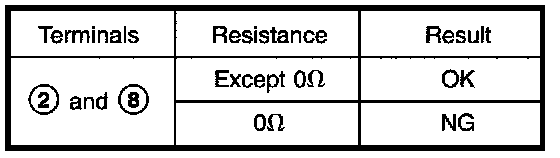

2. Check power transistor resistance between terminals (2) and (8).




If NG, replace distributor assembly.
