Engine Control Module: Testing and Inspection

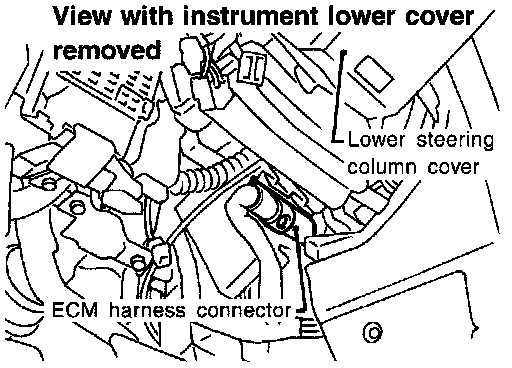

ECM Harness Connector:

1. ECM is located behind the glove box. For this inspection:
- remove the glove box bucket.
- Remove lower finisher panel by reaching through the glove box and releasing the spring clips.

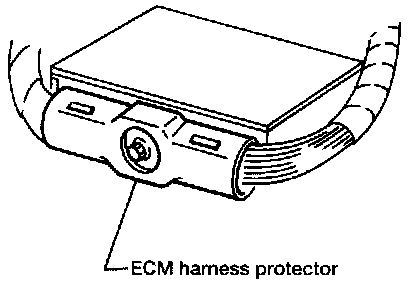

ECM Harness Protector:

2. Remove ECM harness protector

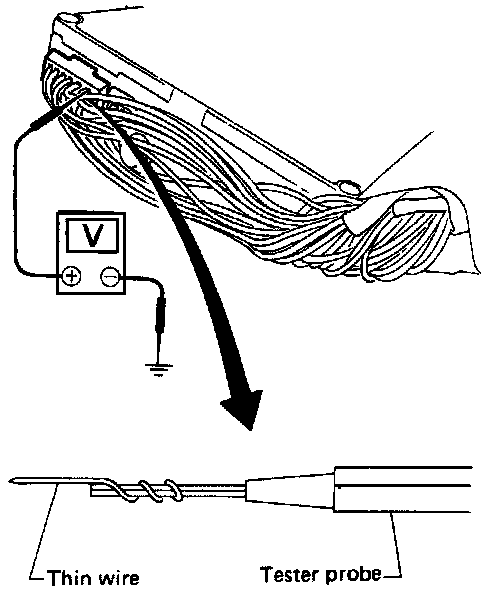

Tester Probe:

3. Perform all voltage measurements with the connectors connected. Extend tester probe as shown to perform tests easily.
- Open harness securing clip to make testing easier.
- Use extreme care not to touch 2 pins at one time.
- Data is for comparison and may not be exact.

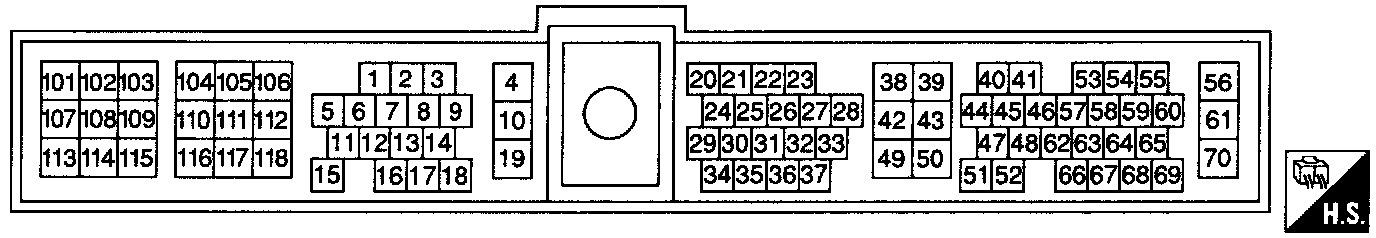

ECM Harness Connector Terminals:

ECM HARNESS CONNECTOR TERMINAL LAYOUT

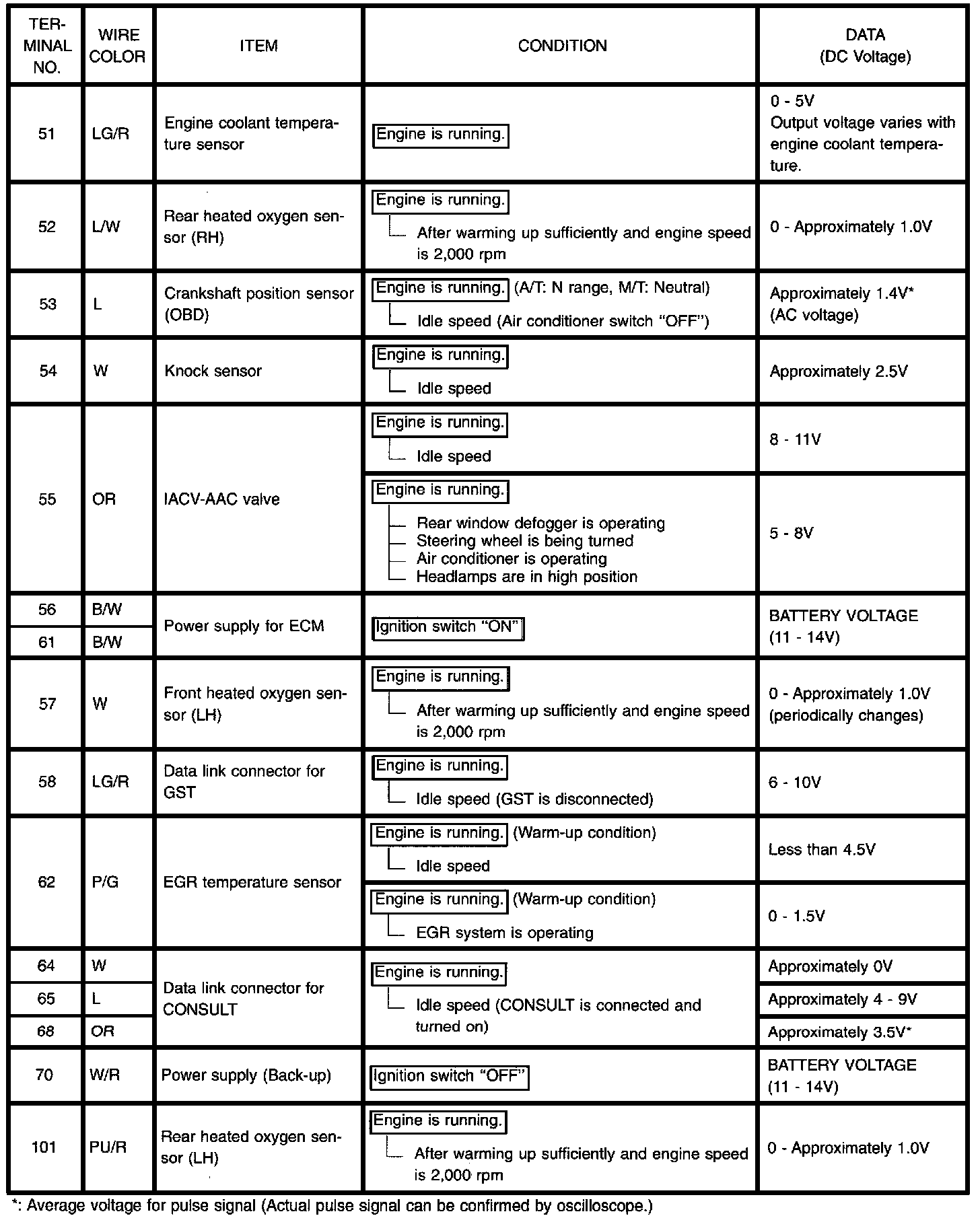

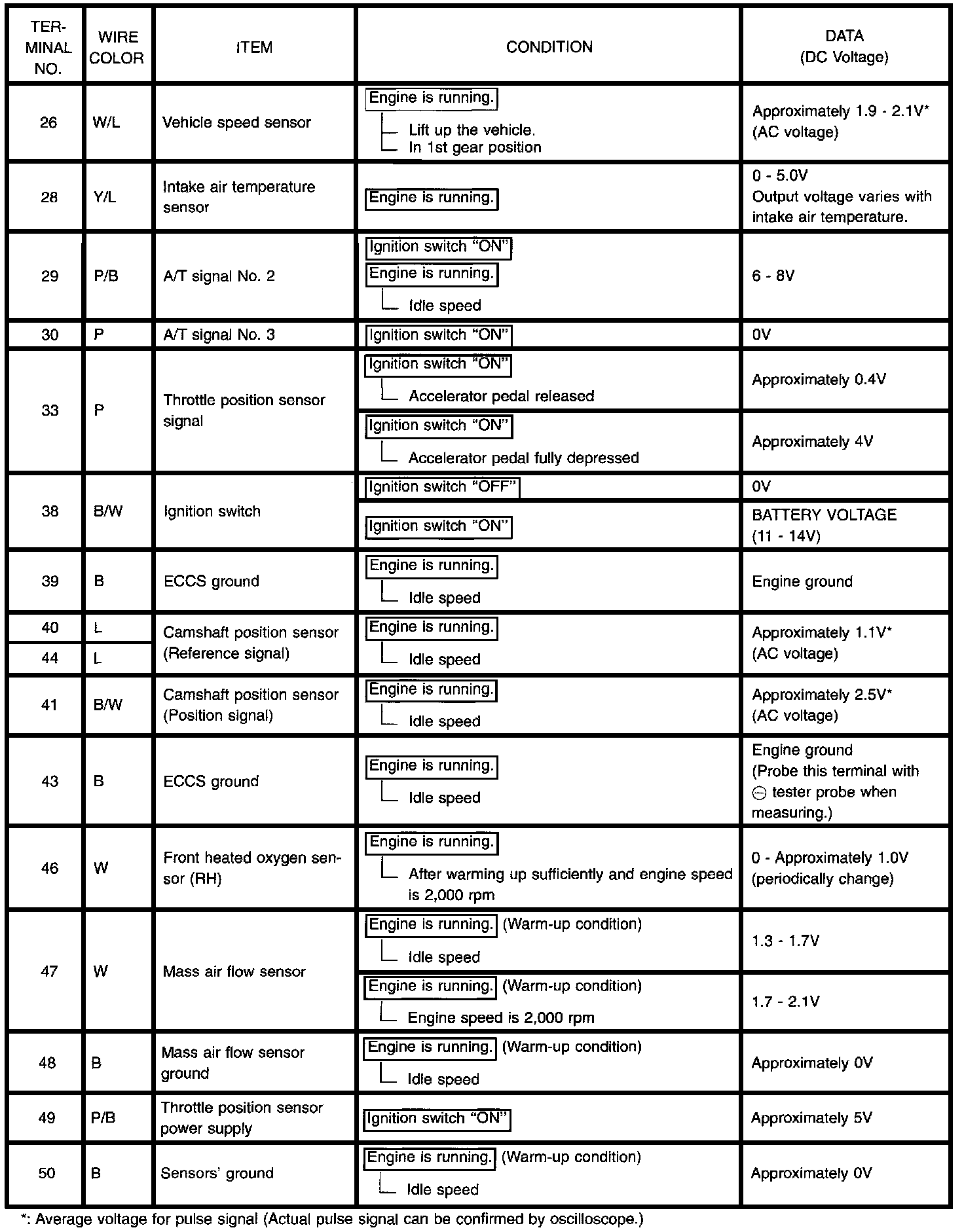

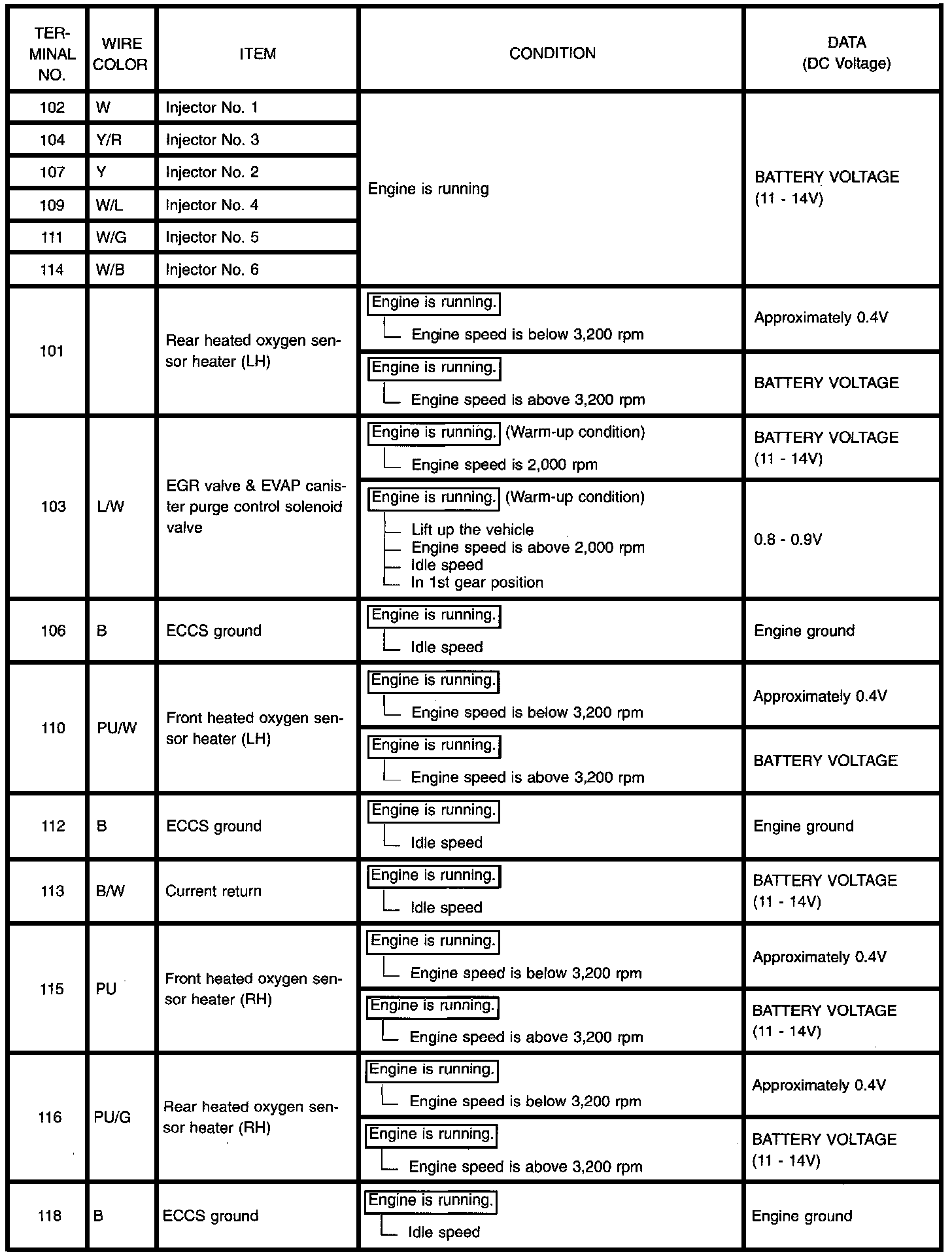

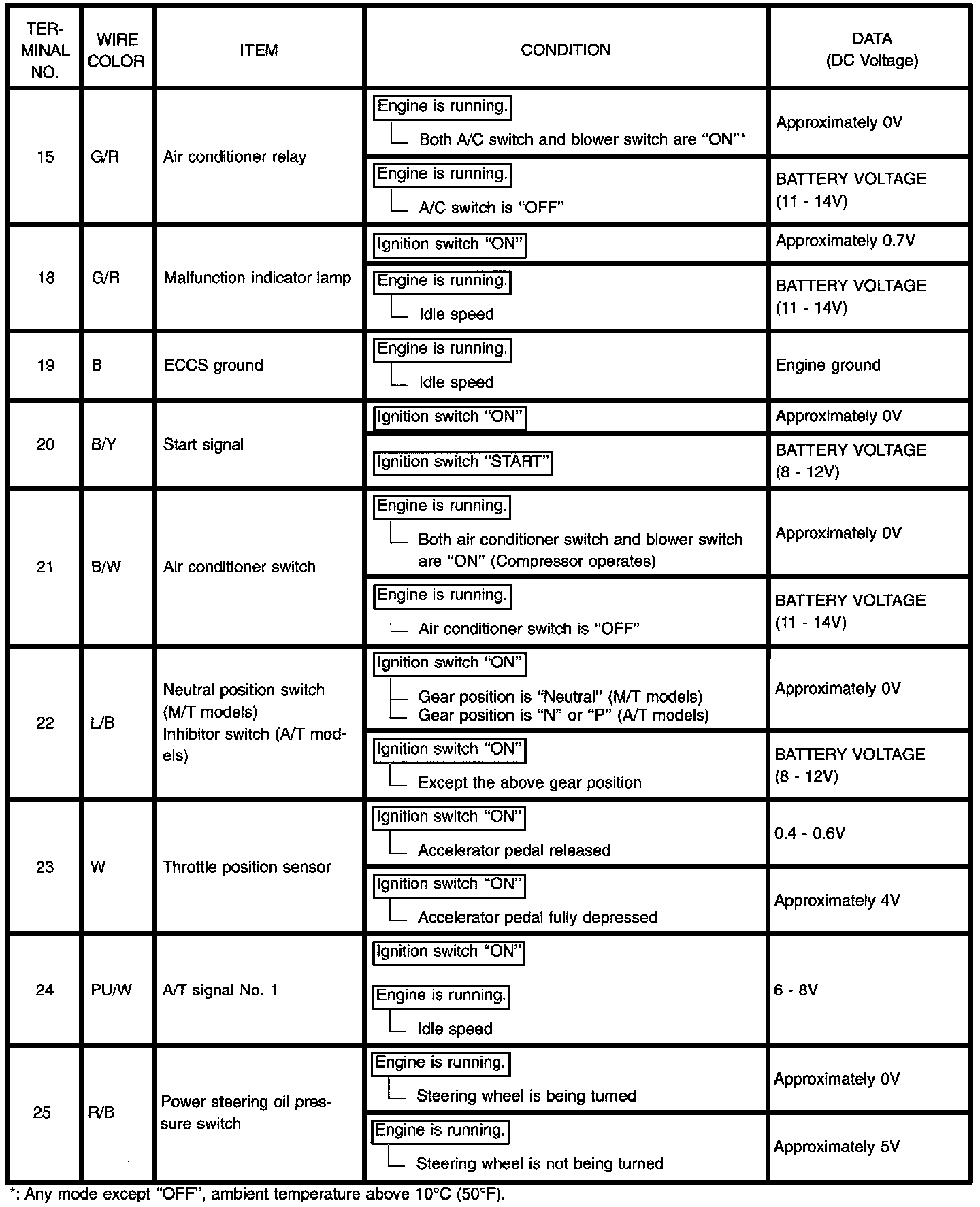

ECM Inspection Tables:

ECM Inspection Tables:

ECM Inspection Tables:

ECM Inspection Tables:

ECM Inspection Tables:

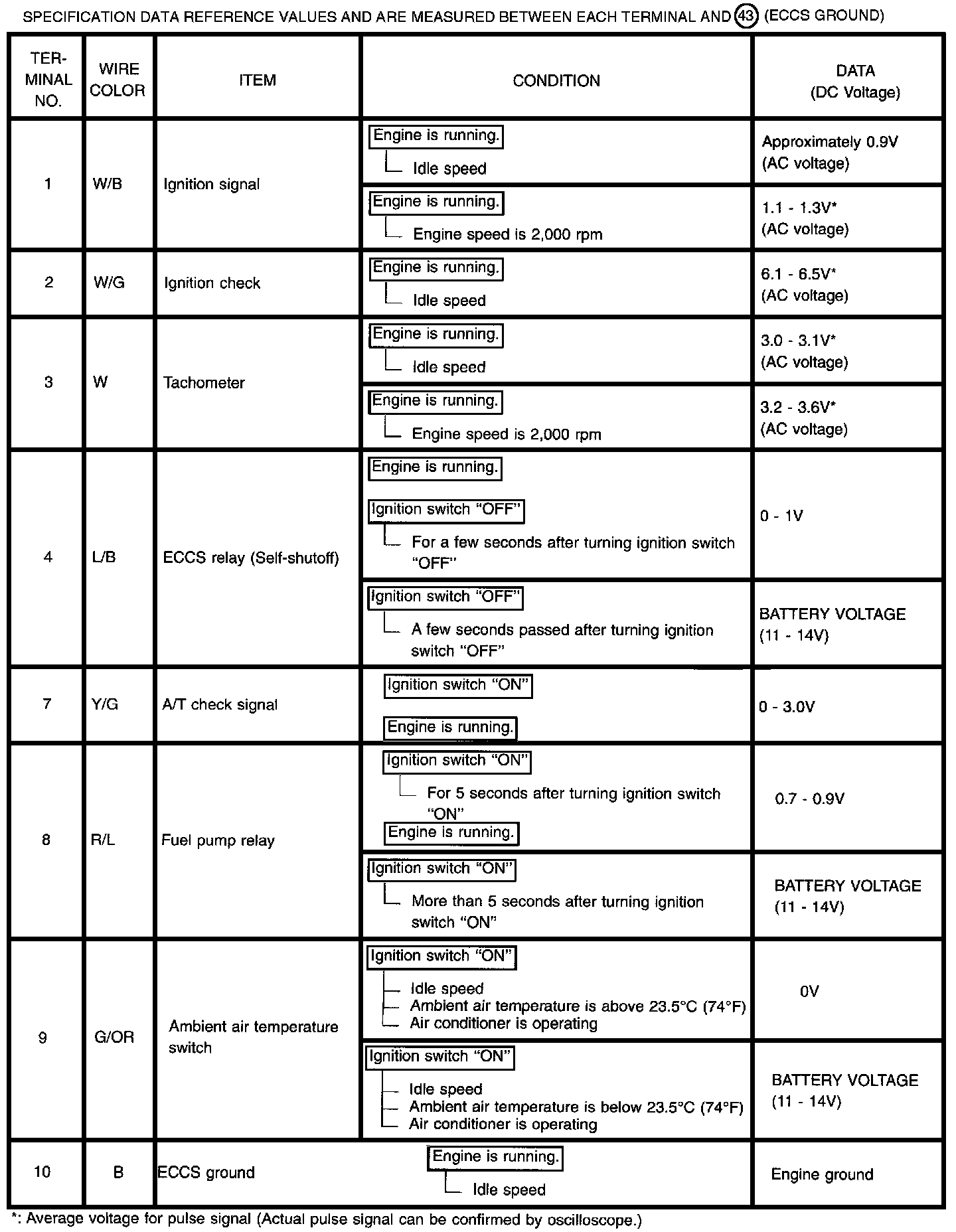

ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and (43) (ECCS ground).
