Ignition Coil (With Built-In Ignition Power Transistor) Check

Check by the following procedure, and replace if there is a malfunction.

SECONDARY COIL RESISTANCE CHECK

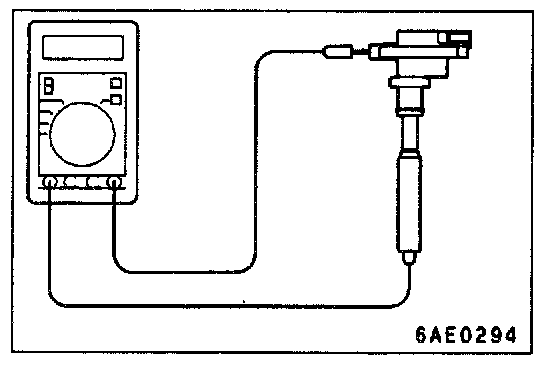

Measure the resistance between the high-voltage terminals of the ignition coil.

Standard value: 14 - 21 kOhms
