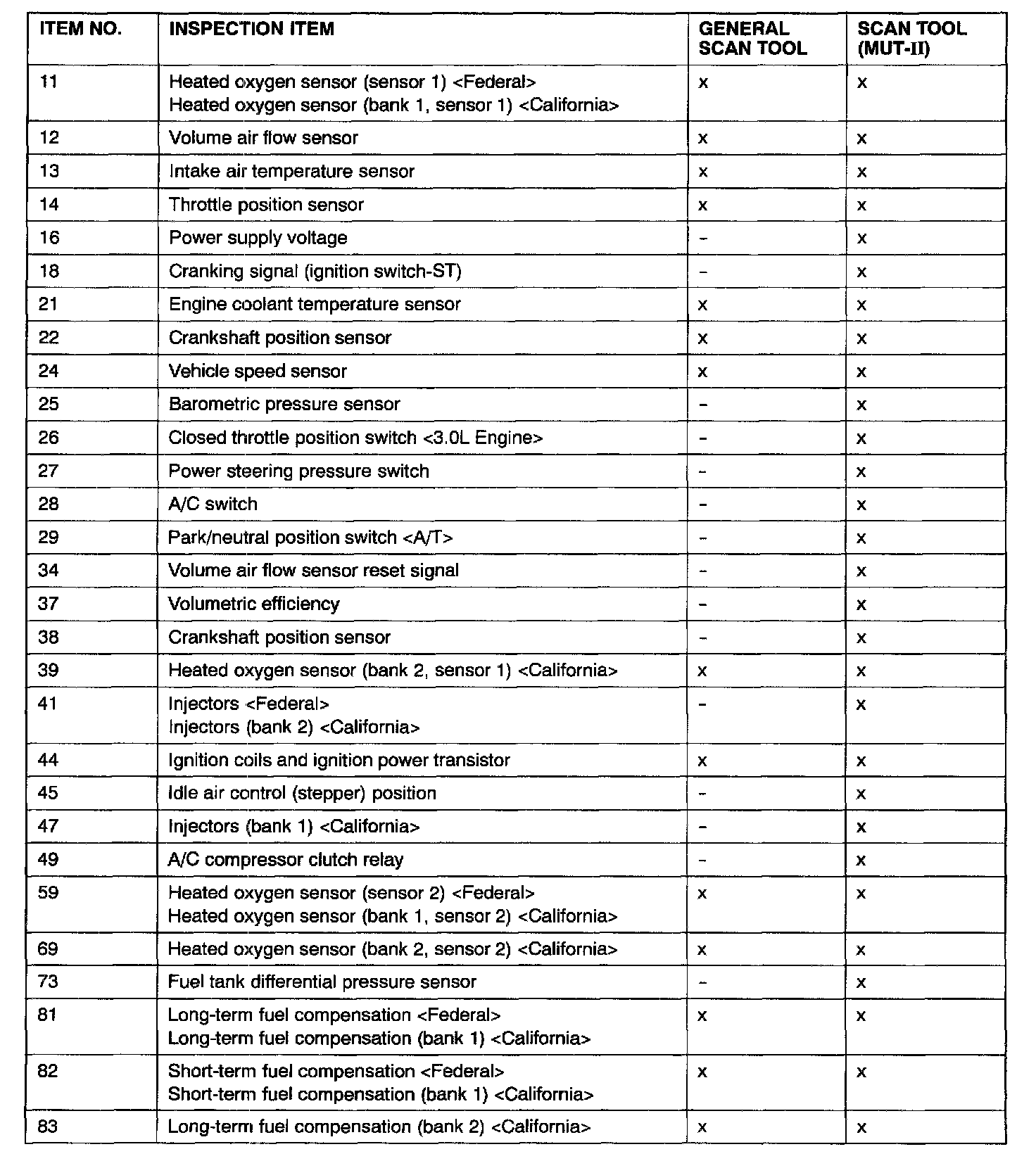

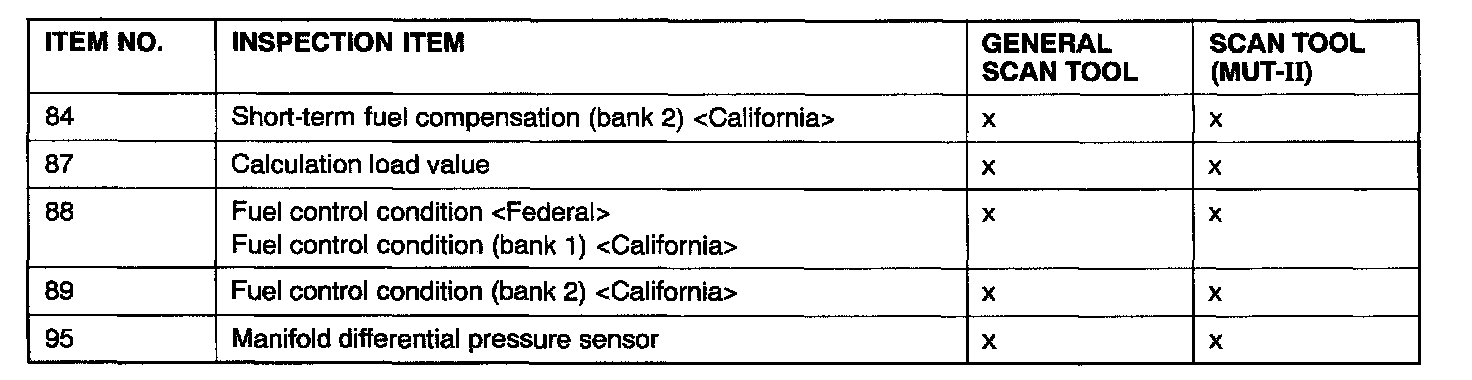

DATA LIST REFERENCE TABLE
CAUTION
:
-
When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
-
Driving tests always need two persons: one driver and one observer.
