Data List Reference Table & Normal Scan Data Values

NORMAL SCAN DATA VALUES

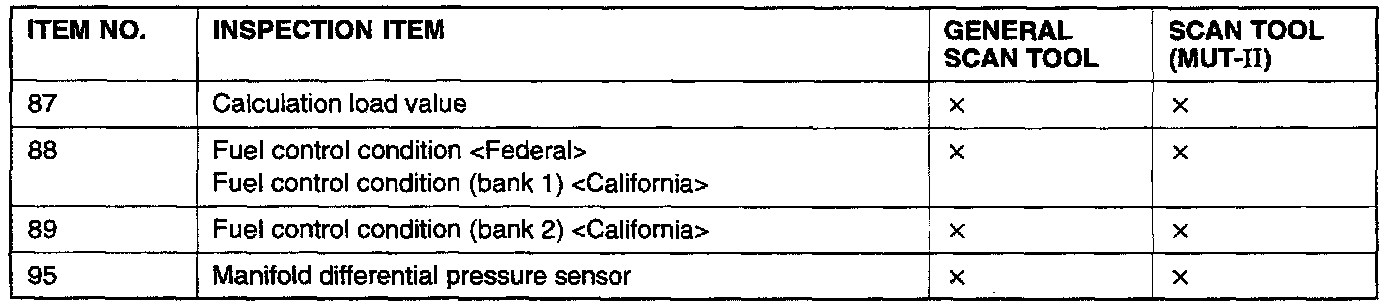

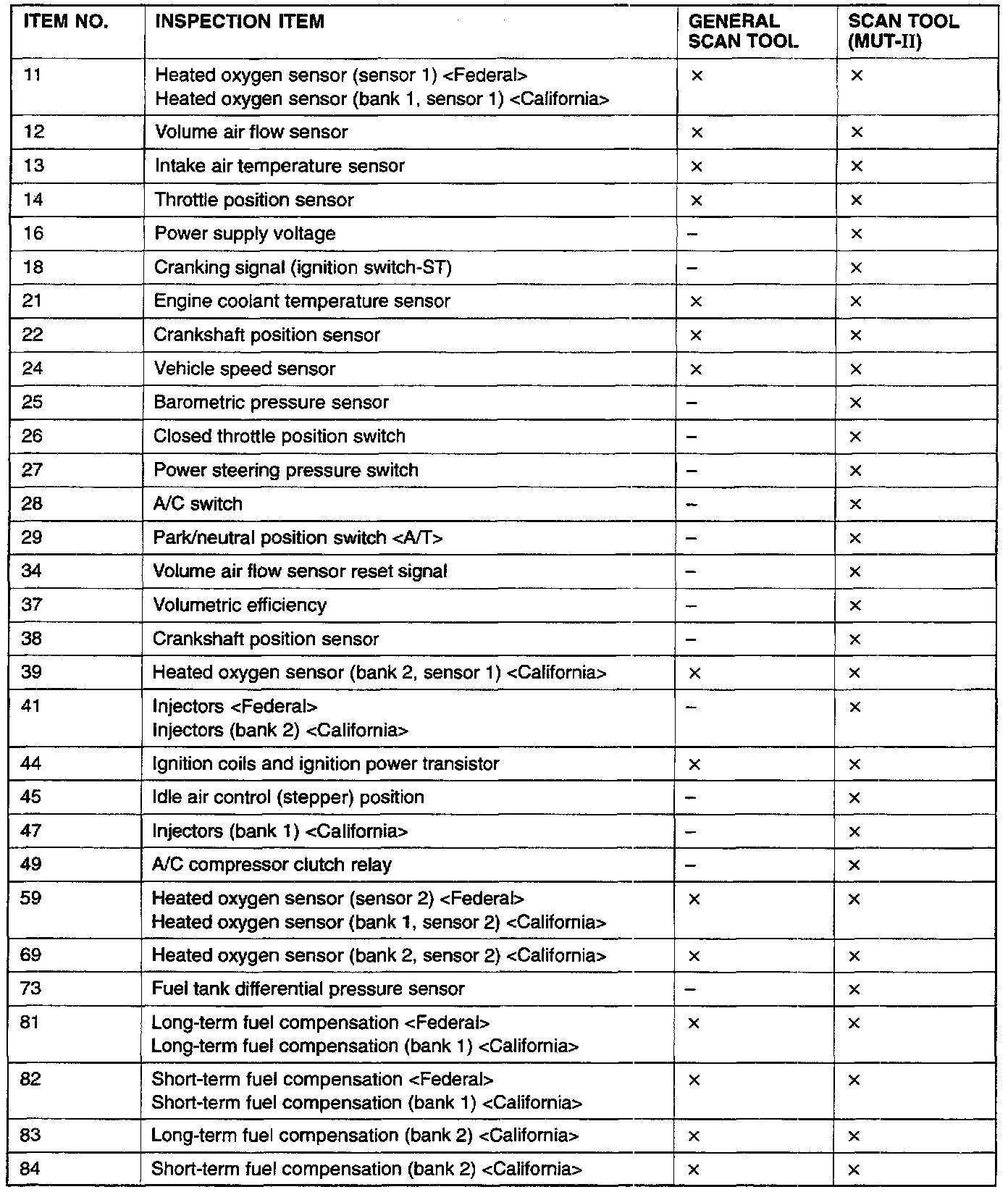

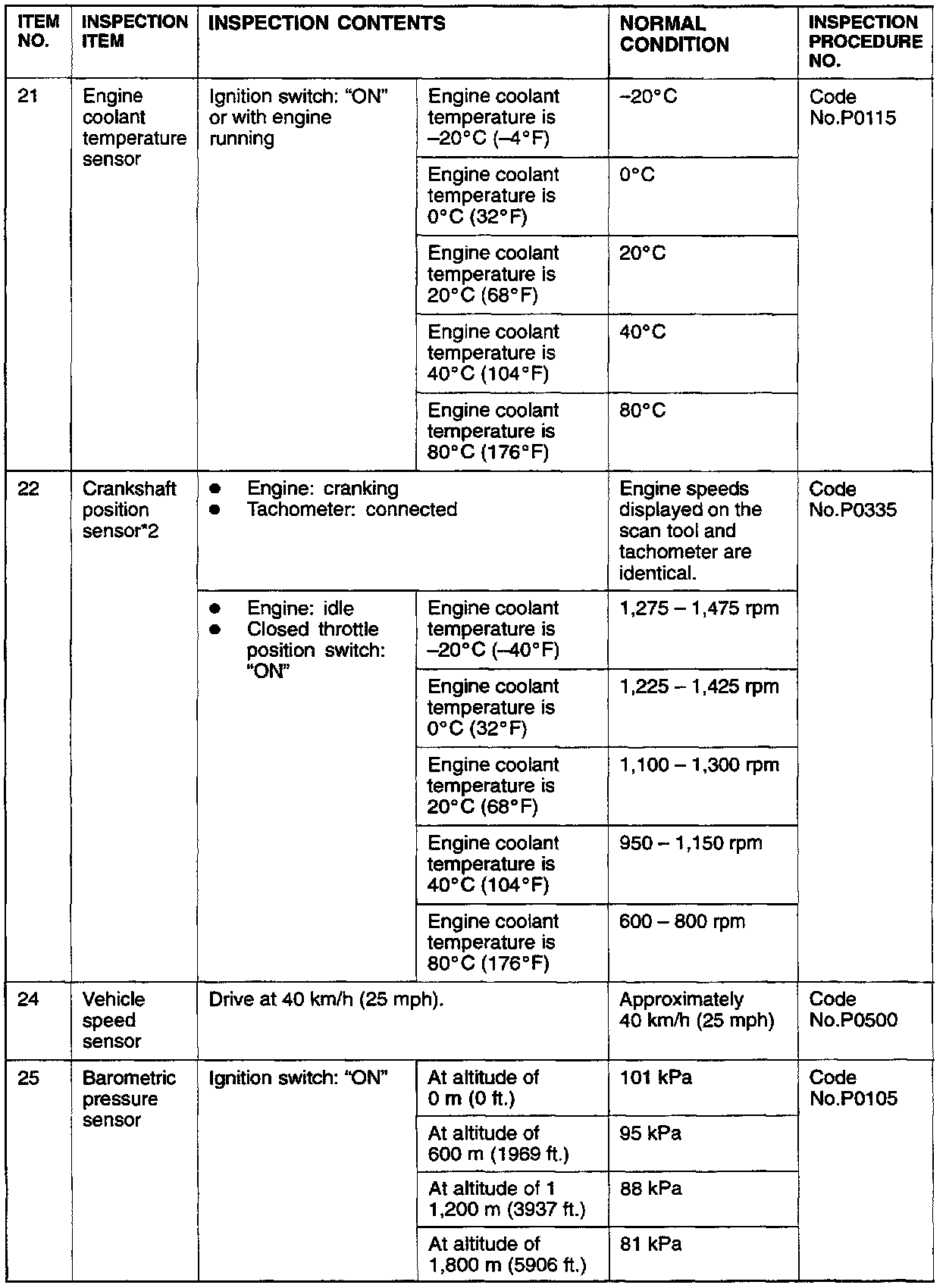

DATA LIST REFERENCE TABLE




PART 1 OF 2




PART 2 OF 2

NOTE:
*1: In a new vehicle [driven approximately 500 km (311 mile) or less], the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency
*2: If the idle speed is lower than the standard value on a very cold engine (approximately -20°C (-4°F) even when the IAC motor is fully opened, the air volume limiter built in the throttle body could be defective.
*3: The closed throttle position switch normally turns OFF when the voltage of the throttle position sensor is 0.05-0.10 volt higher than the voltage at the idle position. If the closed throttle position switch turns back ON after the throttle position sensor voltage has risen by 0.1 volt and the throttle valve has opened, the closed throttle position switch and the throttle position sensor need to be adjusted.
*4: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.
*5: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10% longer than the standard time.
*6: In a new vehicle [driven approximately 500 km (311 mile) or less], the step of the stepper motor is sometimes 30 steps greater than the standard value.
*7: Sensor 1 indicates the sensor mounted at a position closest to the engine and sensor 2 indicates the sensor mounted at the position second close to the engine.
*8: Bank 1 indicates the right bank cylinder and bank 2 indicates the left bank cylinder.

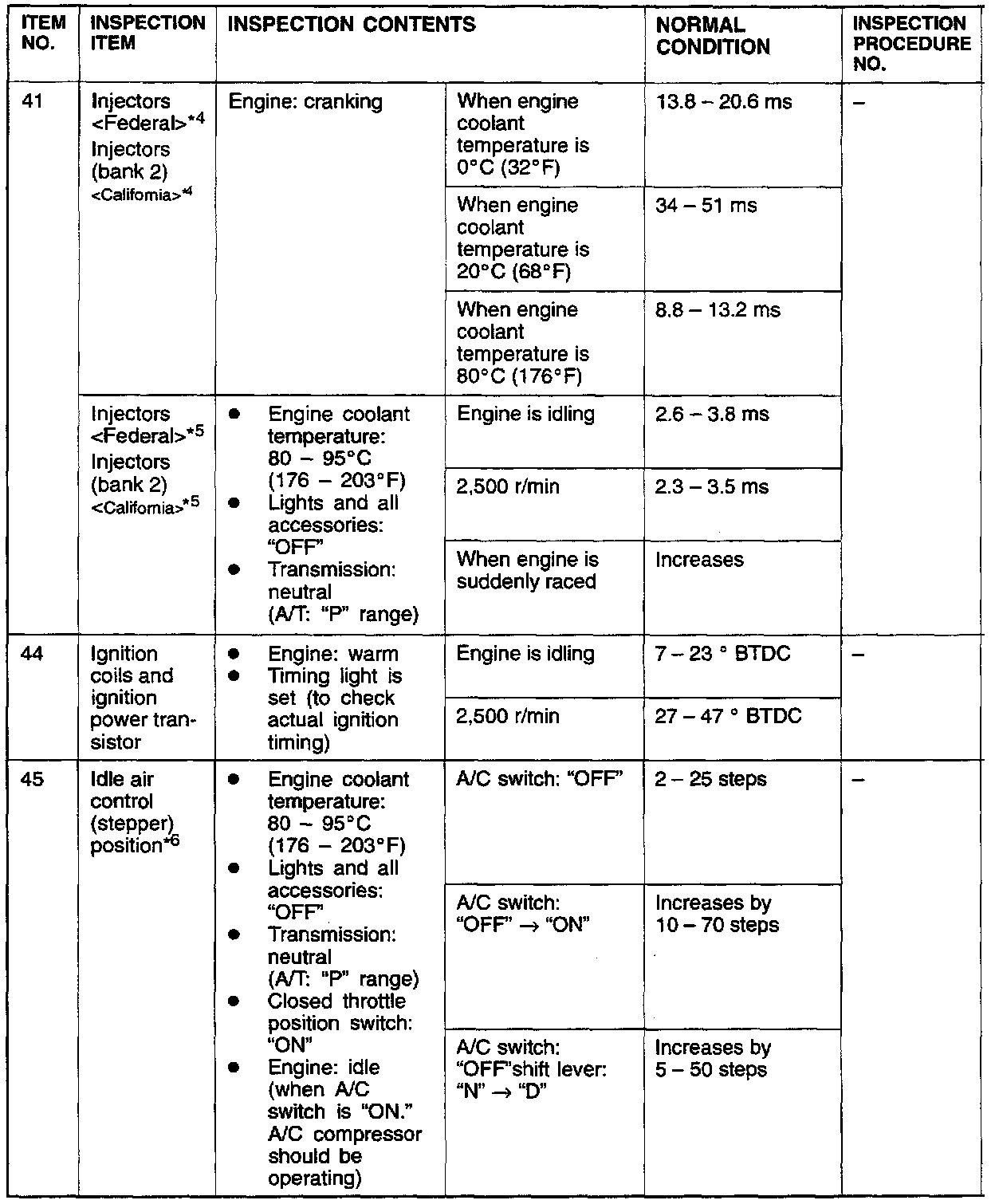

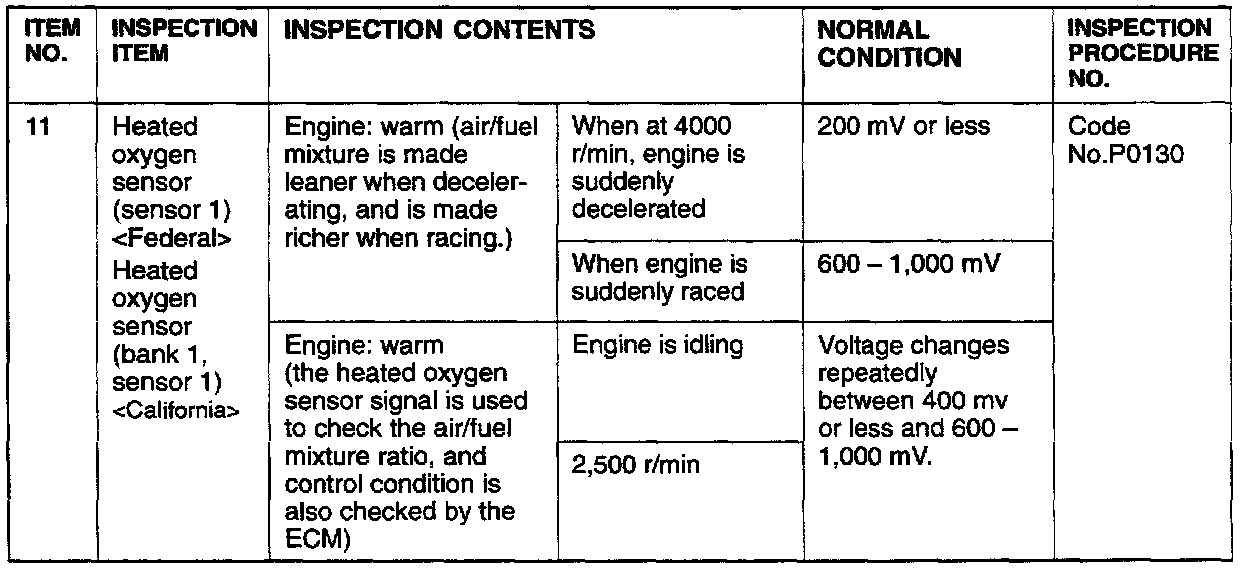

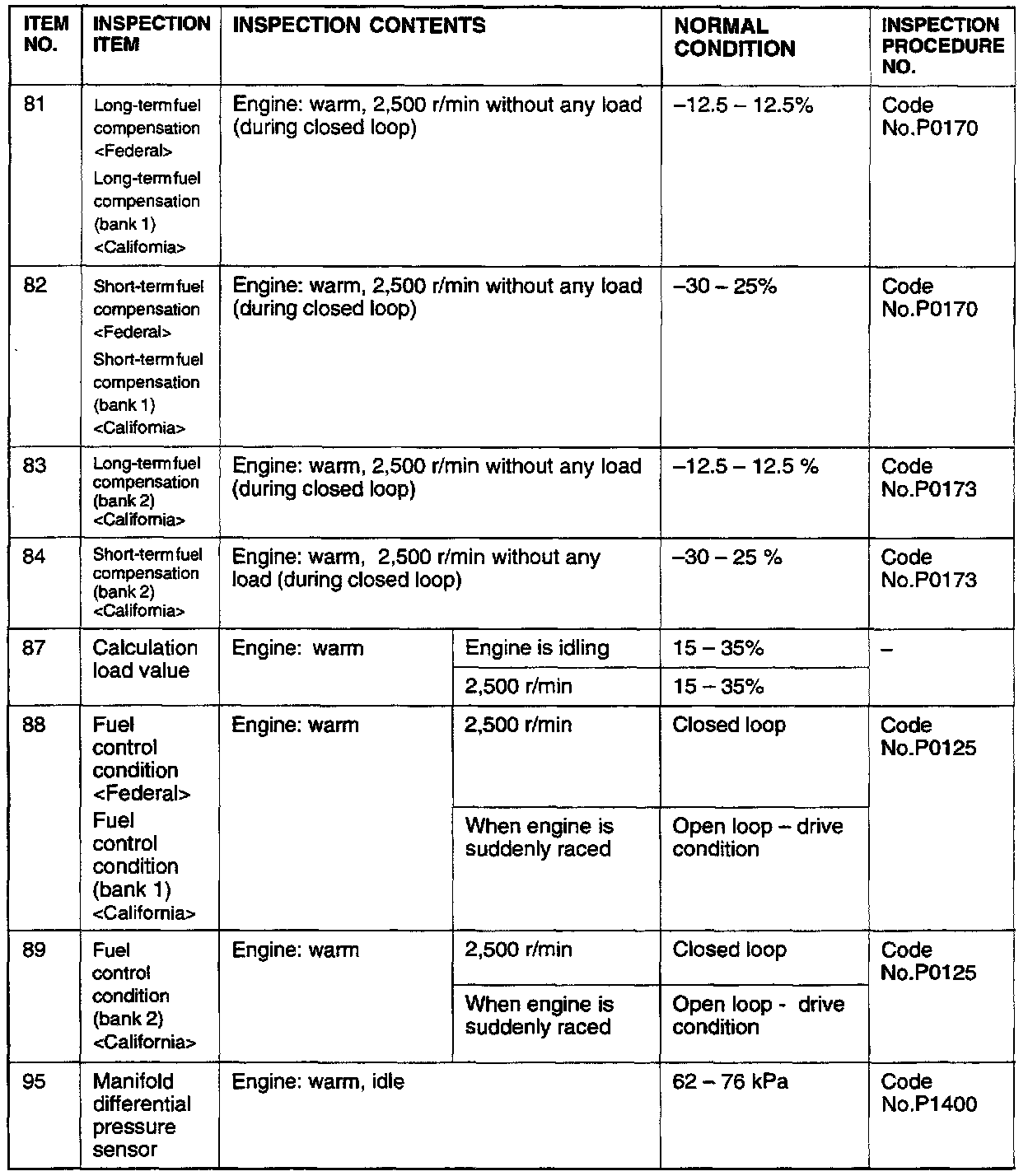

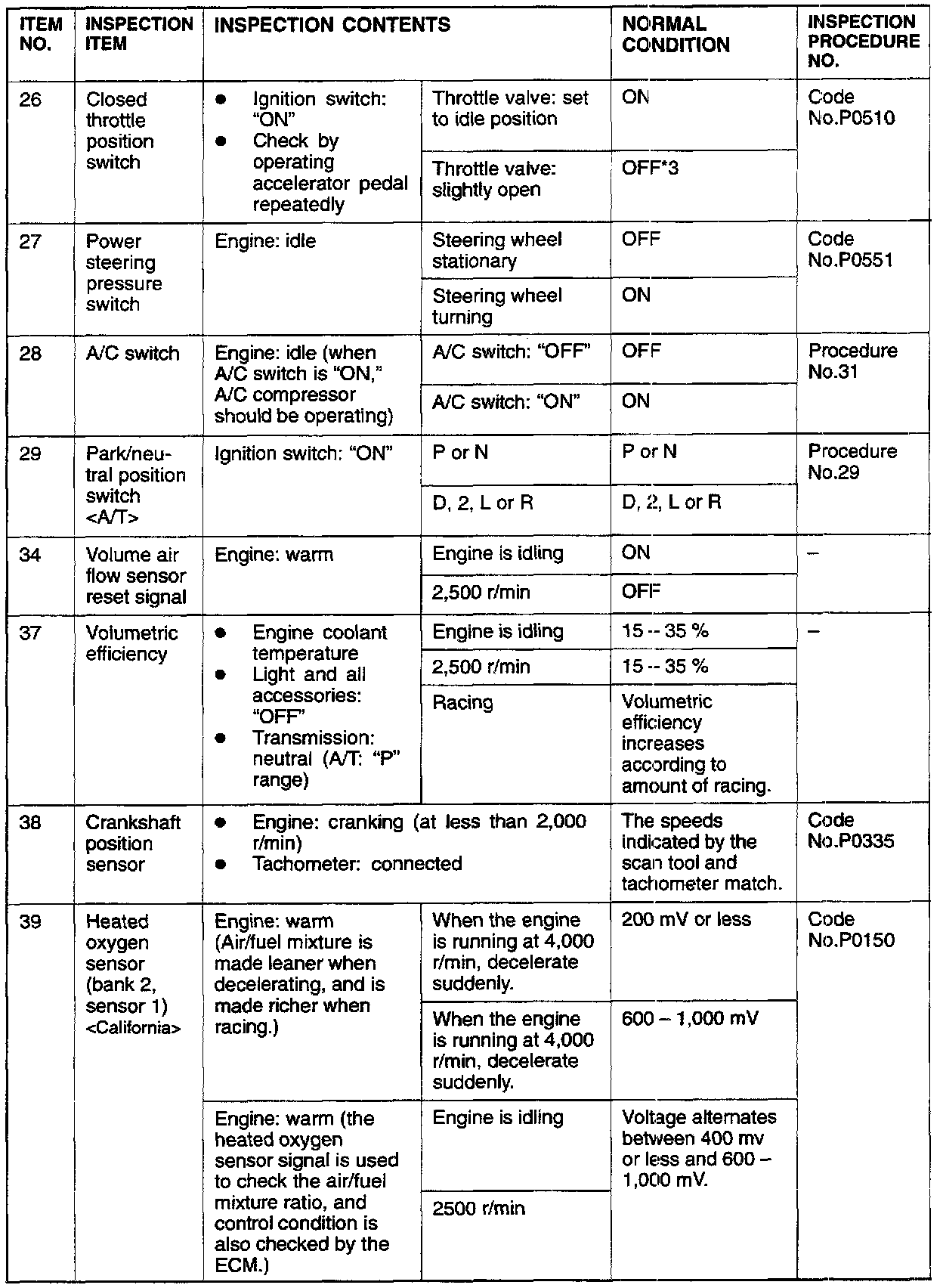

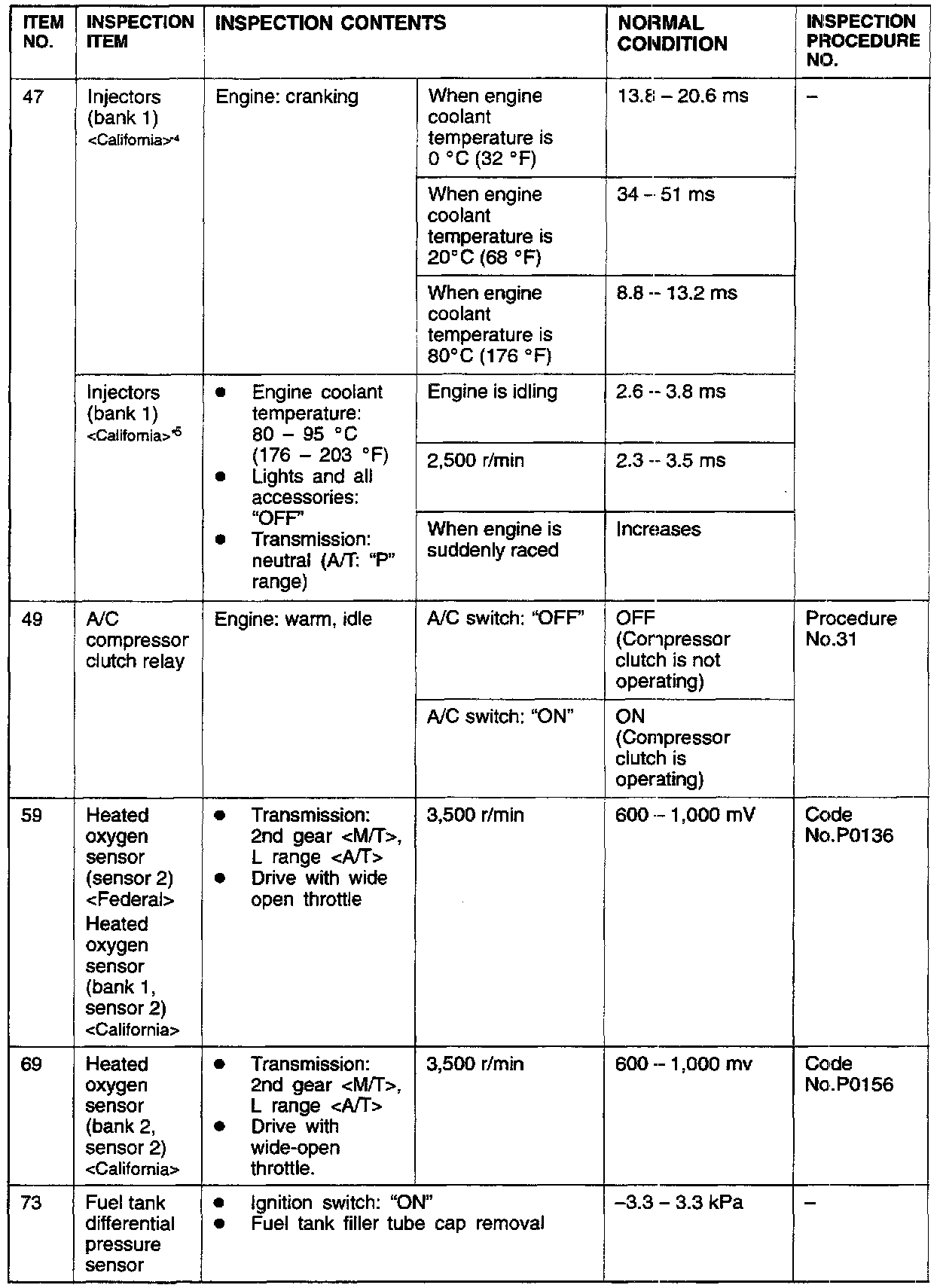

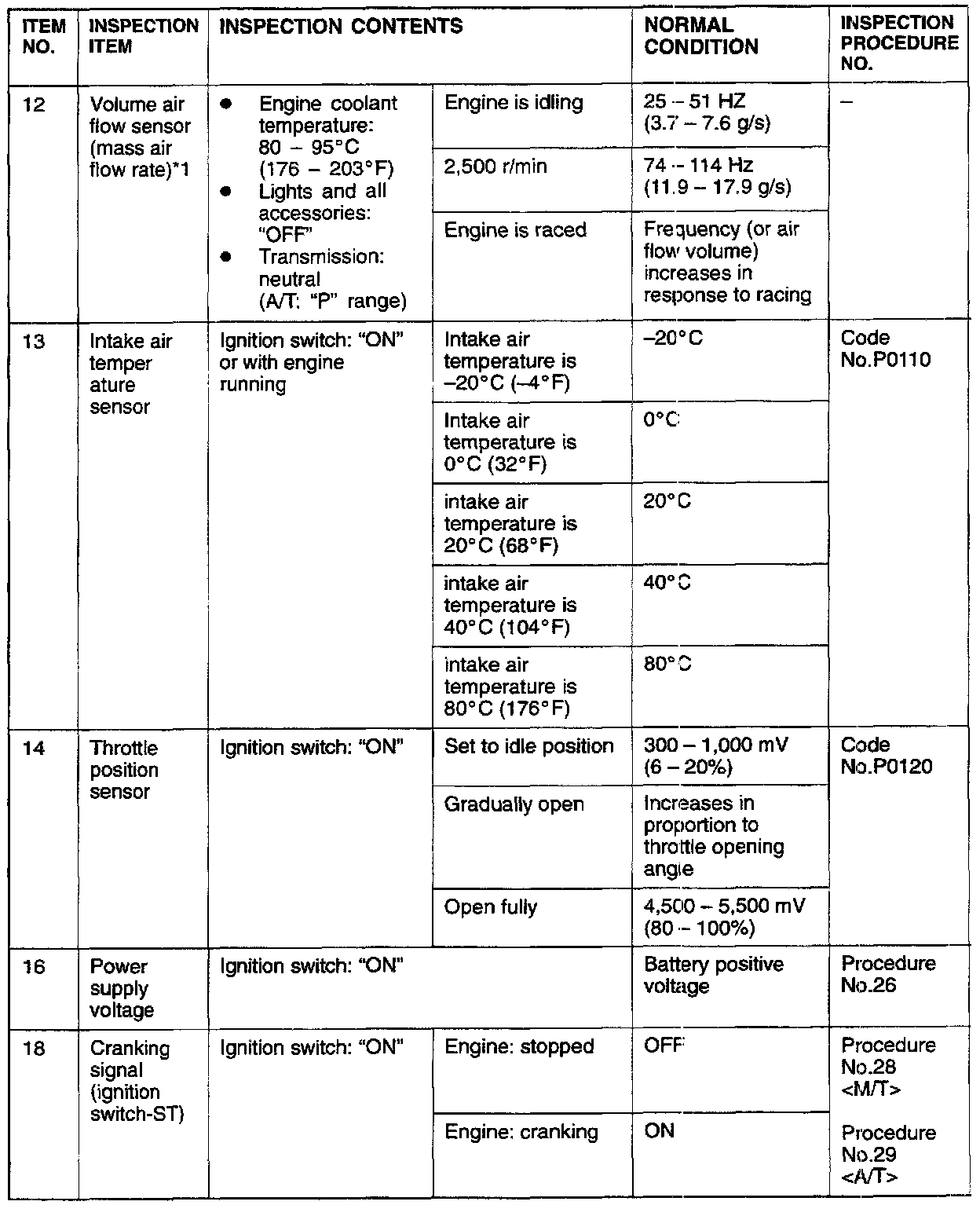

SCAN DATA VALUES

CAUTION: Driving tests always need two persons: One driver and one observer. When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.




PART 1 OF 7




PART 2 OF 7




PART 3 OF 7




PART 4 OF 7




PART 5 OF 7




PART 6 OF 7




PART 7 OF 7
