Antilock Brake System

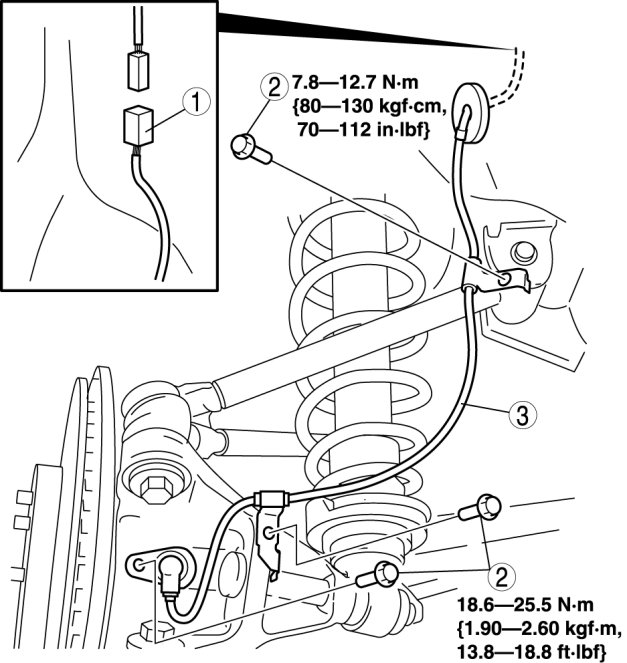

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

1. Remove the trunk side trim.

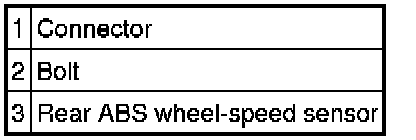

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
